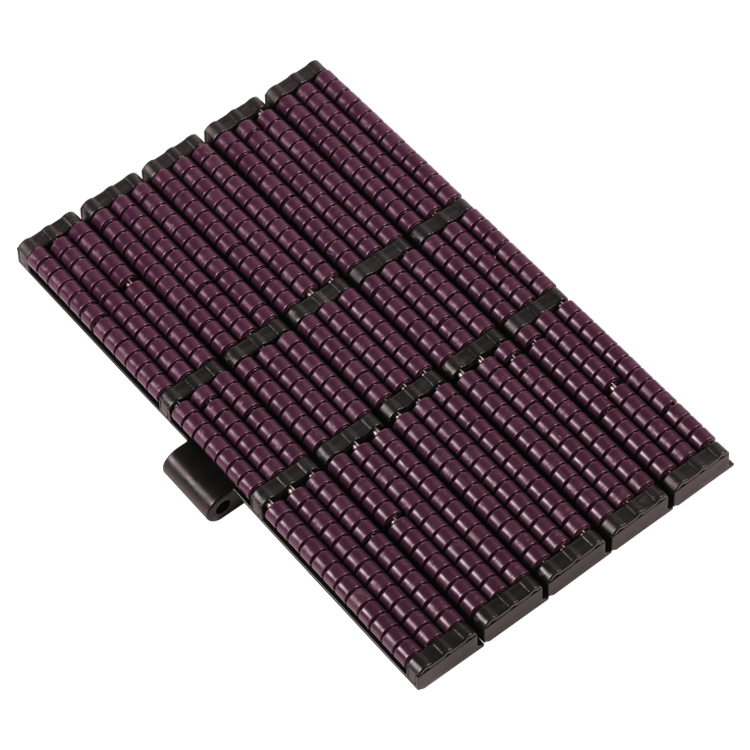

822PRRss straight running roller chains
Parameter
| Chain Type | Plate Width | Reverse Radius(min) | Roller Width | Weight | |
| mm | inch | mm | mm | Kg/m | |
| 822-PRRss-k750 | 190.5 | 7.5 | 255 | 174.5 | 5.5 |
| 822-PRRss-k1000 | 254.0 | 10.0 | 255 | 238 | 7.2 |
| 822-PRRss-k1200 | 304.8 | 12.0 | 255 | 288.8 | 8.4 |
Advantages
Suitable for cardboard boxes, film packages and other products which will accumulate on the straight conveying line body.
When conveying material accumulation, can effectively avoid the generation of hard friction.

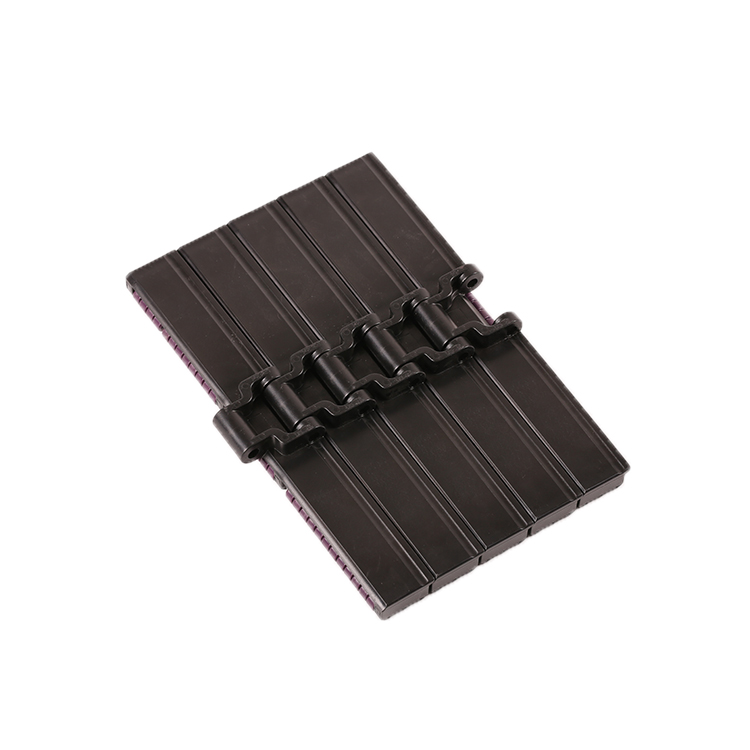

The top is roller multi-part buckle structure, the roller runs smoothly; Bottom hinged pin connection, can increase or decrease the chain joint.
