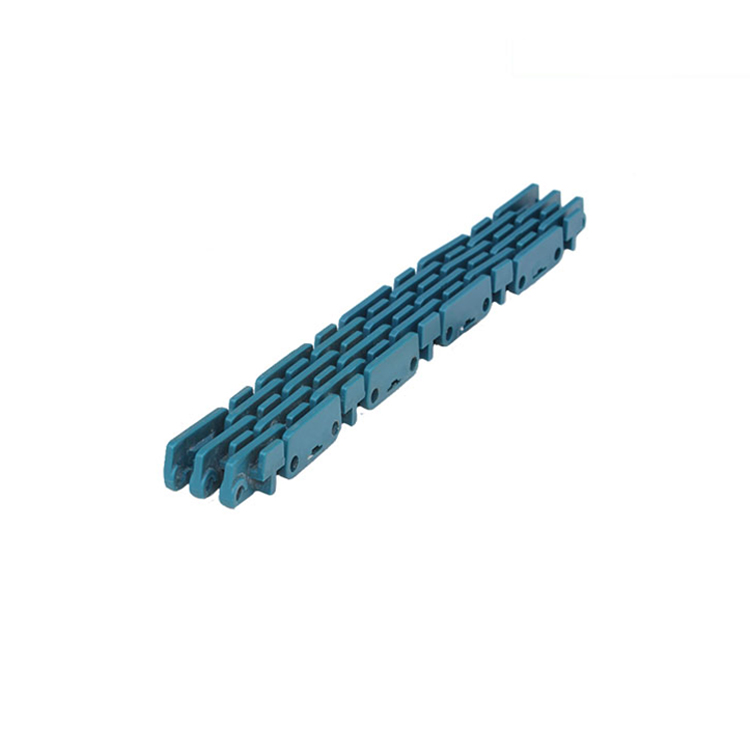

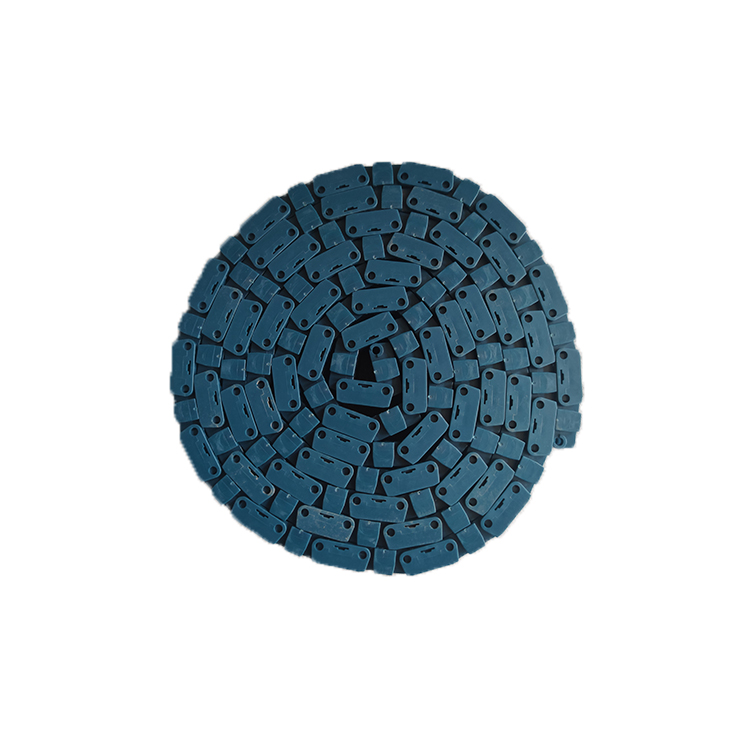

1000 Modular Plastic Conveyor Narrow Chains

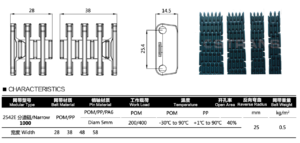

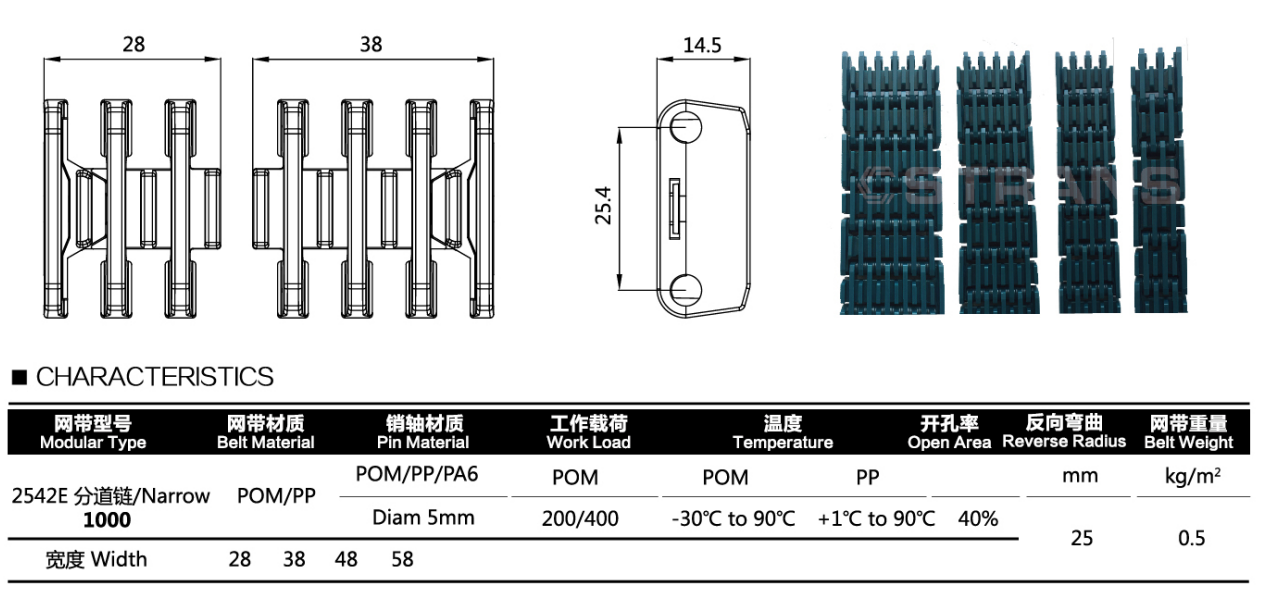

Parameter
|
Modular Type |
1000 Narrow Chains |
|
Standard Width(mm) |
28 38 48 58 |
|
Pitch |
25.4 |
|
Belt Material |
POM/PP |
|
Pin Material |
POM/PP/PA6 |
|
Pin Diameter |
5mm |
|
Work Load |
POM:200/400 |
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
Open Area |
40% |
|
Reverse Radius(mm) |
25 |
|
Belt Weight(kg/㎡) |
0.5 |
63 Machined Sprockets
| Model Number | Teeth |
Pitch Diametet(mm) |
Outside Diameter |
Bore Size |
Other Type |
||
| mm | Inch | mm | Inch | mm |
Available on Request By Machined |
||
| 3-2542-12T |
12 |
98.1 |
3.86 |
98.7 | 3.88 | 25 30 35 40*40 | |
| 3-2542-16T |
16 |
130.2 |
5.12 |
117.3 | 4.61 | 25 30 35 40*40 | |
| 3-2542-18T |
18 |
146.3 |
5.75 |
146.8 | 5.77 | 25 30 35 40*40 | |
Application
1.Industrial automation line、
2.Food and beverage conveying industry,
3.All kinds of packaging line
4.Chemical industry
5.Aquatic product processing production line
6.Battery manufacturing and production
7.Beverage processing and manufacturing industry
8.Can industry
9.Frozen food production line
10.Agricultural processing industry
11.Electronics industry
12.Rubber and plastic wheel viviparous industry
13.General transportation operations and other operating environment .
Advantage
1.Easy clean
2.Low maintenance cost
3.Wear resistance ,Temperature resistance, Acid and alkali resistance, Antistatic electricity, Corrosion resistance
4.High quality and performance
5.Good after-sale service
6.Factory direct sale price
7.Customization is available
8.Easy operation.
Physical and chemical properties
Acid and alkali resistance (PP) :
1500 flat grid belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic electricity:
The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity. Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Wear per unit area in unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
