7705 Flat Top Modular Plastic Conveyor Belt

Short Description:

7705 flat top modular plastic conveyor belt mainly used for heavy duty glass and PET conveying.recommend to apply in glass manufacturing and auto indsutry.

Product Detail

Product Tags

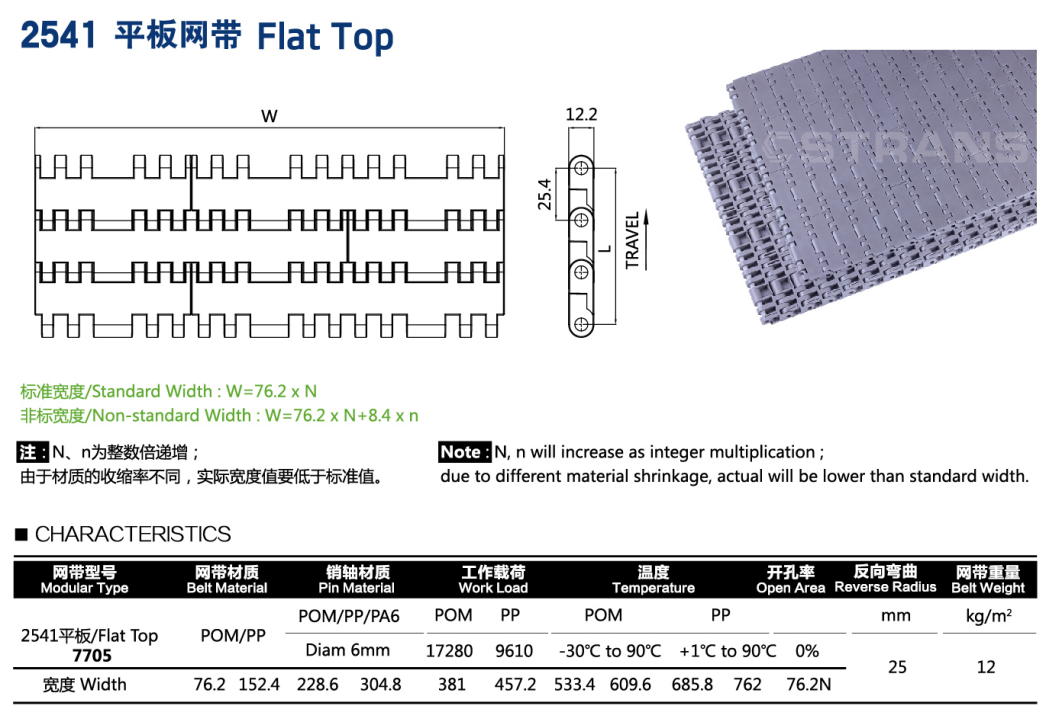

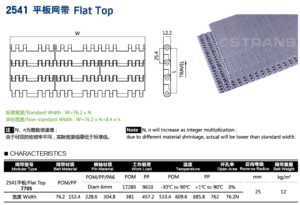

Parameter


Modular Type

7705 Flat Top

Standard Width(mm)

76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2*N

(N,n will increase as integer multiplication;

due to different material shrinkage,Actual will be lower than standard width)

Non-standard Width

W=76.2*N+8.4*n

Pitch

25.4

Belt Material

POM/PP

Pin Material

POM/PP/PA6

Pin Diameter

6mm

Work Load

POM:17280 PP:9610

Temperature

POM:-30C°~ 90C° PP:+1C°~90C°

Open Area

0%

Reverse Radius(mm)

25

Belt Weight(kg/㎡)

12

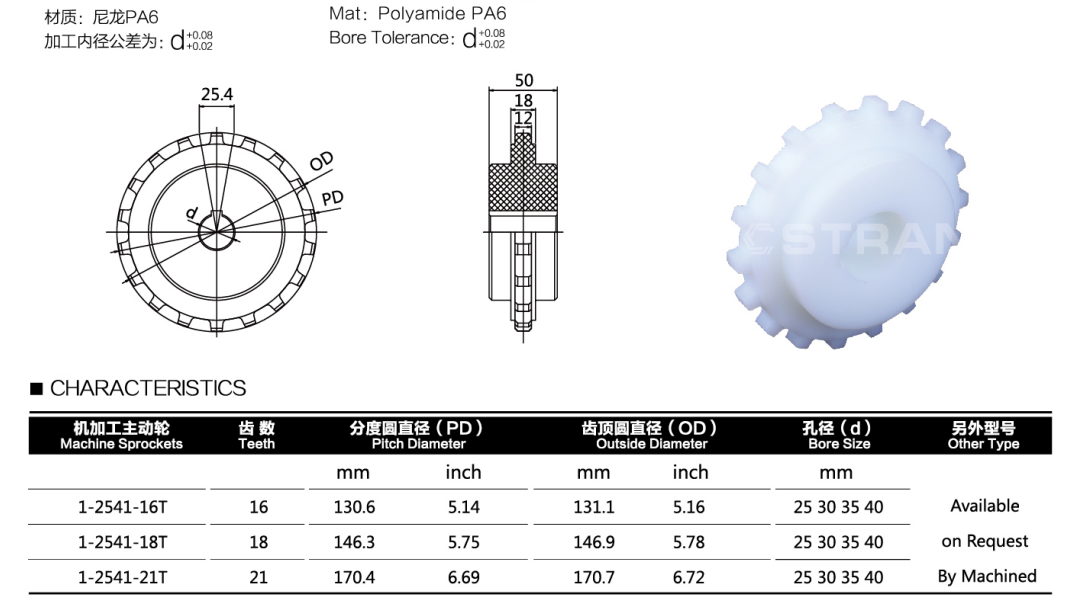

7705 Machined Sprockets

Machine

Sprockets

Teeth

Pitch Diametet(mm)

Outside Diameter

Bore Size

Other Type

mm Inch mm Inch mm Available

on Request

By Machined

1-2541-16T

16

130.6

5.14

131.1 5.16 25 30 35 40
1-2541-18T

18

146.3

5.75

146.9 5.78 25 30 35 40
1-2541-21T

21

170.4

6.69

170.7 6.72 25 30 35 40

Application

1.Glass manufacturing                8.Batteries

2.Auto indsutry.                           9.Automobiles

3.Food                                       10.Auto parts

4.Beverage                                11.Tires

5.Beer                                        12.Paper industry

6.Canning                                  13.Other industries

7.Electronics

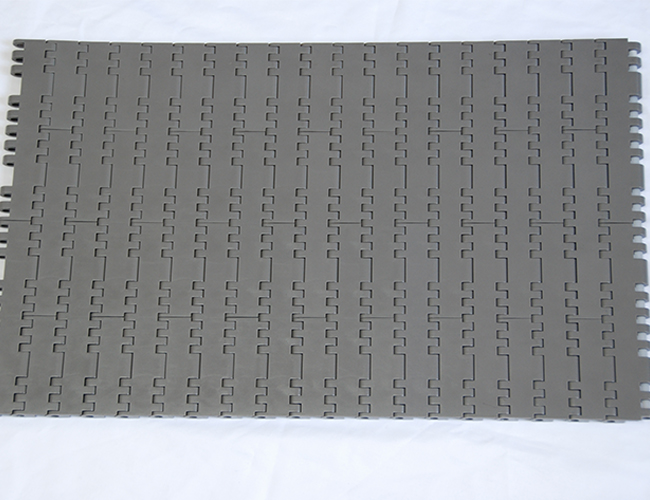

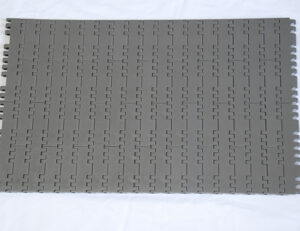

7705-3

Advantage

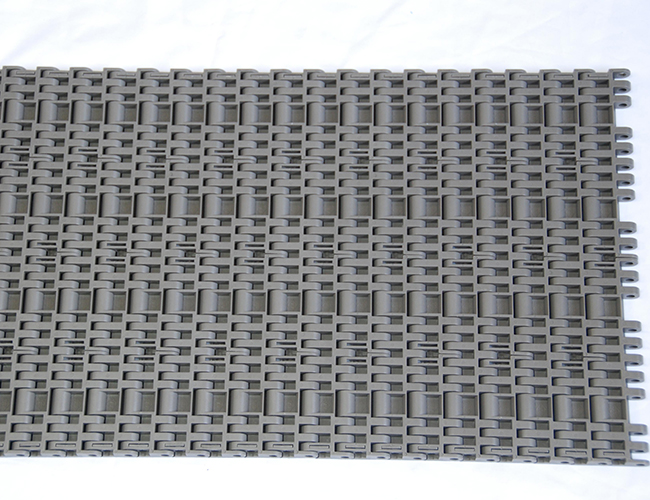

7705-2

1. Easy installation and maintenance

2.Surface fully closed

3. High mechanical strength and wear resistance

4.Color optional

5. High performance

6.Plant direct sale

7.Reliable quality and after-sales service

Physical and chemical properties

Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.

POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.

Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.

Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.

Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
