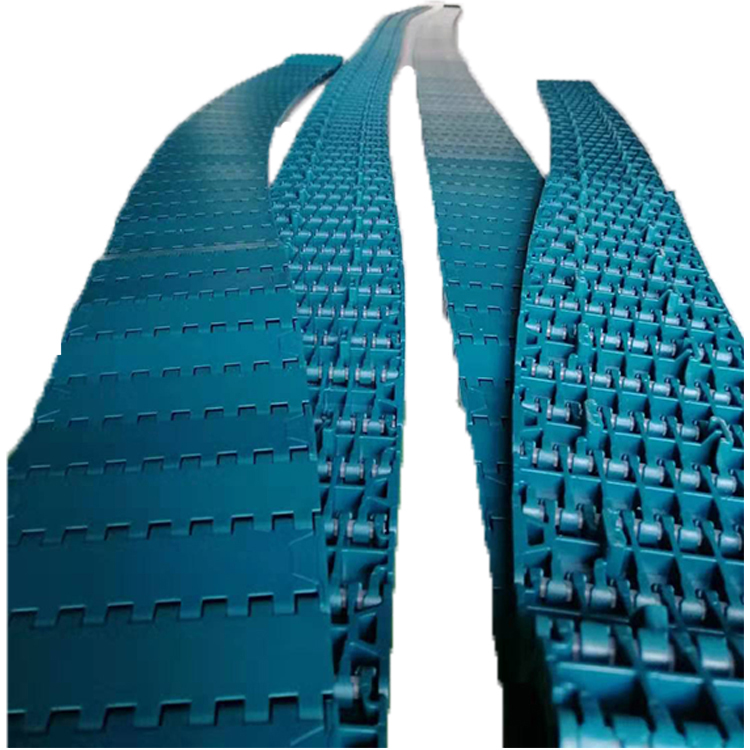

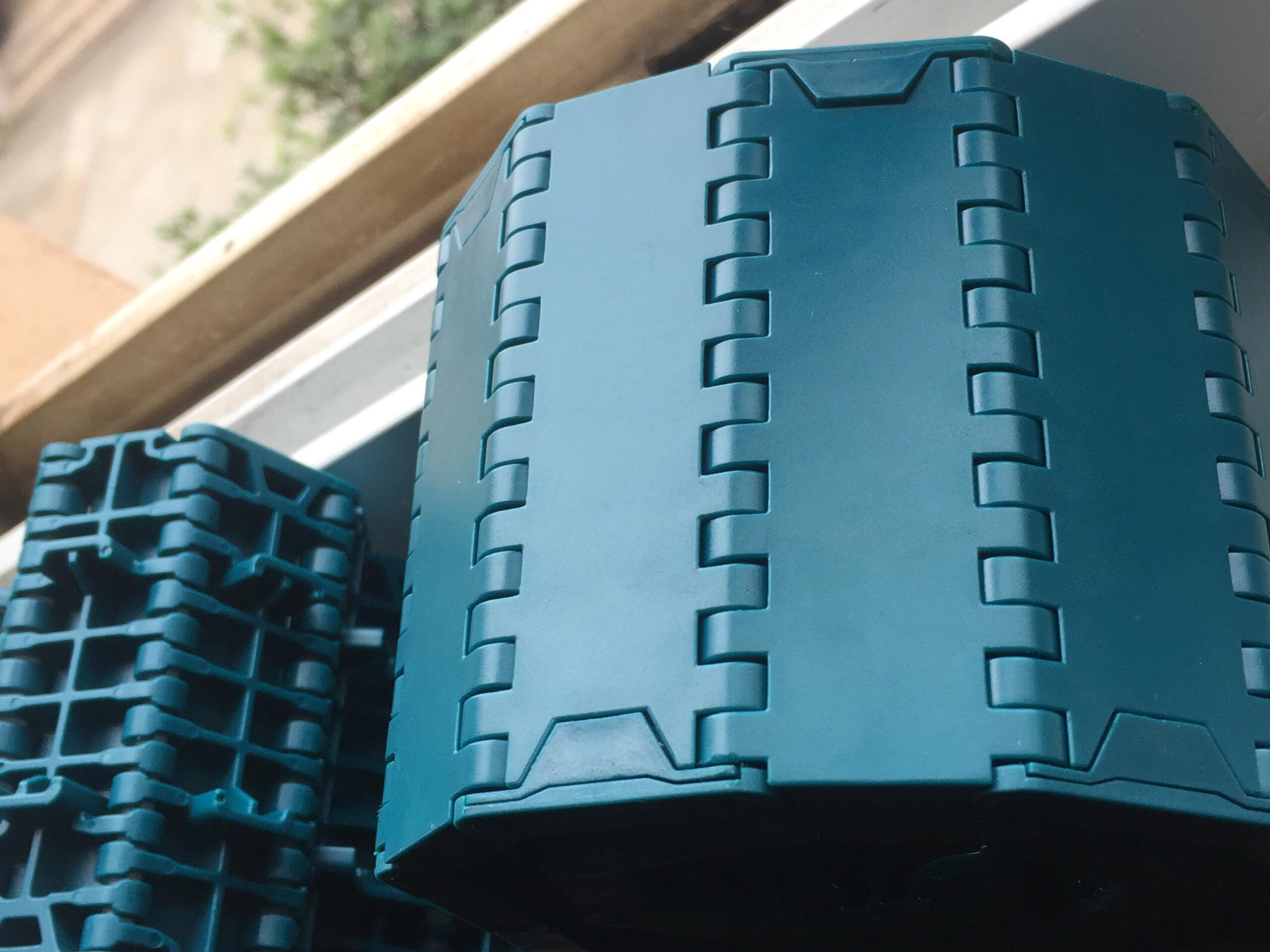

1000 Positioning Modular Plastic Conveyor Belt

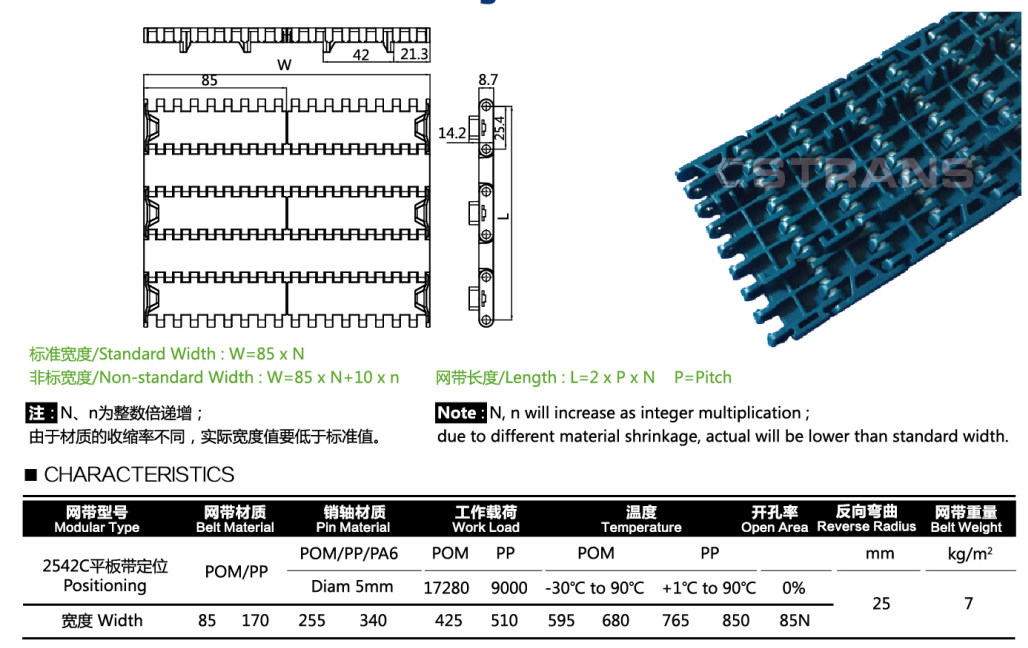

Parameter
|
Modular Type |
1000 Positioning |
|
|
Standard Width(mm) |
85 170 255 340 425 510 595 680 765 850 85N
|
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
|
Non-standard Width |
W=85*N+10*n |
|
|
Pitch |
25.4 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP/PA6 |
|
|
Pin Diameter |
5mm |
|
|
Work Load |
POM:17280 PP:9000 |
|
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
|
Open Area |
0% |
|
|
Reverse Radius(mm) |
25 |
|
|
Belt Weight(kg/㎡) |
7 |
|

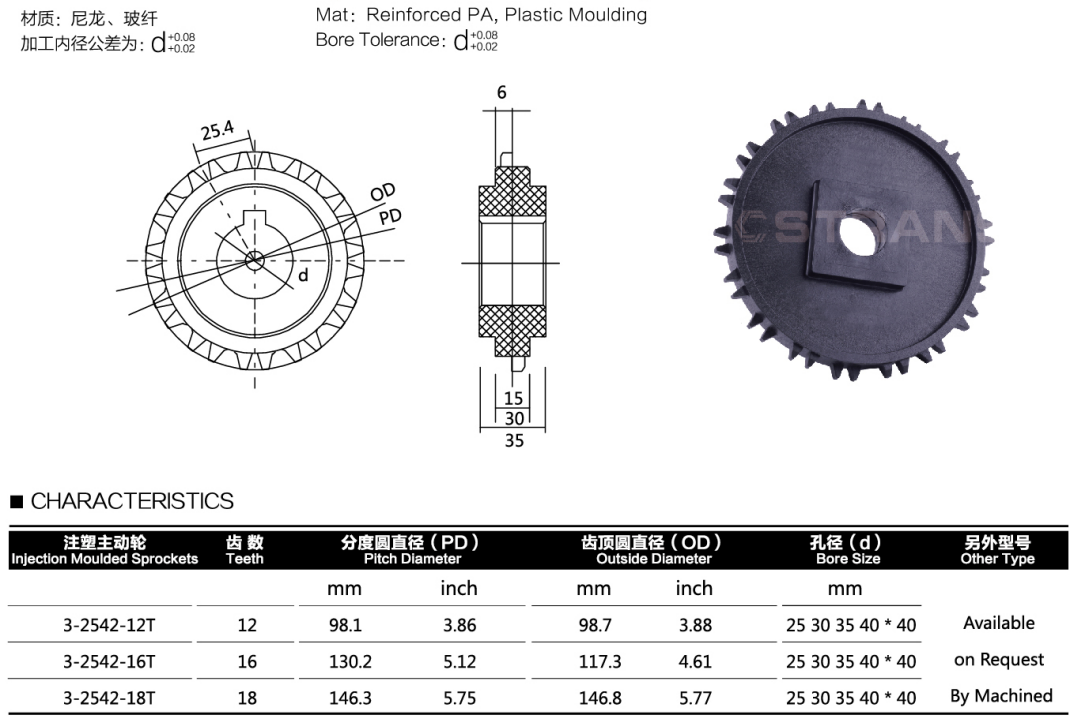

1000 Injection Moulded Sprockets
|
Model Number |
Teeth |
Pitch Diametet(mm) |
Outside Diameter |
Bore Size |
Other Type |
||
|
mm |
Inch |
mm |
Inch |
mm |
Available on Request By Machined |
||
|
3-2542-12T |
12 |
98.1 |
3.86 |
98.7 |
3.88 |
25 30 35 40*40 |
|
|
3-2542-16T |
16 |
130.2 |
5.12 |
117.3 |
4.61 |
25 30 35 40*40 |
|
|
3-2542-18T |
18 |
146.3 |
5.75 |
146.8 |
5.77 |
25 30 35 40*40 |
|
Application
1.Logistics
2.Food
3.Machinery
4.Chemical
5.Beverage
6.Agriculture
7.Cosmetics
8.Cigarette
9.Other industries
Advantage
1.Stable operation
2.High strength
3.Resistant to acid, alkali and brine
4.Easy maintenance
5.Good anti-stick effect
6.Solvent resistance, oil resistance
7.Color optional
8,Customization is available
9.Plant direct sale
10.Good after-sale service
