CC600/CC600TAB Case Conveyor Chains

Short Description:

CC600/600TAB Case Chains also named as 2600 2600TAB plastic conveyor case chain/keel chain/crate flat top chain, CC600/CC600Dcrate conveyor chains 2600/2600TAB case conveyor chains multi-flex transmission chains ,are usually used for conveying crates and other large items.are constructed, so that all types can run in both directions.
  • case chain pitch: 63.5mm
  • case chain material: POM
  • case chain pin: Stainless steel
  • case chain color: white
  • case chain width: 42mm
  • case chain length: 16pcs/m
  • Working temperature: -35~+90℃
  • Max conveying speed: 50m/min lubrication, 25m/min dry
  • Product Detail

    Product Tags

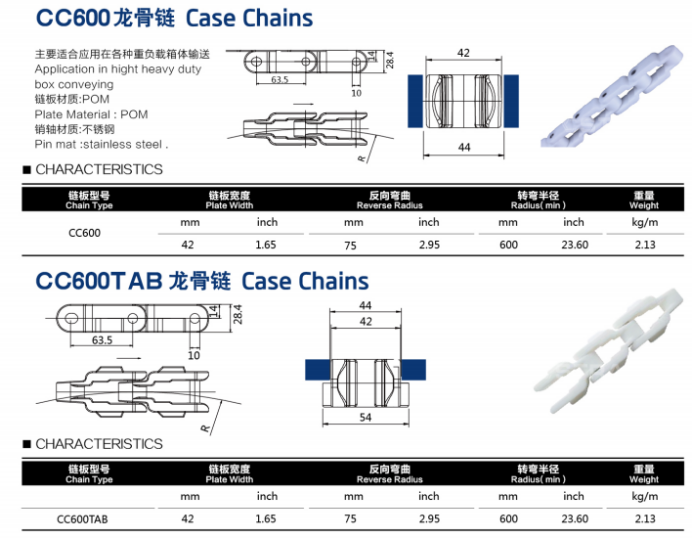

    Parameter

    CC600/CC600TAB Case Conveyor Chains

    Chain Type

    Plate Width

    Reverse Radius

    Radius

    Work Load

    Weight

    Cc600/600TAB

    case chain

    mm

    inch

    mm

    inch

    mm

    inch

    N

    2.13kg

    42

    1.65

    75

    2.95

    600

    23.6

    3000

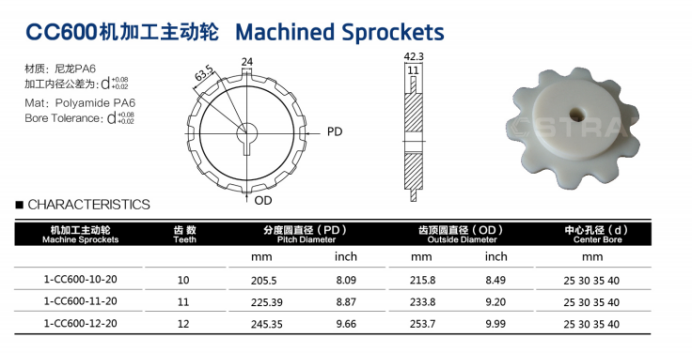

    CC600/600TAB/2600 series machined sprockets

    CC600/CC600TAB Case Conveyor Chains

    Machined Sprockets

    Teeth

    Pitch Diameter

    (PD)

    Outside Diameter

    (OD)

    Center Bore

    (d)

    mm

    inch

    mm

    inch

    mm

    1-CC600-10-20

    10

    205.5

    8.09

    215.8

    8.49

    25 30 35 40

    1-CC600-11-20

    11

    225.39

    8.87

     233.8

    9.20

    25 30 35 40

    1-CC600-12-20

    12

    245.35

    9.66

    253.7

    9.99

    25 30 35 40





    Advantages

    Suitable for conveying pallet, box frame and other products, is flexible in several directions.
    The conveyor line is easy to clean.
    Hinged pin shaft connection, can increase or decrease the chain joint.
    The side of the conveyor chain of TAB series is inclined plane, which will not come out when turning with the track. Hook foot limit, smooth operation.
    Hinged pin link, can increase or decrease the chain joint.
    Suitable for conveying goods in a variety of environments, the highest temperature can reach 120 degrees.
    Good wear-resisting , suitable for long time load, vibration absorption and noise reduction during operation.

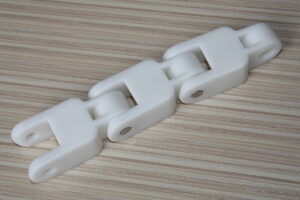

    利来产品 027

    Packaging

    cc600

    Inner packing :pack in paper box
    Out packing: Cartons or wooden pallet
    Suitable for sea and inland shipment
    As customers' request
