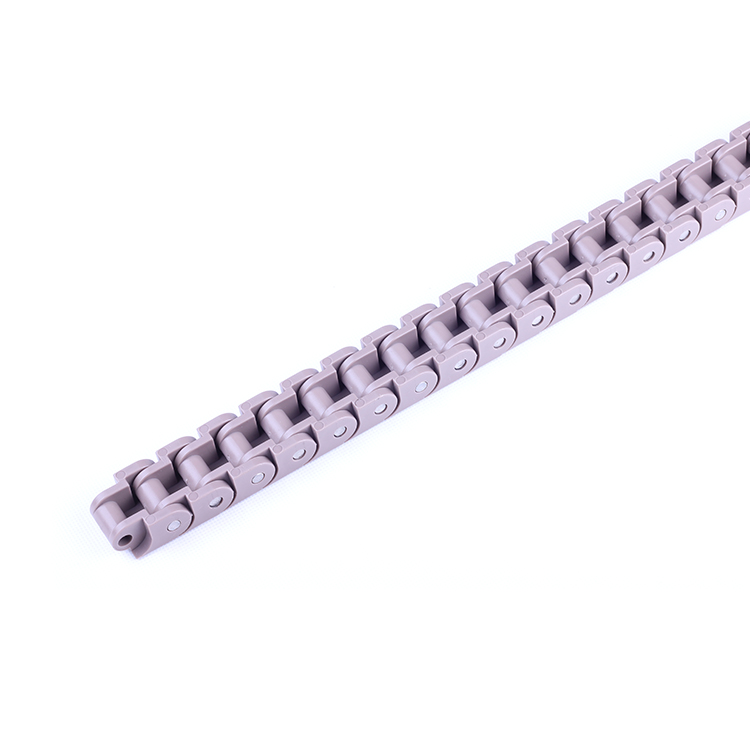

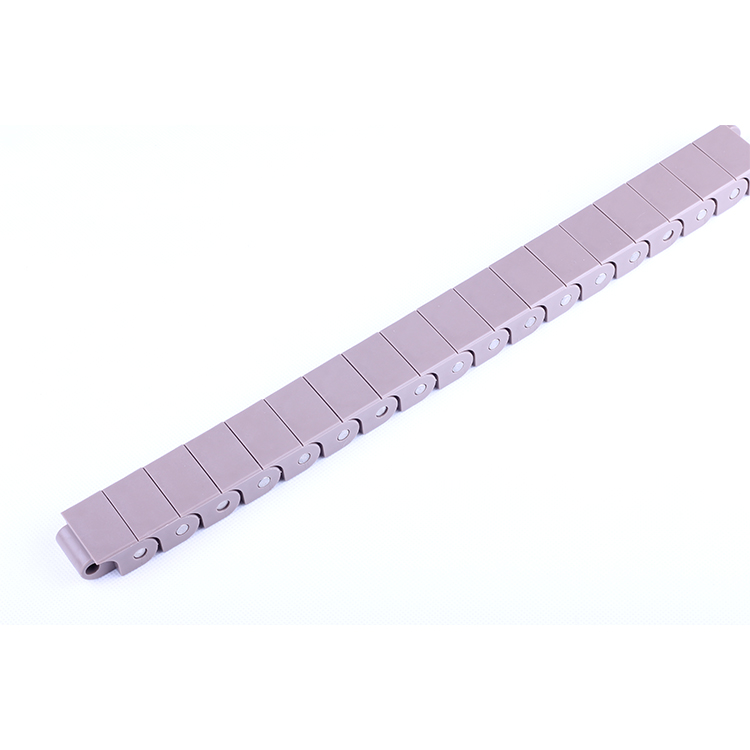

40P or 60P small picth chains

Short Description:

The pitch of this product is smaller than the plastic top chain, which can reduce the outside diameter of the sprocket and save the space of the conversion department. With a variety of chain pitch and chain width, it gains a wide range of applications. Sprockets for roller chains can be used in JIS. Block structure, chain ring width is small, suitable for small delivery.

Operation temperature: -30-+90℃(POM);+1-+98℃(PP)

Allowed max speed: 40m/min

The longest distance: 8M

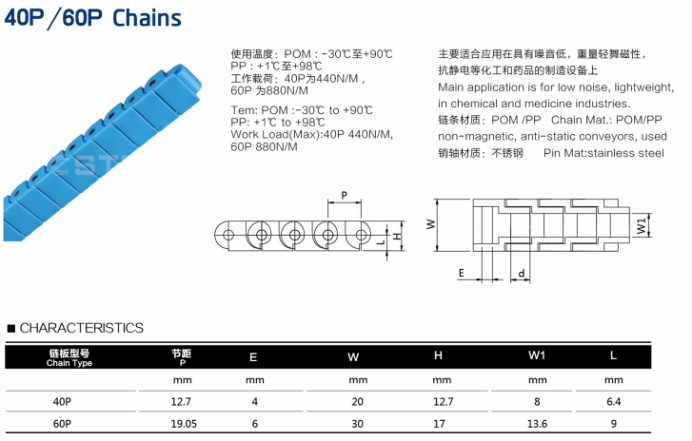

Pitch of 40P: 12.7mm;

Pitch of 60P: 19.05mm

Work Load(Max): 40P 440N/M,60P 880N/M

Pin material: stainless steel

Chain material: POM/PP

Packing for 40P: 10 feet=240 pcs

Packing for 60P: 10 feet=160pcs
