821PRRss Double Hinge Straight Running roller chains

Short Description:

Mainly used for all kinds of food industry, such as beverage, bottle, can and offer conveyor wrap packing.

The longest distance: 12M

Pitch: 38.1mm

Working load: 2680N

Pin material: austenitic stainless steel

Plate and rollers material: POM(Temperature:-40~90℃）

Packing: 5 feet=1.524 M/box 26pcs/M

Send email to us

Product Detail

Product Tags

Parameter

Chain Type	Plate Width		Reverse Radius(min)	Roller Width	Weight
	mm	inch	mm	mm	Kg/m
821-PRRss-k750	190.5	7.5	255	174.5	5.4
821-PRRss-k1000	254.0	10.0	255	238	6.8
821-PRRss-k1200	304.8	12.0	255	288.8	8.1

Advantages

Plastic roller chains are the ideal choice to reduce the surface pressure between the product and the conveyor belt when the product is piled up.

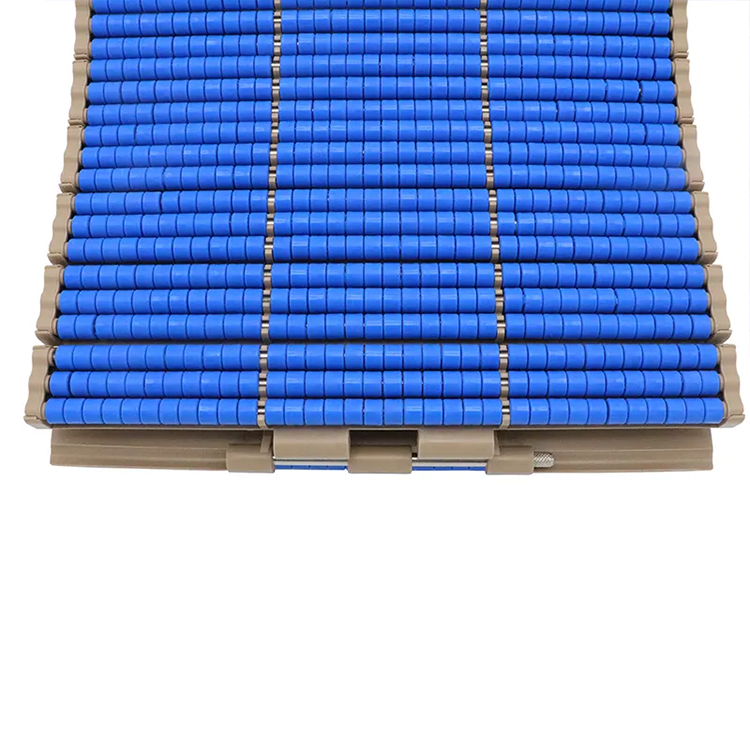

There are small roller series on the surface of the chain plate to provide a smooth conveying surface, so that the product is not damaged in the conveying process, and ensure that the product can move smoothly.

Suitable for: food industry and beverage industry packaging line (such as PET bottle heat shrink packaging).

Features: 1. High strength load. 2. low friction ,low noise.
