1873TAB side flex top chain with steel roller

Short Description:

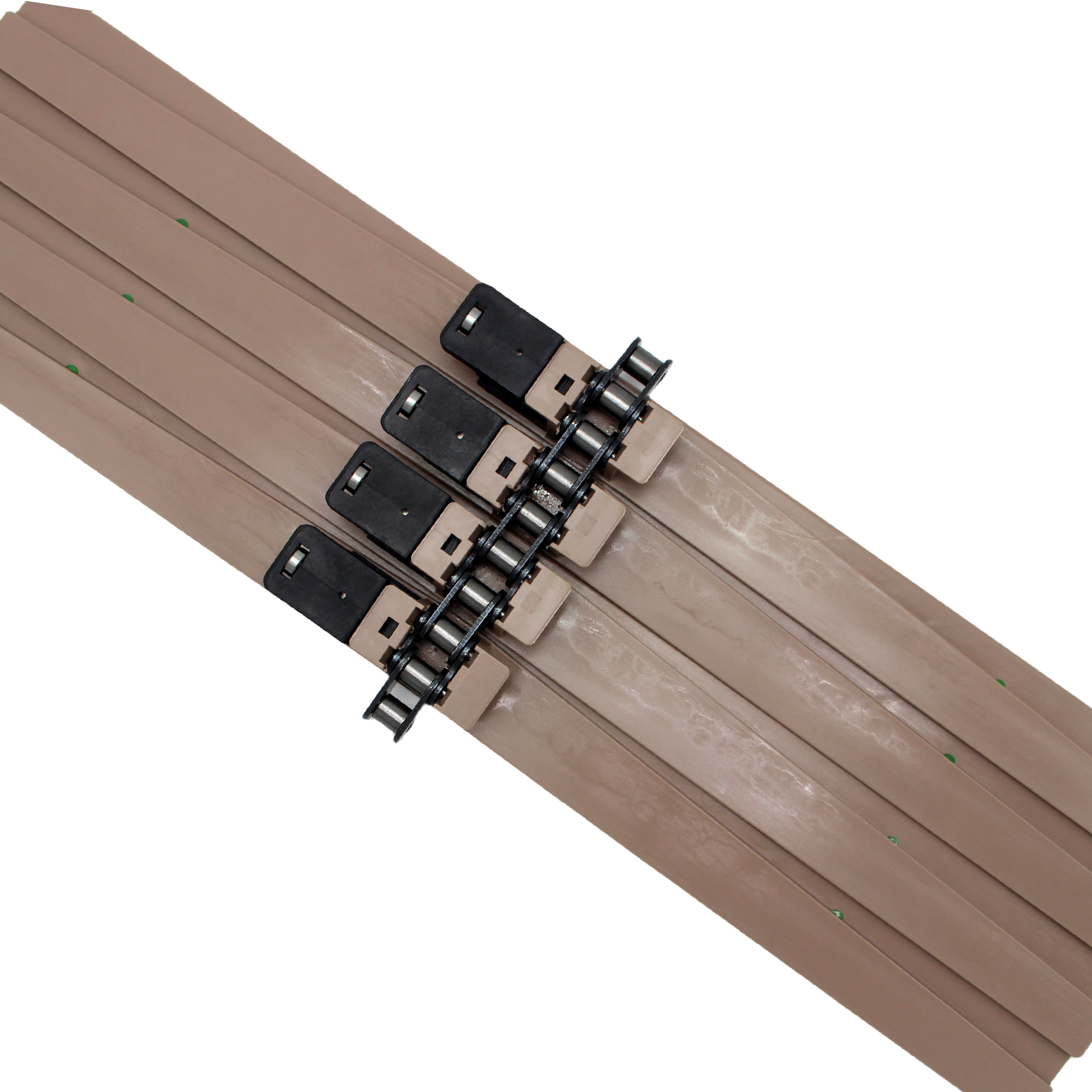

The chain is designed with plastic flights assembled on a special roller chain with extended pins. Application in high-speed curve conveyors in food industry.

Send email to us

Product Detail

Product Tags

Parameter

Material of chain plate	POM
Material of pin	stainless steel/ carbon steel
Color	coffer
Pitch	38.1mm
Operation temperature	-20℃~+80℃
Packing	10 feet=3.048 M/box 26pcs/M
Min speed	<25 m/min
Conveyor length	≤24m

Advantage

It is suitable for the occasion of small load strength, and the operation is more stable.
The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
The tooth shape can achieve a very small turning radius.
