2549 Friction Top Modular Plastic Conveyor Belt
Short Description
2549 Friction top modular plastic conveyor belt mainly apply for low pressure light weight plastic or glass bottles and packing machines conveying.

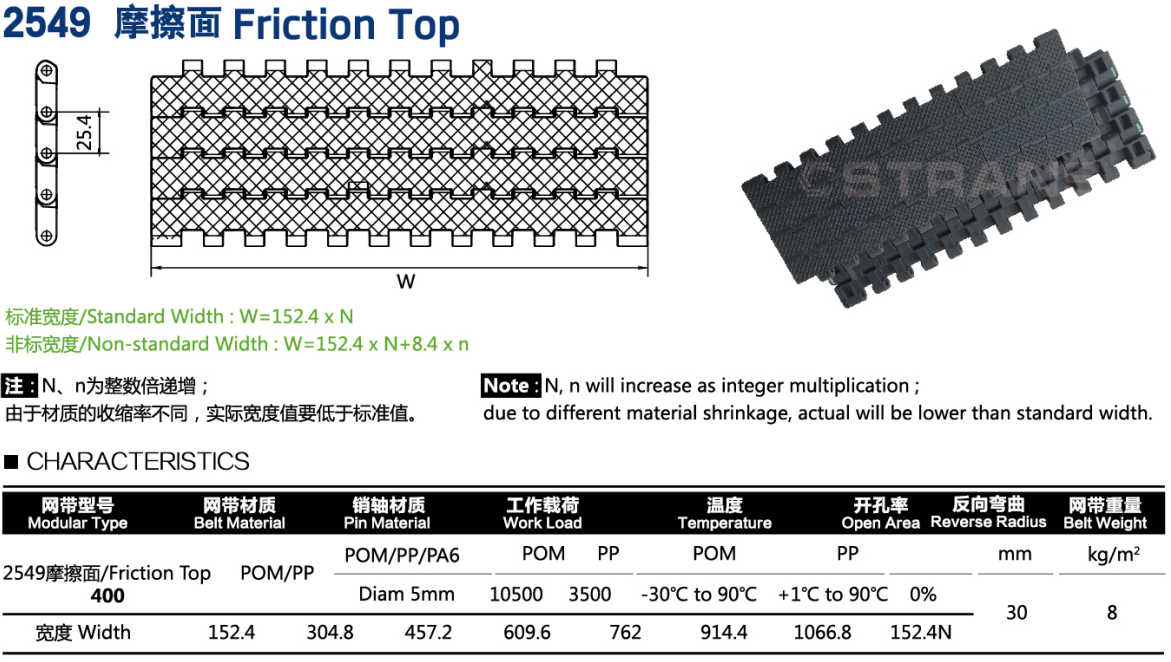

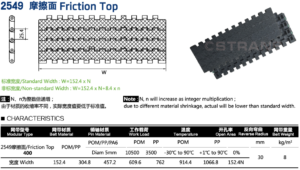

Parameter
| Modular Type | 2549Friction Top | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4*N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=152.4*N+8.4*n | |
| Pitch | 25.4 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 5mm | |
| Work Load | POM:10500 PP:3500 | |
| Temperature | POM:-30℃~ 90℃ PP:+1℃~90℃ | |
| Open Area | 0% | |
| Reverse Radius(mm) | 30 | |
| Belt Weight(kg/㎡) | 8 |

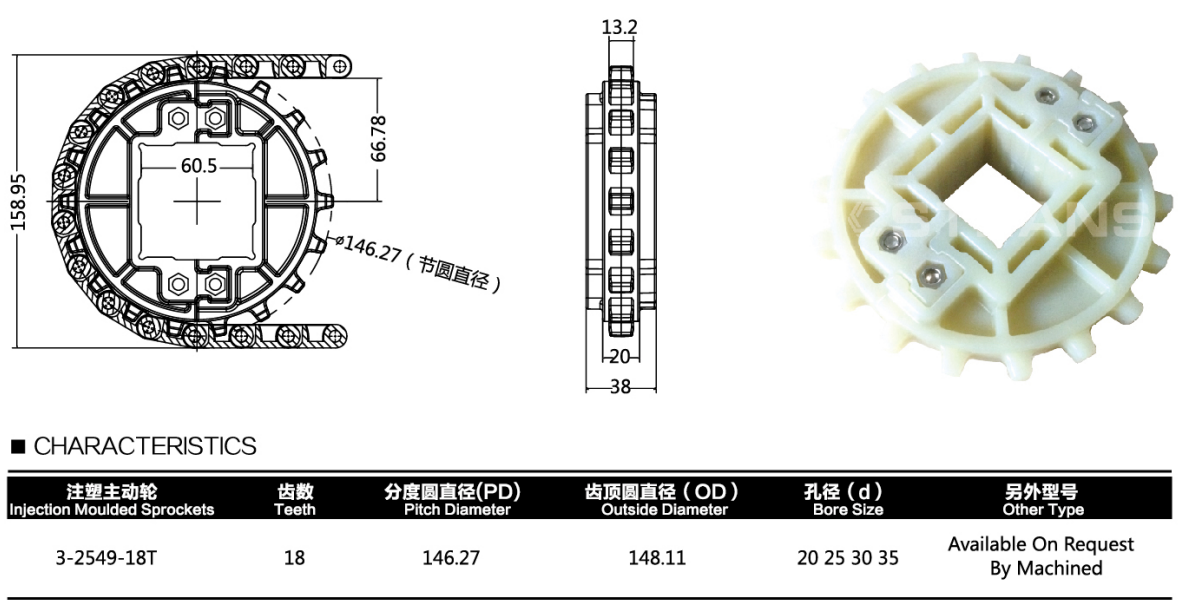

63 Machined Sprockets
| I njection Moulded Sprockets | Teeth | P itch Diameter | Outside Diameter | B ore Size | Other Type |
| 3 -2549-18T | 1 8 | 1 46.27 | 1 48.11 | 2 0 25 30 35 | A vailable On Request By Machined |
Application
1.Light weight products
2.Low pressure items
3.Glass bottles
4.Plastic bottles
5.Packaging industrial
6.Other industries
Advantage
1.Acid and alkali resistant
2.Anti-static electricity
3.Wear resistant
4.Anti-corrosion
5.Skid resistance
6.Convenient to assembly and maintain
7.Can bear High mechanical strength
8.Excellent after-sale service
9.Customization is available
