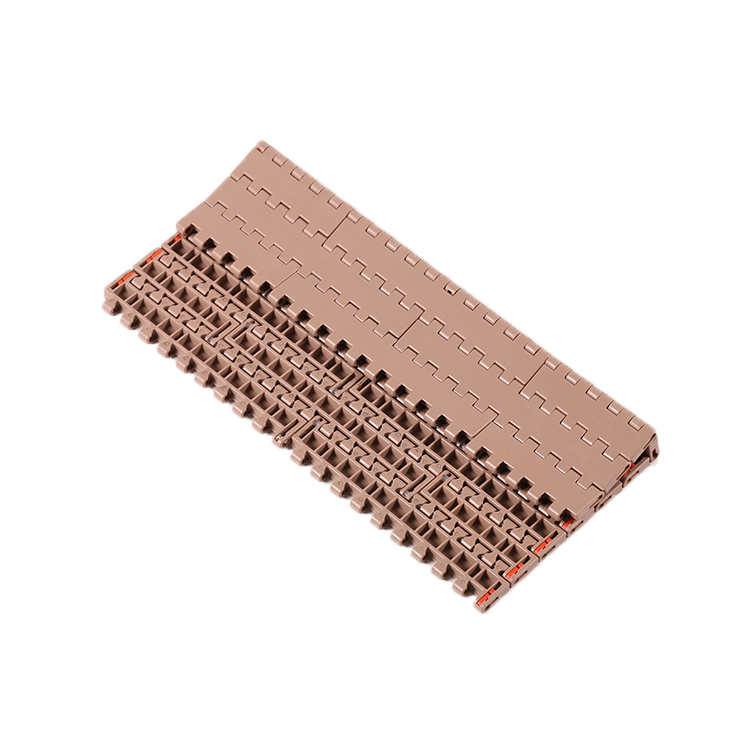

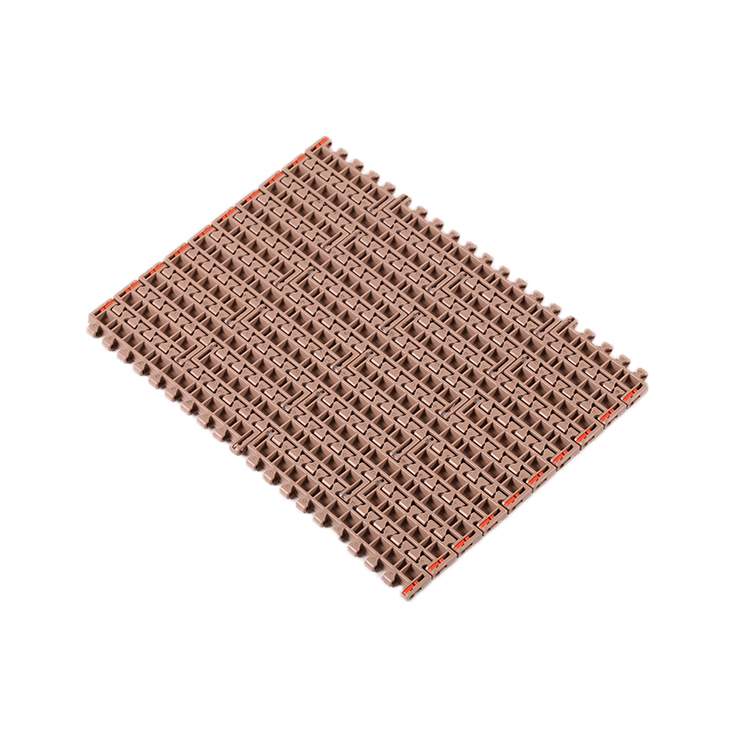

1600 Flat Top Modular Plastic Conveyor Belt
Short Description
1600 flat top modular plastic conveyor belt with flat surface, provides good support and minimizes product tipping. Especially suitable for glass products,small and unstable products(Example: PET petal bottom bottles)
Parameter
| Modular Type | 1600 Flat Top | |
| Standard Width(mm) | 85 170 255 340 425 510 595 680 765 85N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | On Request | |
| Pitch | 25.4 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 5mm | |
| Work Load | POM:17280 PP:6800 | |
| Temperature | POM:-30℃~ 90℃ PP:+1℃~90℃ | |
| Open Area | 0% | |
| Reverse Radius(mm) | 25 | |
| Belt Weight(kg/㎡) | 8.2 |

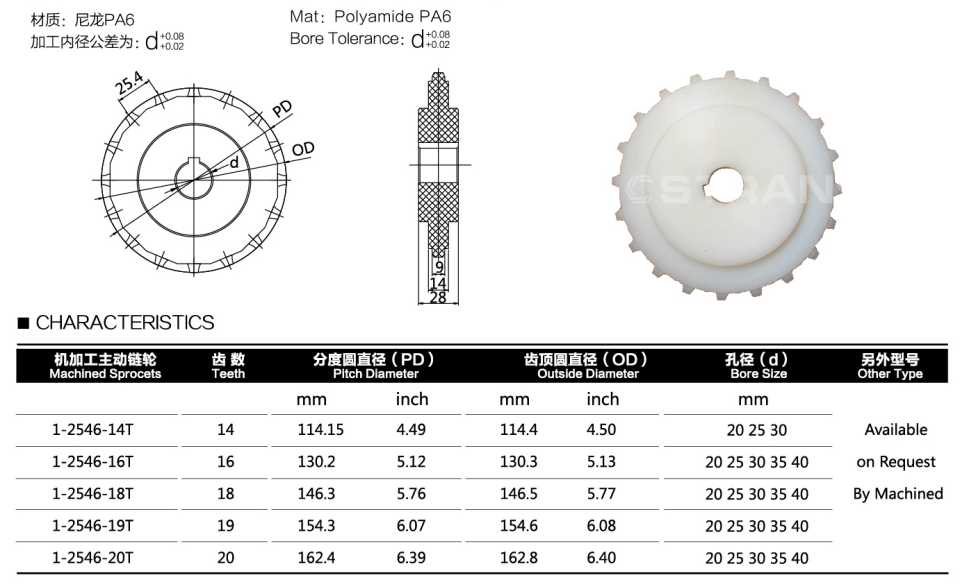

1600 Machined Sprockets
| Machine Sprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | mm | Inch | mm | Available on Request By Machined | |
| 1-2546-14T | 14 | 114.15 | 4.49 | 114.4 | 4.50 | 20 25 30 |
| 1-2546-16T | 16 | 130.2 | 5.12 | 130.3 | 5.13 | 20 25 30 35 40 |
| 1-2546-18T | 18 | 146.3 | 5.76 | 146.5 | 5.77 | 20 25 30 35 40 |
| 1-2546-19T | 19 | 154.3 | 6.07 | 154.6 | 6.08 | 20 25 30 35 40 |
| 1-2546-20T | 20 | 162.4 | 6.39 | 162.8 | 6.40 | 20 25 30 35 40 |
Application
1.Glass bottles
2.Small products
3.Unstable containers
4.Other industries
Advantage
1.High elasticity
2.No lubrication required
3.Flat surface
4.Low friction
5.Easy to wash and clean
6.Low cost maintenance
7.Stable operation
8.Flexible transportation
9.Durable life
