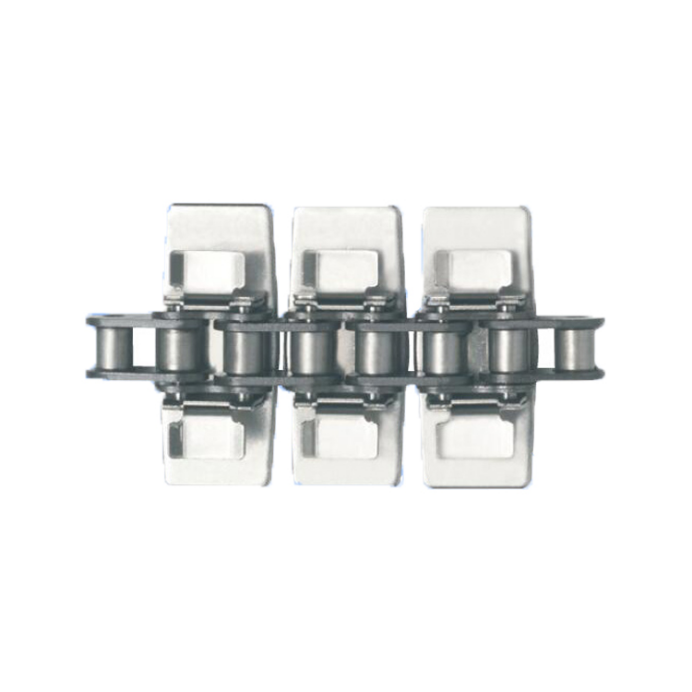

1874T stainless steel top plate without bearing

Short Description:

The chain is designed with stainless steel flights assembled on a special roller chain with extended pins.
Application in high-speed ,very high loading, low noise and longer curve line system

Material of pin: stainless steel/ carbon steel

Color: coffe

Pitch: 38.1mm

Packing: 10 feet=3.048 M/box 26pcs/M

Send email to us

Product Detail

Product Tags

Parameter

Chain Type		Plate Width		Reverse Radius		Radius (min)	Work load(Max)
Carbon Steel	Stainless Steel	mm	inch	mm	inch	mm	N
1874TCS-K325	SJ-1874TSS-K325	82.6	3.25	150	5.91	380	27000

Advantages

1.It is suitable for straight conveying of pallet, box frame, film bag, etc.
2.Metal bottom chain is suitable for heavy load and long distance transportation.
3.The chain plate body is clamped on the chain for easy replacement.
