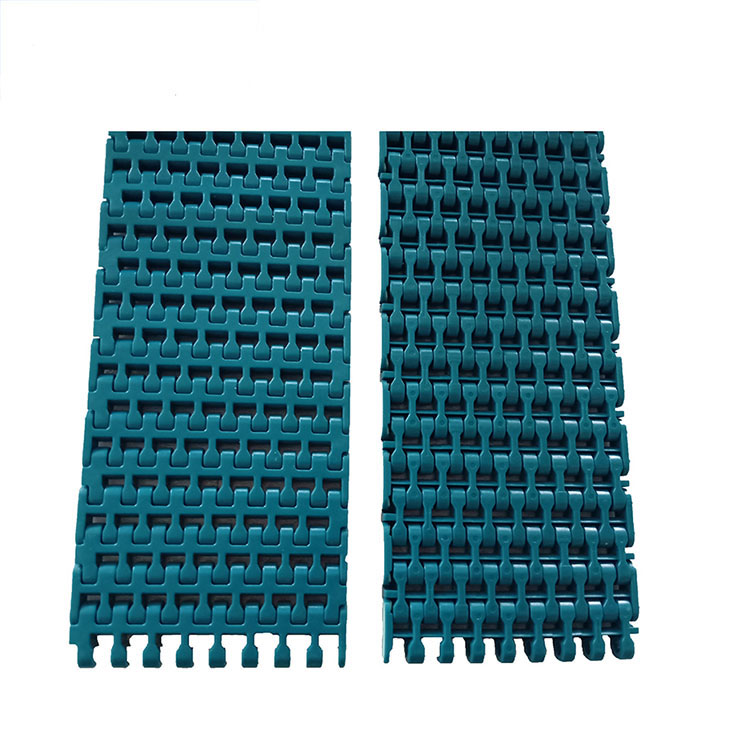

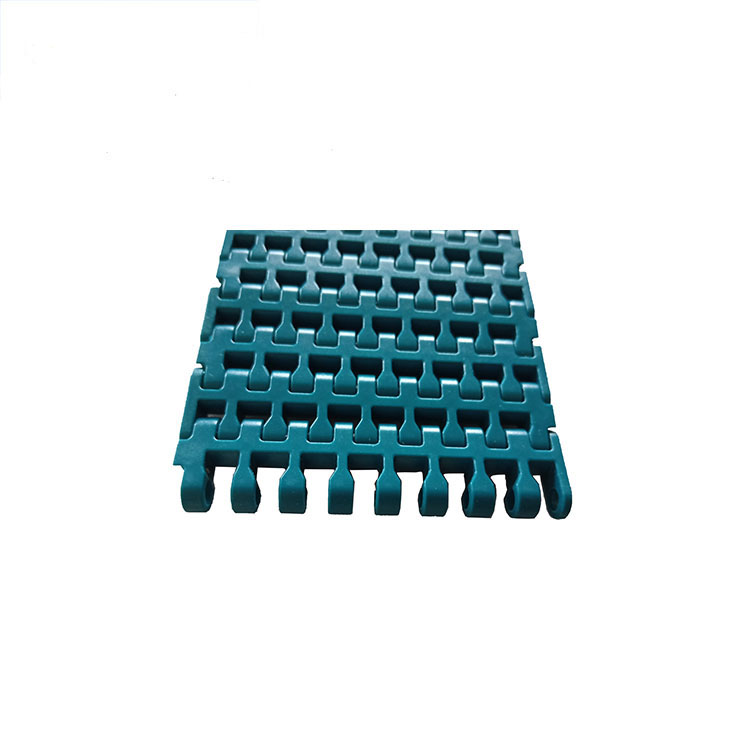

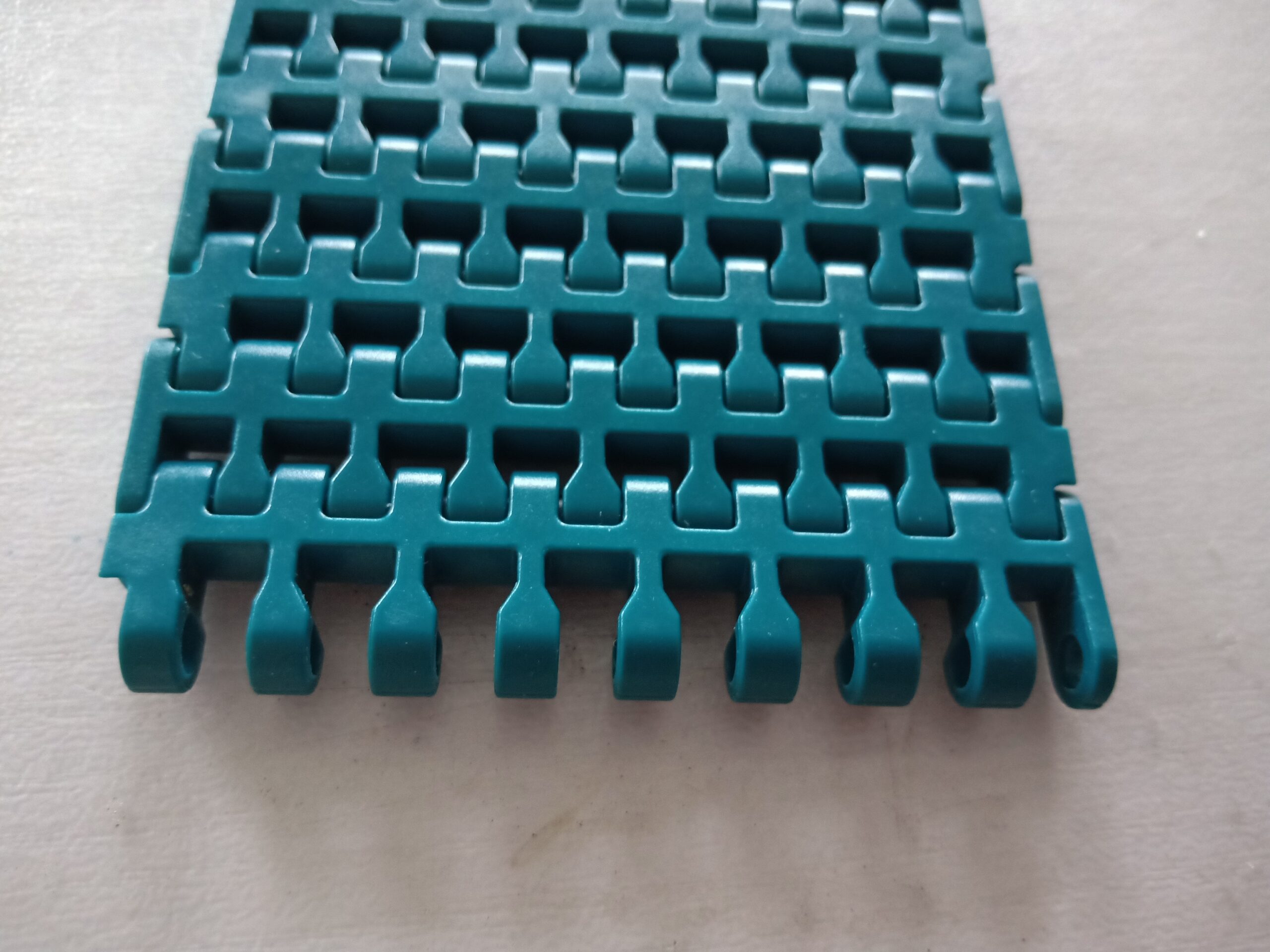

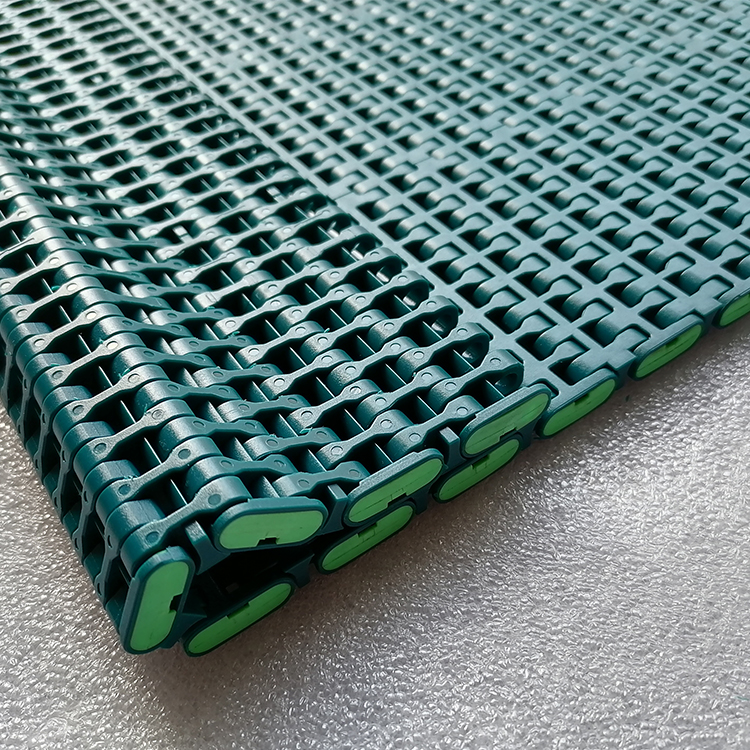

500 Flush Grid Plastic Modular Conveyor Belt
Short Description

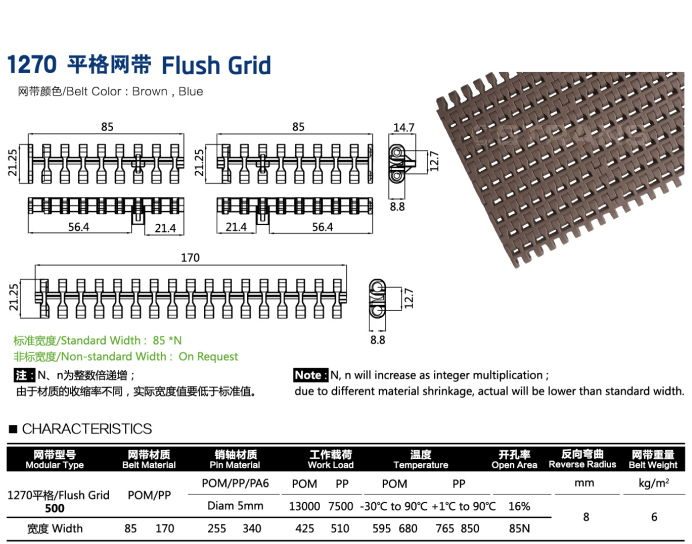

Product Parameters
| Modular Type | 500 | |
| Standard Width(mm) | 85 170 255 340 425 510 595 680 765 850 85N | (N, n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | On request | |
| Pitch(mm) | 12.7 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 5mm | |
| Work Load | POM:13000 PP:7500 | |
| Temperature | POM:-30°~ 90° PP:+1°~90° | |
| Open Area | 16% | |
| Reverse Radius(mm) | 8 | |
| Belt Weight(kg/㎡) | 6 |

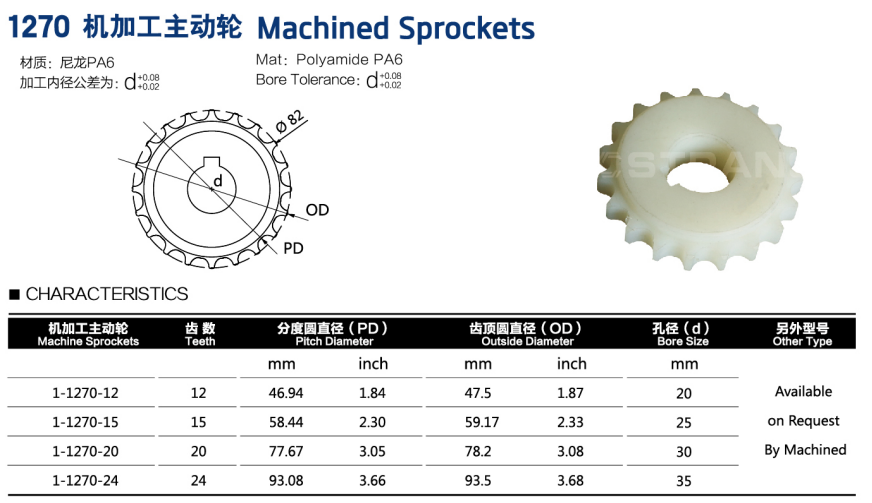

500 Machined Sprockets
| Machine Sprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | mm | Inch | mm | Available on Request By Machined | |
| 1-1270-12 | 12 | 46.94 | 1.84 | 47.5 | 1.87 | 20 |
| 1-1270-15 | 15 | 58.44 | 2.30 | 59.17 | 2.33 | 25 |
| 1-1270-20 | 20 | 77.67 | 3.05 | 78.2 | 3.08 | 30 |
| 1-1270-24 | 24 | 93.08 | 3.66 | 93.5 | 3.68 | 35 |
Application Industries
1. Food 2. Beverage 3. Packing industry 4. Other industries
Advantages
1. Can be spliced according to customer requirements
2. Suitable for conveying small or unstable products
3. Pharmaceutical machinery
4. High strength and high load design; Standardized design;
5. Strong stability
6. High and low temperature resistance, strong acid and alkali resistance
7. Standard and customized size are both avaialble.
8. Competitive price ,Reliable quality

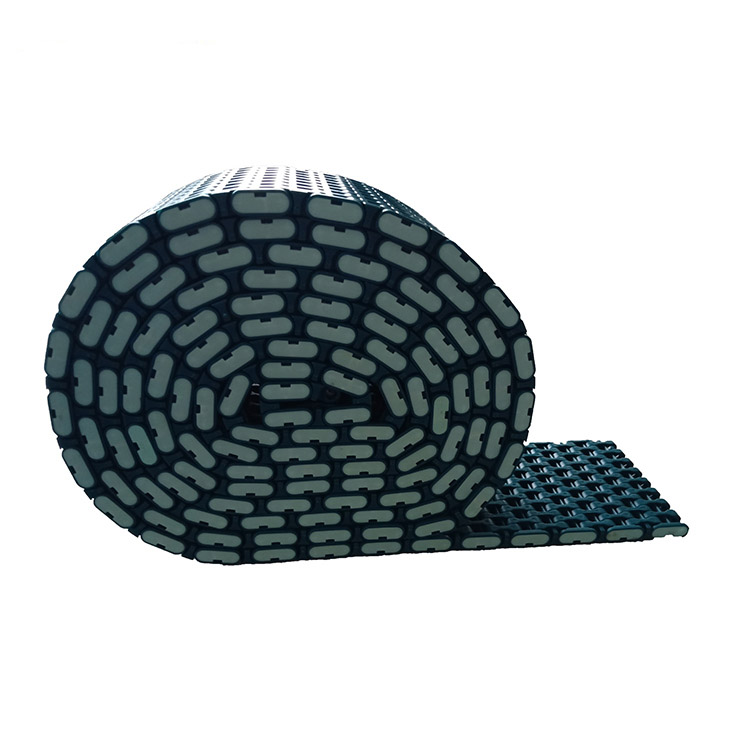

About modular plastic conveyor belt
Plastic mesh belt is introduced from abroad and equipment brought to China to use, characteristics are more obvious, much superior than the traditional belt conveyor, with high strength, acid resistance, alkali, salt water and other characteristics, a wide range of temperature, anti viscosity, can be added to the plate, large Angle, easy to clean, simple maintenance; It can be used for conveying under various environments.500 modular plastic conveyor belt is mainly used for food and beverage and industrial automatic conveyor line.
Plastic mesh belt can classify into flat top type: suitable for the application of a fully closed conveyor belt surface, can transmit a wide variety of products. Flush grid type: Often used in applications requiring drainage or air circulation. Rib type: recommended for using in the delivery process need to maintain product stability in the application field.
