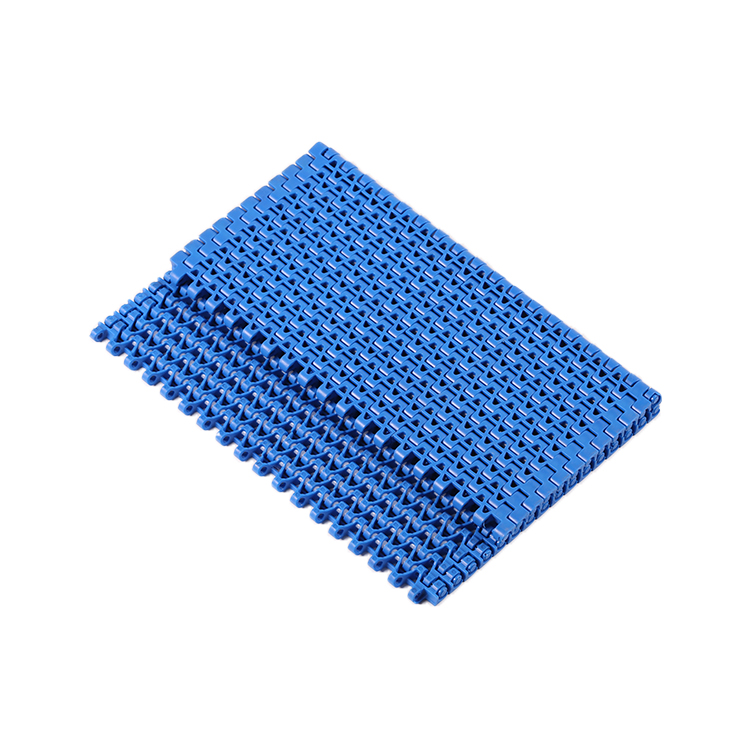

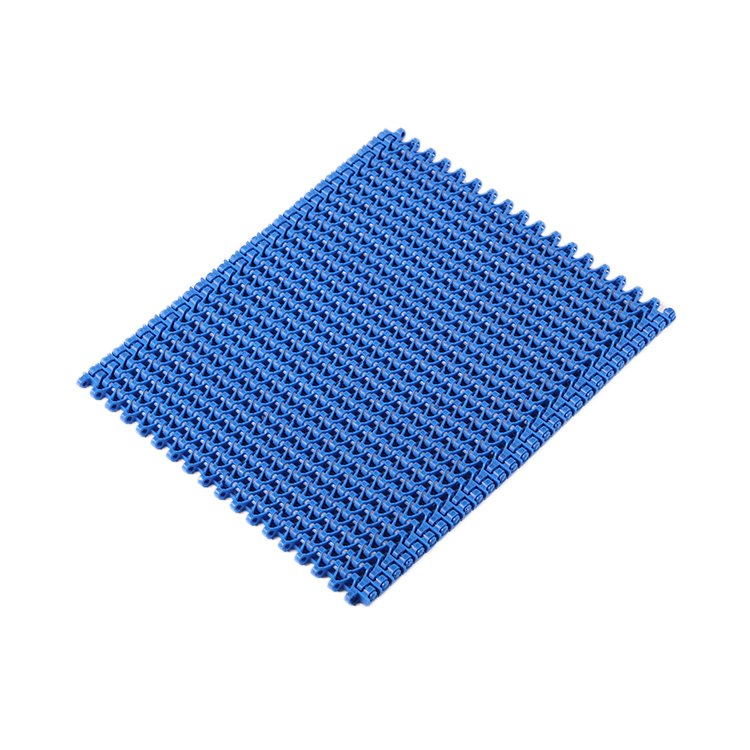

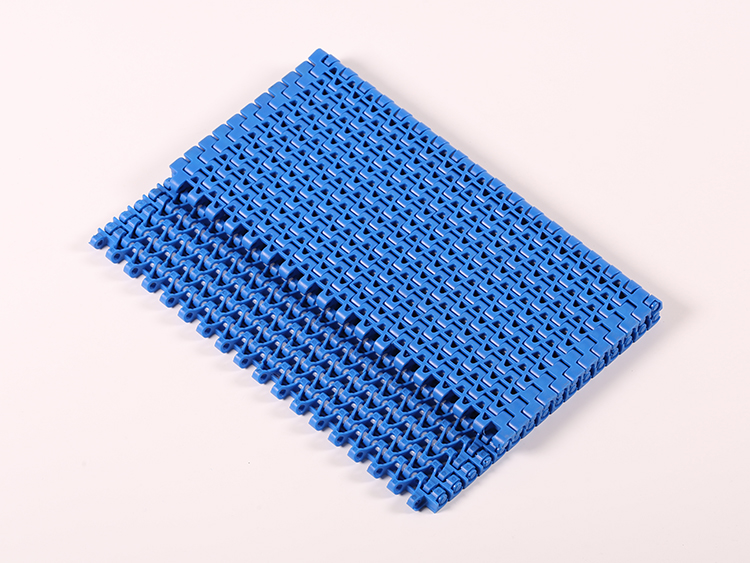

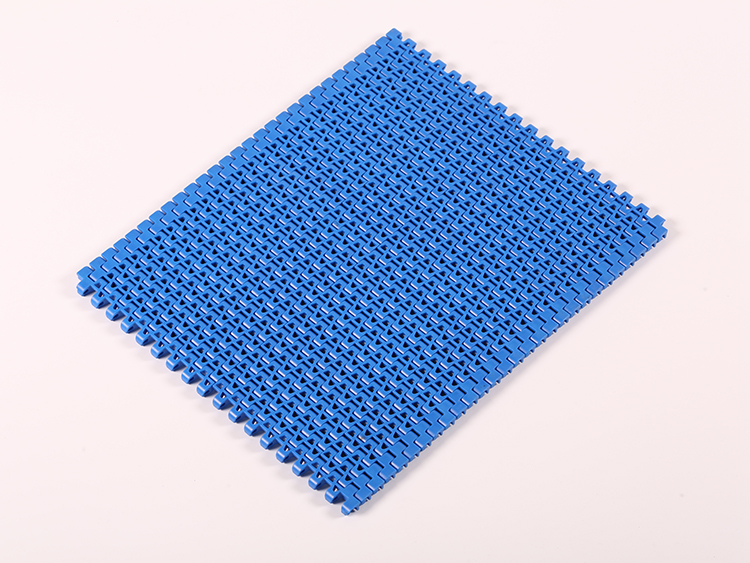

1230 Flush Grid Plastic Modular Conveyor Belt

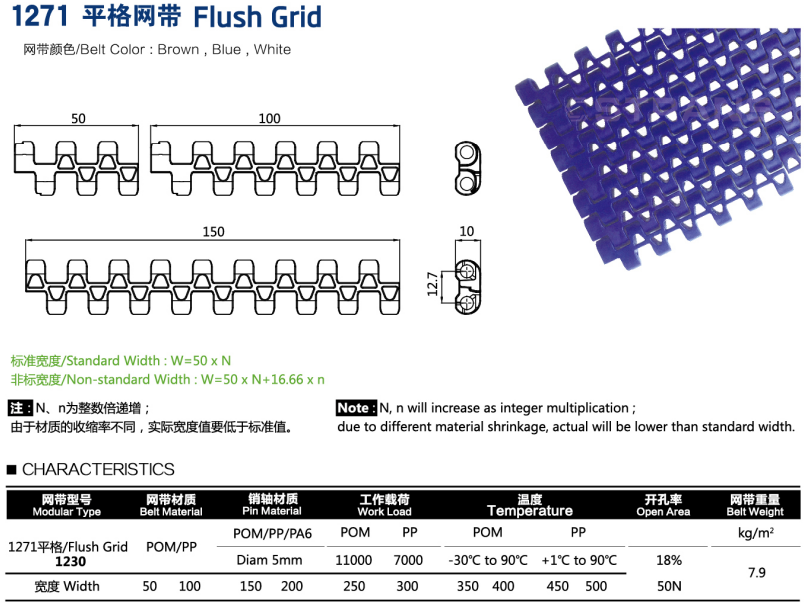

Parameter
|
Modular Type |
1230 Flush Grid |
|
|
Standard Width(mm) |
50 100 150 200 250 300 350 400 450 500 50N
|
Note:n will increase as integer ultiplication:due to different material shrinkage,actual will be lower than standard width |
|
Non-standard Width |
50*N+16.66*n |
|
|
Pitch(mm) |
12.7 |
|
|
Belt Material |
PP/POM |
|
|
Pin Material |
PP/PA/PA6 |
|
|
Pin Diameter |
5mm |
|
|
Work Load |
POM:11000 PP:7000 |
|
|
Temperature |
PP:+1C° to 90C° POM:-30C° to 90C° |
|
|
Open Area |
18% |
|
|
Belt Weight(kg/㎡) |
7.9 |
|

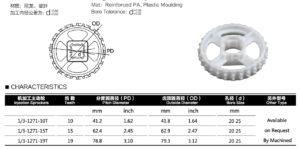

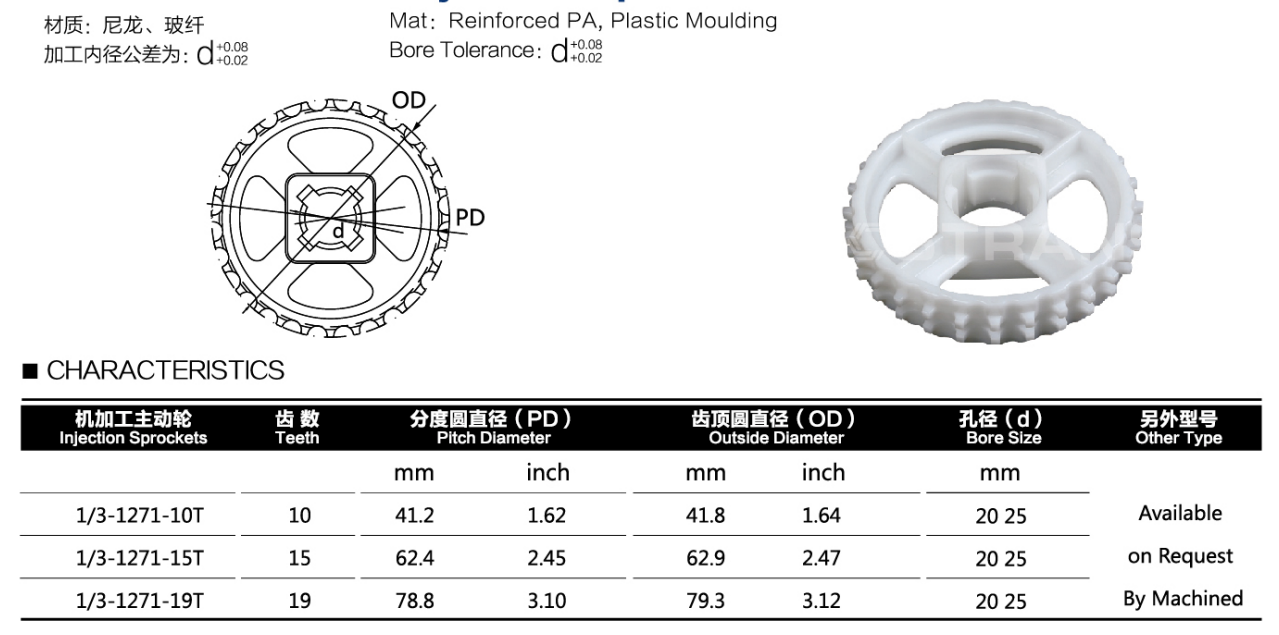

1230 Injection Sprockets
|
Injection Sprockets |
Teeth |
Pitch Diameter |
Outside Diameter |
Bore Size |
Available on Request By Machined |
||
|
mm |
inch |
mm |
inch |
mm |
|||
|
1/3-1271-10T |
10 |
41.2 |
1.62 |
41.8 |
1.64 |
20 25 |
|
|
1/3-1271-15T |
15 |
62.4 |
2.45 |
62.9 |
2.47 |
20 25 |
|
|
1/3-1271-19T |
19 |
78.8 |
3.10 |
79.3 |
3.12 |
20 25 |
|
Application
1.Food
2.Beverage
3.Pharmaceuticals
4.Postal service
5.Other industries
Advantage
1.Strong corrosion resistance,
2.High tensile strength,
3.Good stability,
4.Heat resistance and deformation,
5.Low noise,
6.High temperature resistance,
7.Long service life
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.
POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
