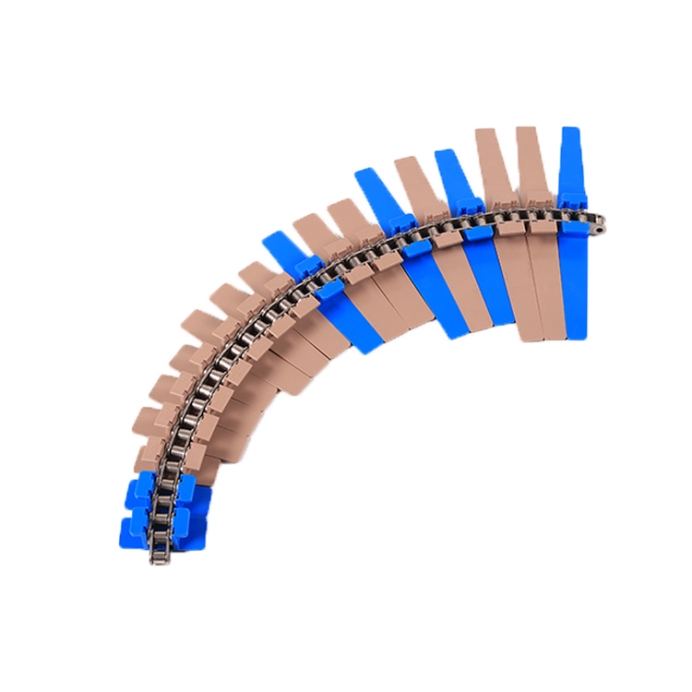

1873T sideflex plastic top plate without bearing

Short Description:

The chain is designed with plastic flights assembled on a special roller chain with extended pins. Application in high-speed curve conveyors in food industry.
  • Material of chain plate: POM
  • Material of pin: stainless steel/ carbon steel
  • Color: coffer
  • Pitch: 38.1mm
  • Operation temperature: -20℃~+80℃
  • Packing: 10 feet=3.048 M/box 26pcs/M
  • Product Detail

    Product Tags

    Parameter

    Chain Type

    Plate Width

    Reverse Radius

    Radius (min)

    Carbon Steel

    Stainless Steel

    mm

    inch

    mm

    inch

    mm

    1873TCS-K325

    SJ-1873TSS-K325

    82.6

    3.25

    150

    5.91

    356

    1873TCS-K450

    SJ-1873TSS-K450

    114.3

    4.50

    150

    5.91

    356

    1873TCS-K600

    SJ-1873TSS-K600

    152.4

    6.00

    150

    5.91

    457

    1873TCS-K750

    SJ-1873TSS-K750

    190.5

    7.50

    150

    5.91

    457

    1873TCS-K1000

    SJ-1873TSS-K1000

    254

    10.0

    150

    5.91

    457

    1873TCS-K1200

    SJ-1873TSS-K1200

    304.8

    12.0

    150

    5.91

    457

    4.3.1
    4.3.3
    4.3.2

    Advantages

    It is suitable for straight conveying of pallet, box frame, film bag, etc.
    Metal bottom chain is suitable for heavy load and long distance transportation.
    The chain plate body is clamped on the chain for easy replacement.
    The above speed is under turning transportation condition, the linear transportation speed is less than 60m/min.

    Plastic Snap-on Sideflexing Chains  1873
