Conveyor Stainless Steel Chains–SS812 Hinge Straight Chains

Short Description:

Material: austenitic stainless steel (non-magnetic) + Rubber
ferritic stainless steel (magnetic)+ Rubber
Pin material:stainless steel.
Application: widely used in all kinds of climbing conveyor machines, especially suitable for carton conveying.

Product Detail

Product Tags

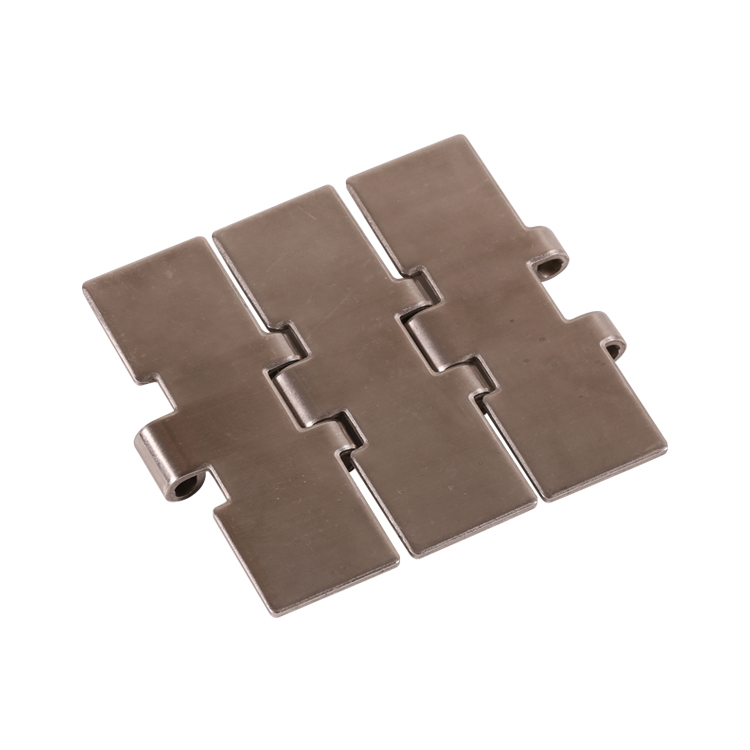

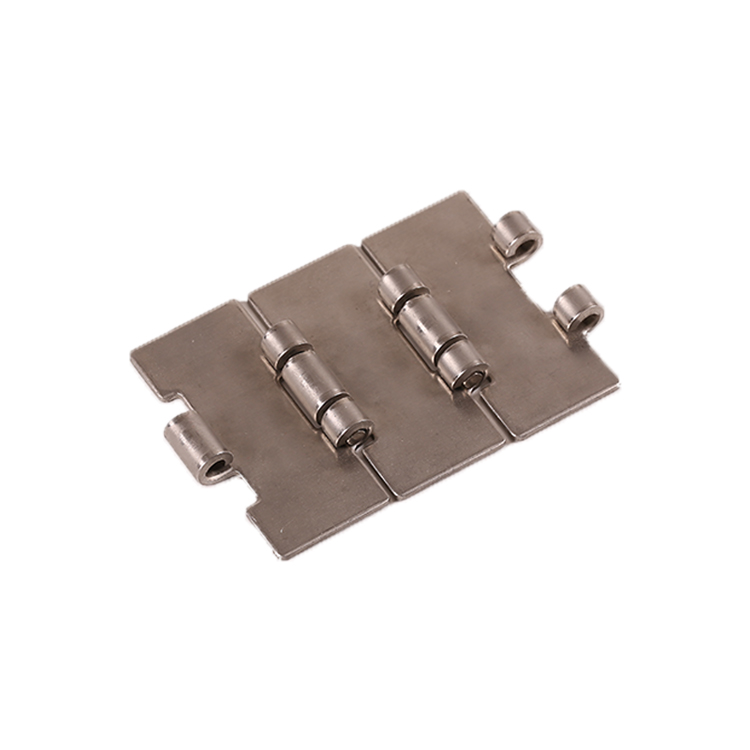

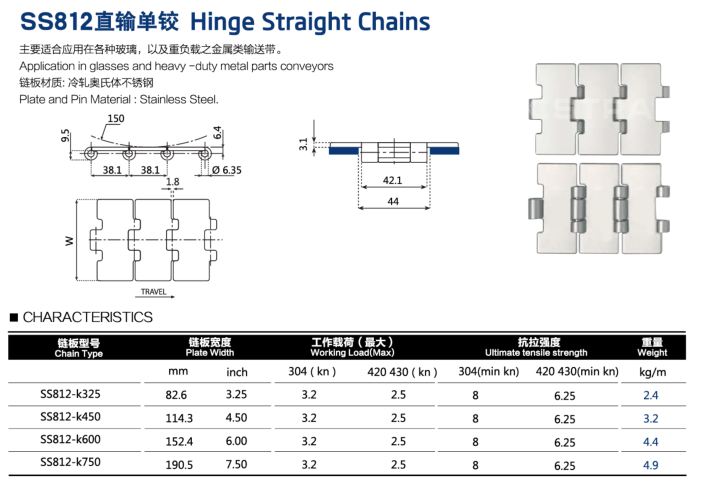

SS812 Hinge Straight Chains

SS812
Chain Type Plate Width Working load(Max) Ultimate tensile strength Weight
  mm inch 304(kn) 420 430(kn) 304(min kn) 420 430(min kn) Kg/m
SS812-K325 82.6 3.25 3.2 2.5 8 6.25 2.4
SS812-K450 114.3 4.50 3.2 2.5 8 6.25 3.2
SS812-K600 152.4 6.00 3.2 2.5 8 6.25 4.4
SS812-K750 190.5 7.50 3.2 2.5 8 6.25 4.9
Pitch :38.1mm  Thickness:3.0mm
Material: austenitic stainless steel (non-magnetic);ferritic stainless steel (magnetic)Pin material:stainless steel.
Maximum conveyor length: 15 meters.
Max. Speed : lubricant 90m/min ;Dryness 60m/min.
Packing: 10 feet=3.048 M/box  26pcs/m
Application: widely used in all kinds of conveyor of bottle and heavy load such as metal. Especially applied to beer industry.Suggestion: lubricant.

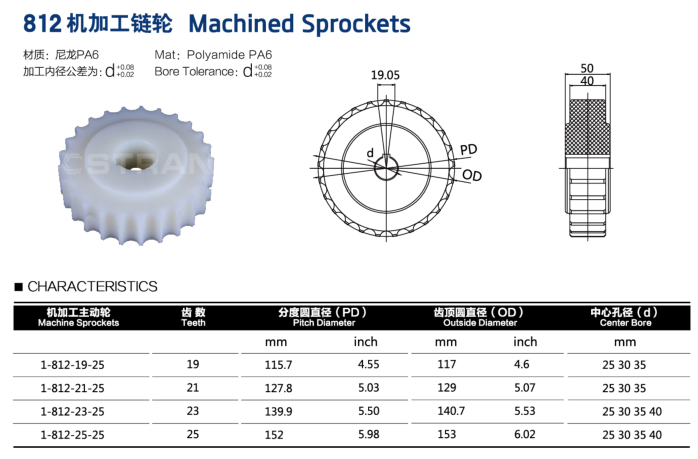

812 Machined Sprockets

SS812 轮子
Machine Sprockets Teeth Pitch Diameter(PD) Outside Diameter(OD) Center Bore(d)
  mm inch mm inch mm
1-812-19-25 19 115.7 4.55 117 4.60 25 30 35
1-812-21-25 21 127.8 5.03 129 5.07 25 30 35
1-812-23-25 23 139.9 5.50 140.7 5.53 25 30 35 40
1-812-25-25 25 152 5.98 153 6.02 25 30 35 40
Material: Polyamide PA6
 Bore Tolerance: d: 0.02~008

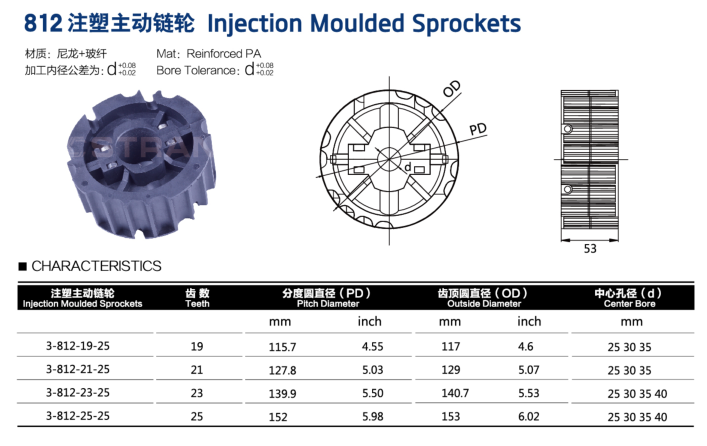

812 Injection Moulded Sprockets

812 注塑轮
Injection Moulded Sprockets Teeth Pitch Diameter(PD) Outside Diameter(OD) Center Bore(d)
  mm inch mm inch mm
3-812-19-25 19 115.7 4.55 117 4.60 25 30 35
3-812-21-25 21 127.8 5.03 129 5.07 25 30 35
3-812-23-25 23 139.9 5.50 140.7 5.53 25 30 35 40
3-812-19-25 25 152 5.98 153 6.02 25 30 35 40
Material: Reinforced PA6
 Bore Tolerance: d: 0.02~008

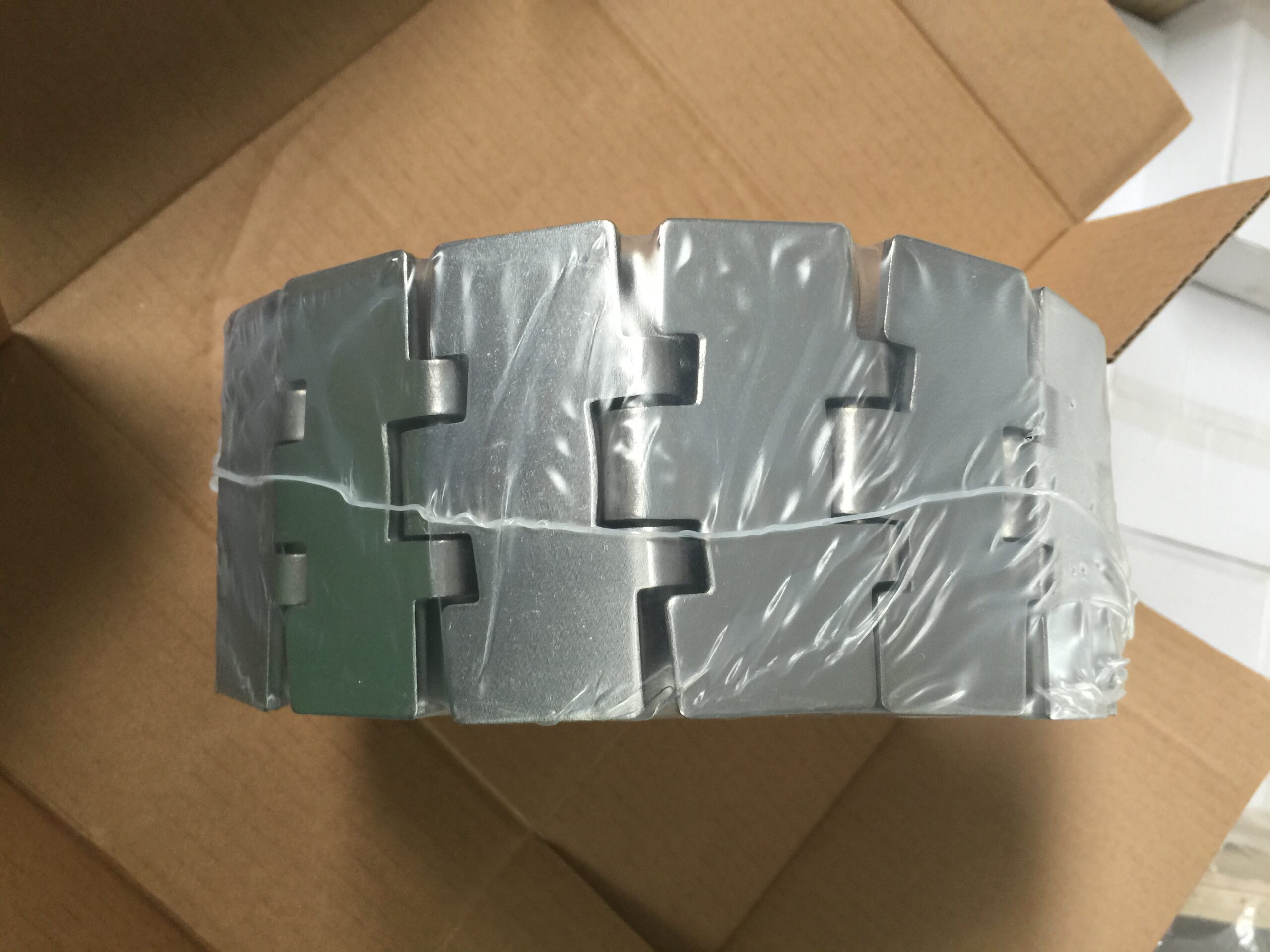

IMG_2353

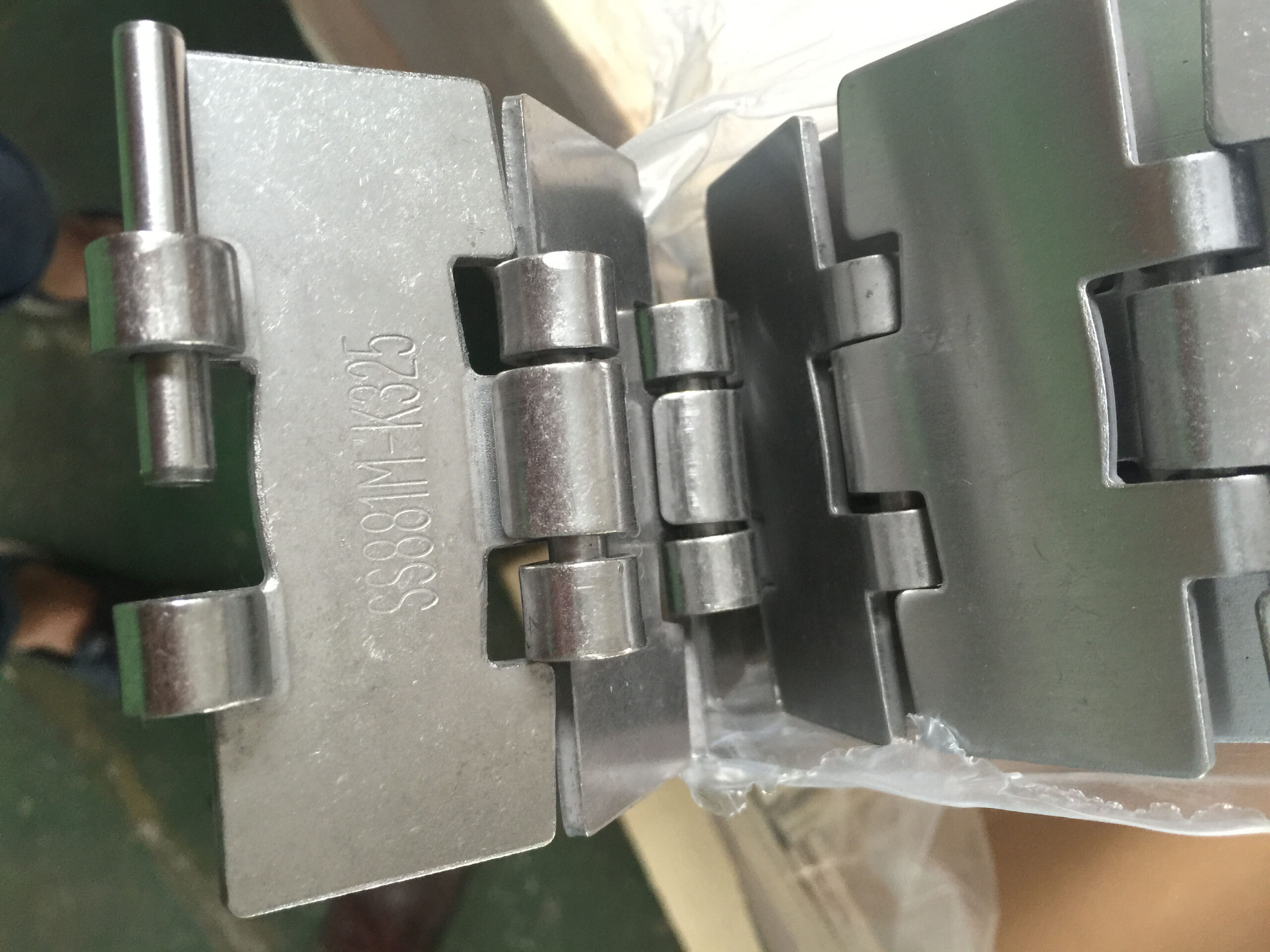

ss812-5-3

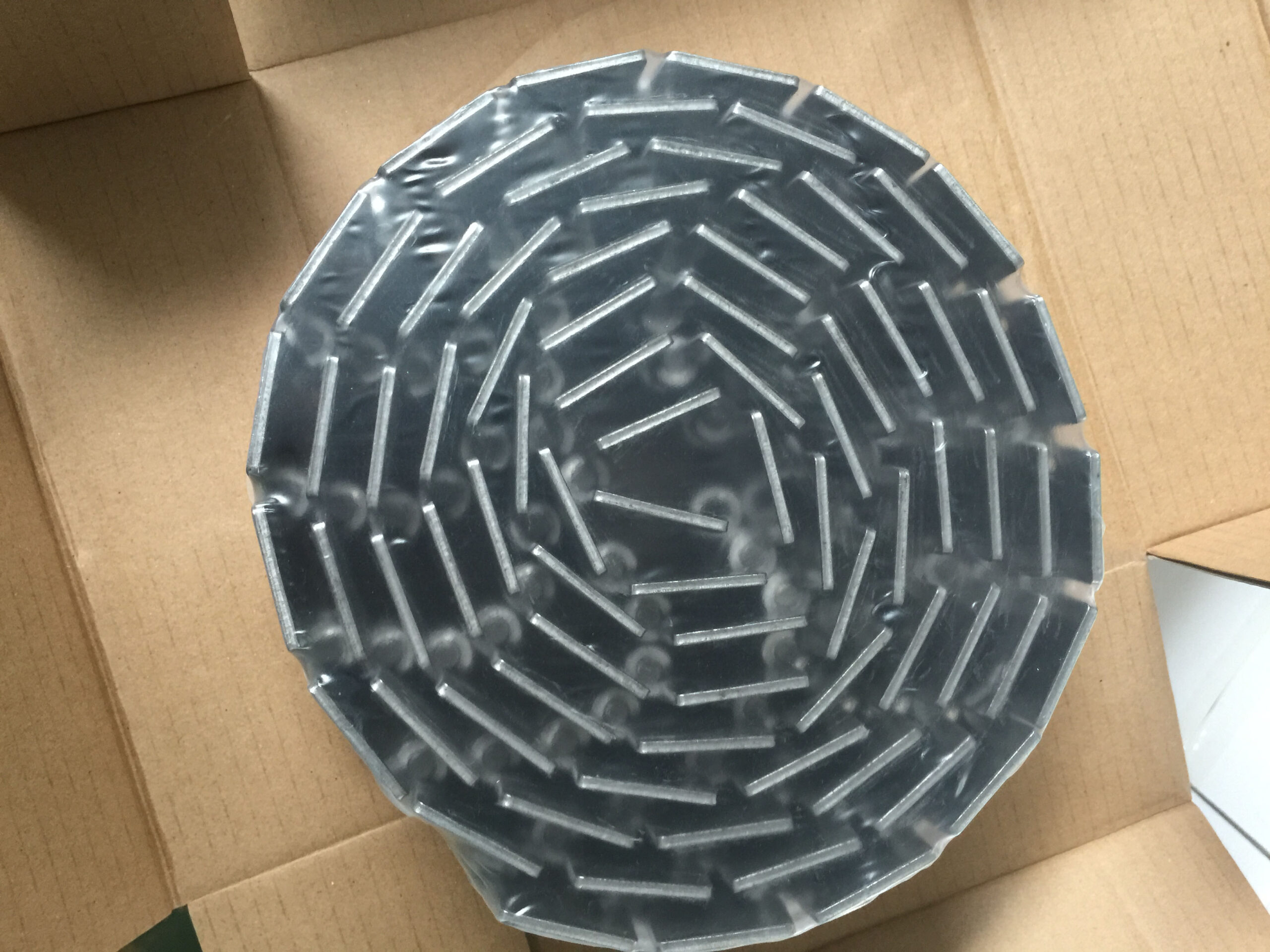

ss812-5-2
