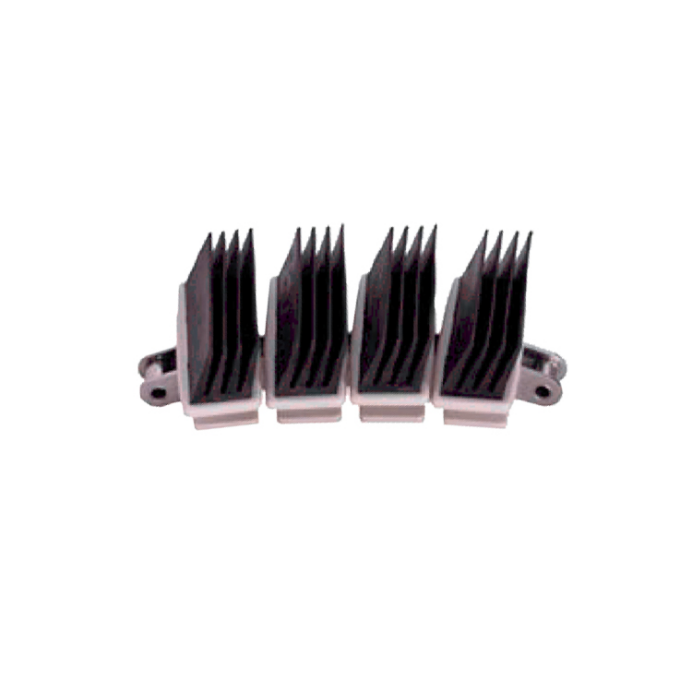

1873-G4-Finger gripper chains plastic tab

Short Description:

1873-G4 Finger Gripper Chains supplied with molded rubber inserts,
Base Roller Chains in CS Carbon Steel #60 12A, Stainless Steel Roller Chain 12A, used for side grip, vertical conveyor of cans or bottles

Moulded rubber material: natural rubber

Plastic material: POM

Metal material: Stainless steel

Roller base chains: standared 12A roller chains

Material: stainless steel or carbon steel

Roller base chains: standared 12A roller chains

Max speed: 80 m/min lubrication: 50m/min dry

Working load: 3200N ( mat.: CS) , 1600N (mat.: SS)

Max conveying length: 30m (mat.: CS ), 24m(mat.: SS)

Send email to us

Product Detail

Product Tags

Parameter

1873 4-Finger gripper chains plastic tab

Chain Type		Plate Width		Reverse Radius		Radius (min)	Working Load(Max)
Carbon Steel	Stainless Steel	mm	inch	mm	inch	mm	mm	inch
1873TCS-G4-K325	SJ-1873TSS-G4-K325	82.6	3.25	305	12	356	3400	765
1873TCS-G4-K450	SJ-1873TSS-G4-K450	114.3	4.50	305	12	356	3400	765

Advantages

The chain is designed with plastic flights assembled on a special roller chain with extended pins.
Metal bottom chain is suitable for heavy load and long distance transportation.
The chain plate body is clamped on the chain for easy replacement.
