2400 Radius Flush Grid Modular Plastic Conveyor Belt

Short Description:

2400 radius flush grid modular plastic conveyor belt mainly used in food packaging machinery or food packaging machinery conveyor

Product Detail

Product Tags

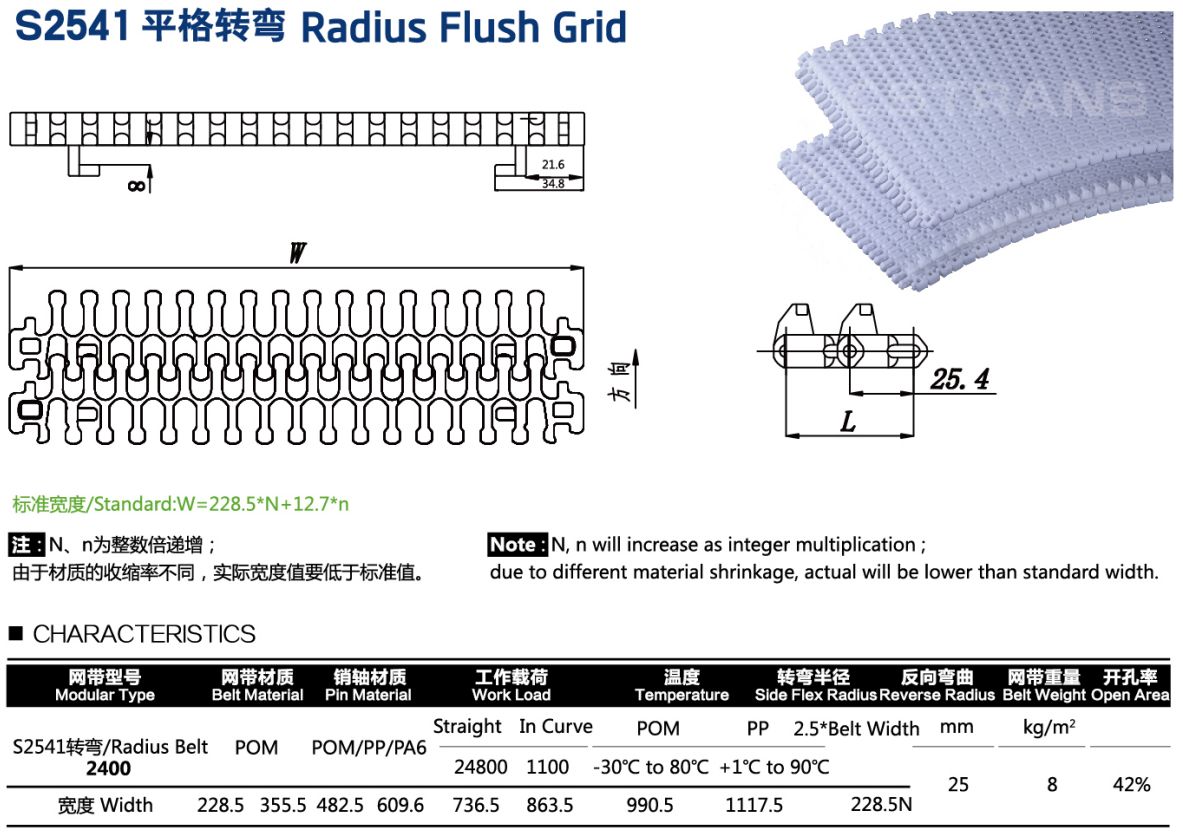

Parameter

saf
Modular Type 2400 Radius Belt
Standard Width(mm) 228.5*N+12.7*n

Note:N,n will increase as integer ultiplication:due to different material shrinkage,actual will be lower than standard width
Width(mm) 228.5 355.5 482.5 609.6 736.5 863.5 990.5 1117.5 228.5N
Pitch(mm) 25.4
Belt Material POM
Pin Material POM/PP/PA6
Work Load Straight:24800 In Curve:1100
Temperature POM: -30C° to 80C° PP:+1C°to 90C°
In Side Turing Radius 2.5*Belt Width
Reverse Radius(mm) 25
Open Area 42%
Belt Weight(kg/) 8

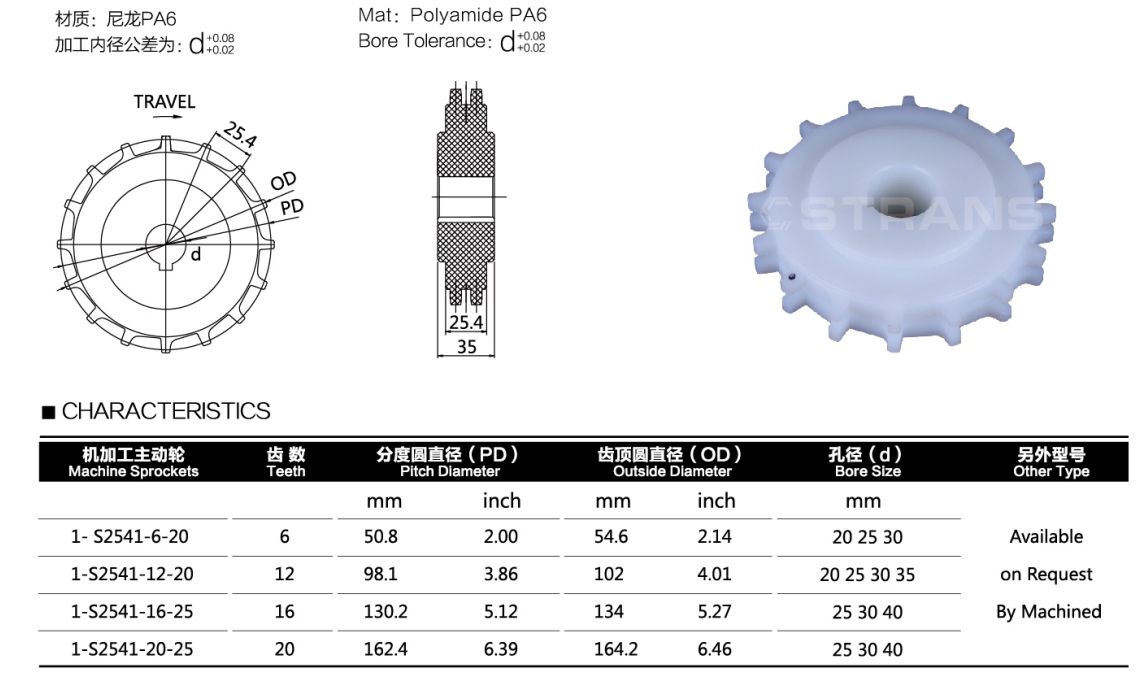

2400 Machined Sprockets

faf
Machined Sprockets Teeth Pitch Diametet(mm) Outside Diameter Bore Size Other Type
mm Inch mm Inch mm Available on request

By Machined

1-S2541-6-20 6 50.8 2.00 54.6 2.14 20 25 30
1-S2541-12-20 12 98.1 3.86 102 4.01 20 25 30 35
1-S2541-16-25 16 130.2 5.12 134 5.27 25 30 40
1-S2541-20-25 20 162.4 6.39 164.2 6.46 25 30 40

Application

1. Glass industry tobacco industry, logistics industry,medicine and chemical industry
2. Beverage industry
3. Fruit & vegetable & dairy & applications:inspection tables and packaging lines
4. Bakery applications: cooling lines and packing lines ,raw dough handling
5. Food industry

6. Meat industry
7. Can making/filling lines and accumulation tables
8. Seafood applications
9. Other industries

Advantages

1. Replace traditional converyor belt
2. Easy to assemble,easy to replace ,low maintenance cost
3. Strong wear resistance, high temperature resistance, cold resistance and oil resistance
4. Standardard size and customization size both available.
5. Good after-sales service
6. Long life.
7. Quality reliable.

Physical and chemical properties

Acid and alkali resistance (PP)

2400 flat grid turning mesh belt using pp material in acidic environment and alkaline environment has better transport capacity.

Antistatic electricity:
The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity.  Products with resistance greater than 10E12 ohms are insulation products, which are prone to static electricity and cannot be discharged by themselves.

Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear.  Wear per unit area in unit time at a certain grinding speed under a certain load.

Corrosion resistance:
The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
