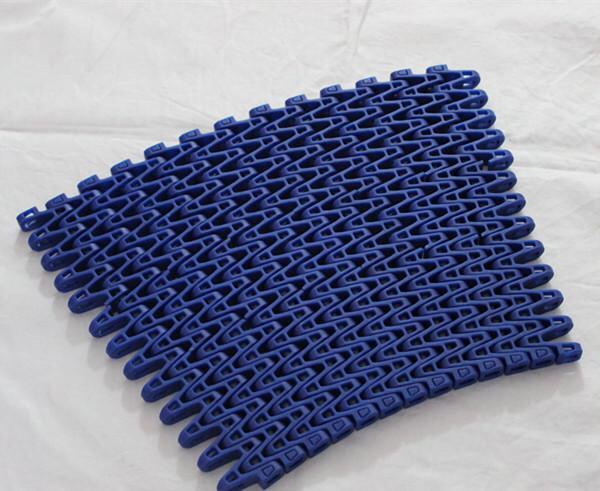

916 Radius Flush Grid Modular Plastic Conveyor Belt

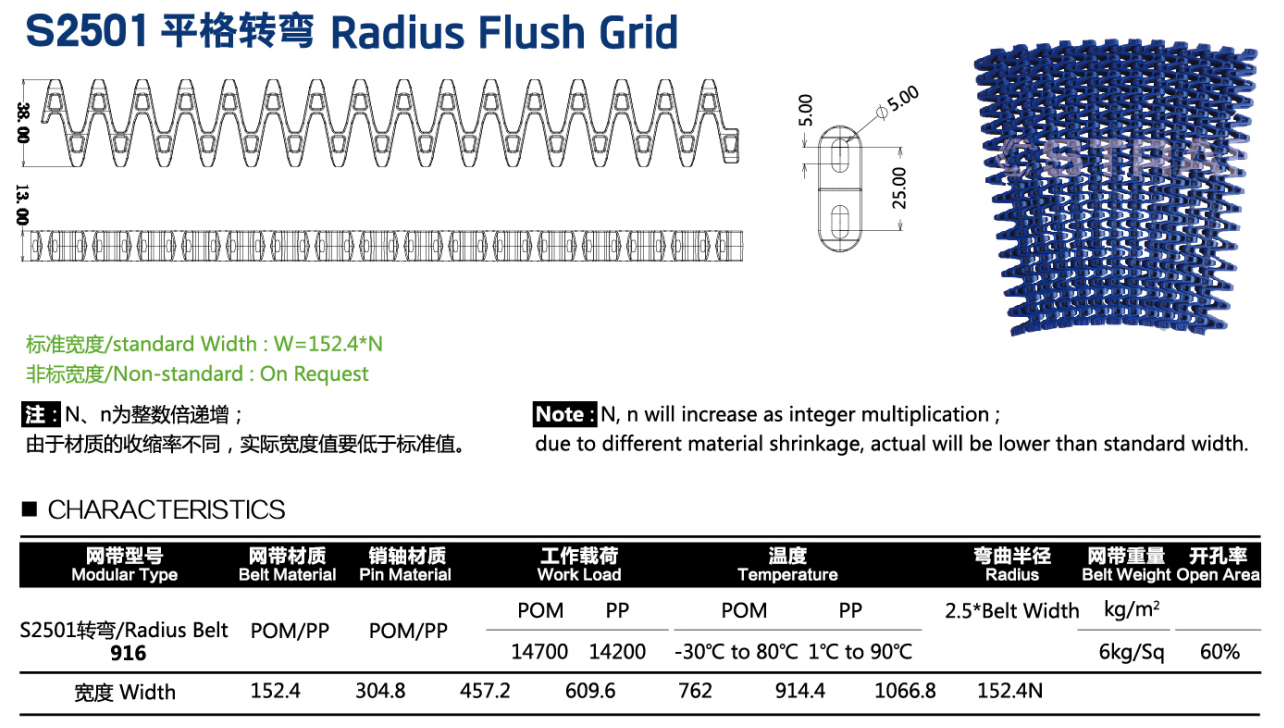

Parameter
|
Modular Type |
916 Radius belt |
|
|
Standard Width(mm) |
152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N
|
Note:N,n will increase as integer ultiplication:due to different material shrinkage,actual will be lower than standard width |
|
Non-standard Width |
On request. |
|
|
Pitch(mm) |
25.00 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP |
|
|
Work Load |
POM:14700 PP:14200 |
|
|
Temperature |
POM:-30C°to 80C° PP:1C° to 90C° |
|
| Radius |
2.5*Belt Width |
|
|
Open Area |
60% |
|
|
Belt Weight(kg/㎡) |
6 |
|
Application
1.Beverages
2.Aluminum cans
3.Medicines
4.Cosmetics
5.Food
6.daily necessities
7.Other industries
Advantage
1.Turnable
2.Strong and wear resistant
3.Long life
4.Convenient maintenance
5.Anti-corrosion
6.Antistatic
7.No need lubricate
