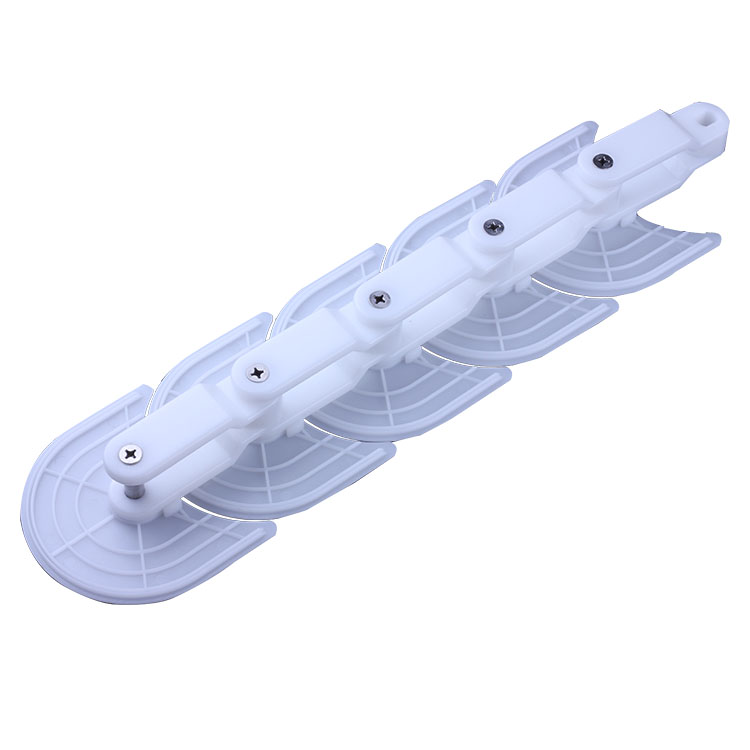

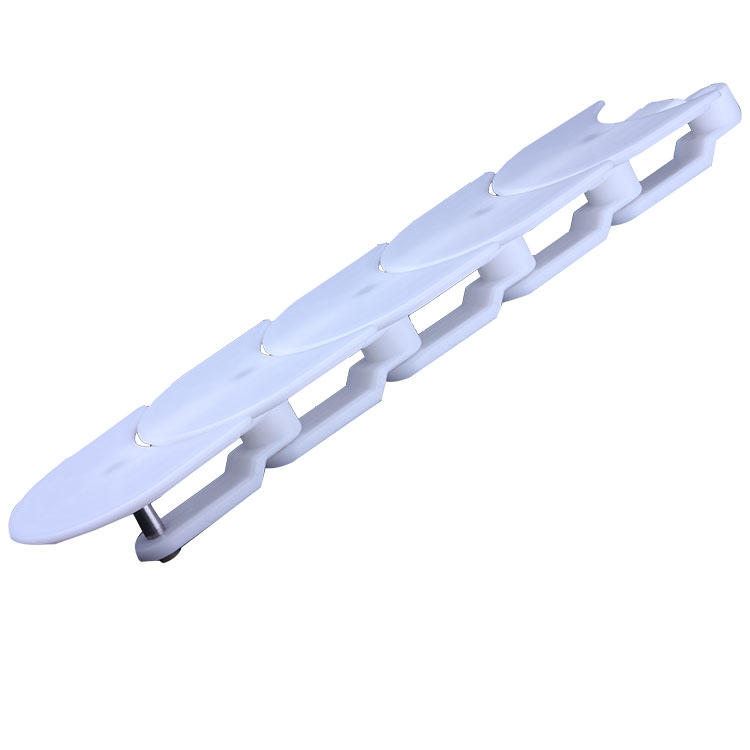

76 Sushi conveyor chains
Parameter
| Chain Type | Plate Width | Pitch | Backflex Radius(min) | Weight |
| mm | mm | mm | Kg/m | |
| 76 Sushi Chains | 114.3 | 76.2 | 150 | 1.76 |
76 Machined Sprockets
| Machine Sprockets | Teeth | Pitch Diameter | Outside Diameter | Center Bore |
| 1-76-10-25 | 10 | 246.59 | 246.5 | 25 30 35 40 |
| 1-76-11-25 | 10 | 270.47 | 270.4 | 25 30 35 40 |
| 1-76-12-25 | 12 | 294.4 | 294.4 | 25 30 35 40 |
Description
Benefit:
- The special links and pins offer the highest possible working load, important for the rough conditions these chains work in.
-Easy cleaning makes is suitable for dirty conditions.
Operation temperature:-35-+90℃
Allowed max speed:50m/min
The longest distance: 15M
Pitch:76.2mm
Width:114.3mm
Pin material: stainless steel
Plate material: POM
Packing:10 feet=3.048 M/box 13pcs/M
Advantages
1.Suitable for catering rotary conveyor line.
2.Conveyor chain rotation without clearance, avoid foreign matter stuck.
3.Hinged pin shaft connection, can increase or decrease the chain joint.
