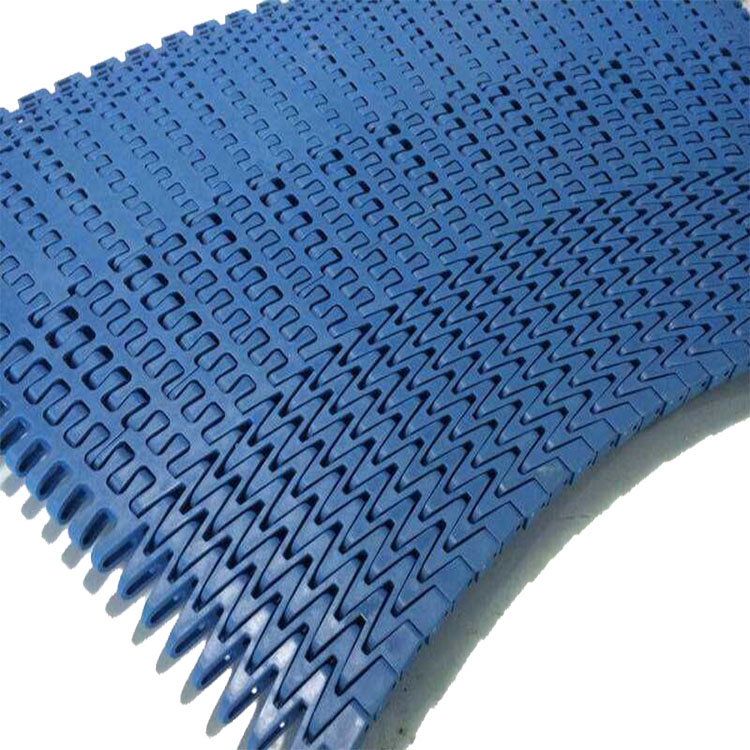

1255 1265 1275 flush grid modular plastic turning curve conveyor belt

Short Description:

1255 1265 1275 flush grid modular plastic turning curve conveyor belt provides solutions for all bending situations.  Used in food, beverage, packaging and other industries,39% opening rate and design for easy cleaning, the surface has the best supporting capacity, the smallest internal turning radius can reach 1.2 times.

Product Detail

Product Tags

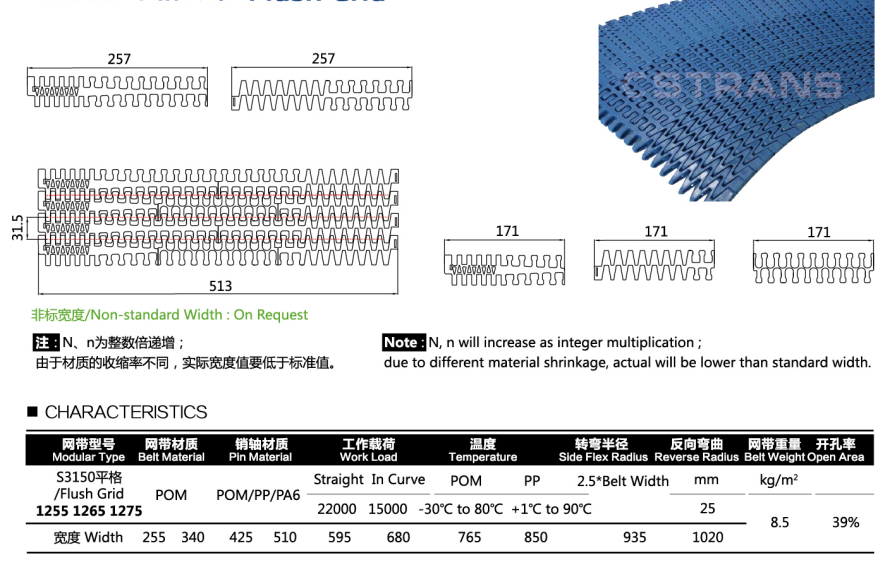

Parameter

Modular Type 1255 1265 1275
Standard Width(mm) 255 340 425 510 595 680 765 850 935 1020
Non-standard Width On request
Pitch(mm) 31.5
Belt Material POM
Pin Material POM/PP/PA6
Work Load Straight:22000 In Curve:15000
Temperature POM:-30°~ 80° PP:+1°~90°
Side Flex Radius 2.5*Belt Width
Reverse Radius(mm) 25
Open Area 39%
Belt Weight(kg/) 8.5

Application

Plastic modular conveyor belt, made of food-grade materials, Majority used for the packaging of snacks and other food.

Modular belt flexible design features, can realize the beverage industry single channel conveying, multi-channel conveying, stable conveying, stacking conveying.

The flush grid belt conveyor with long distance transition function, can be horizontal transport, but also can be inclined to transport.  The more simple structure of the grid belt conveyor the more easy to maintain and extend the service life, Safe and smooth transmition, Minimize the damage of products to reduce the cost. The development of flush grid belt conveyor must suitable for the needs of customers production, Product design also according to the different production of different improvements and development, Has been used in the major supermarkets, restaurants such buffet, Its improvement greatly facilitates our daily lifeSo flush grid belt conveyor will appear anywhere in the worldSo it's definitely a good helper for efficient production.

Advantages

1.Reducing replacement cost than traditional conveyor belt.

2.Easy replacement for damaged parts, saving maintenance time and costs.

3.strong wear resistance, high temperature resistance, cold resistance and oil resistance.

4.Reliable after-sales service.
