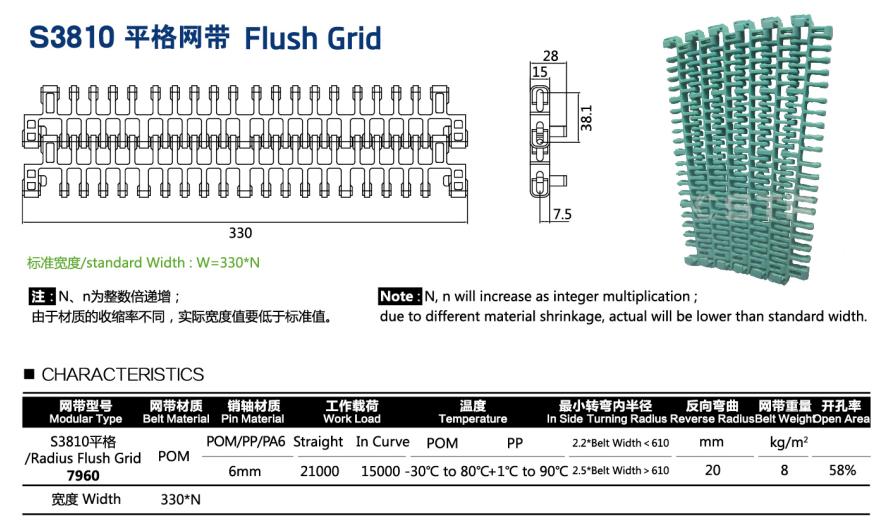

7960 Radius Flush Grid Modular Plastic Conveyor Belt
Parameter
| Modular Type | 7960 Radius Flush Grid | |
| Standard Width(mm) | 330*N | Note:N will increase as integer ultiplication:due to different material shrinkage,actual will be lower than standard width. |
| Pitch(mm) | 38.1 | |
| Belt Material | POM | |
| Pin Material | POM/PP/PA6 | |
| Work Load | Straight:21000 In Curve:15000 | |
| Temperature | POM:-30C° to 80C° PP:+1C°to 90C° | |
| In Side Turing Radius | 2.2*Belt Width＜610 2.5*Belt Width＞610 | |
| Reverse Radius(mm) | 20 | |
| Open Area | 58% | |
| Belt Weight(kg/㎡) | 8 | |

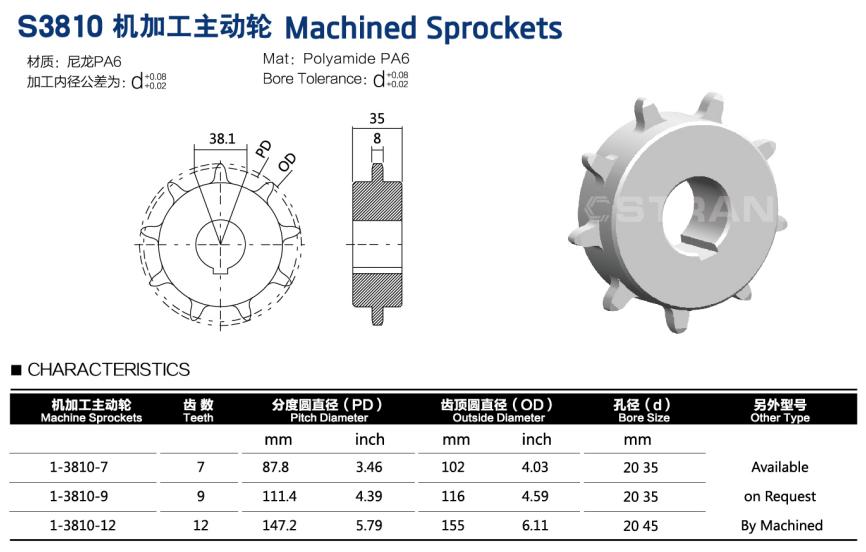

7960 Machined Sprockets
| Machined Sprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | ||
| mm | Inch | mm | Inch | mm | Available on request
By Machined |
||
| 1-3810-7 | 7 | 87.8 | 3.46 | 102 | 4.03 | 20 35 | |
| 1-3810-9 | 9 | 111.4 | 4.39 | 116 | 4.59 | 20 35 | |
| 1-3810-12 | 12 | 147.2 | 5.79 | 155 | 6.11 | 20 45 | |
Application
1. Food(Meat & Pork;Poultry, Seafood, Beverage/Bottling, Bakery, Snack food, Fruit&Vegetables.
2. Non food(Automotive, Tire manufacturing, Packaging, Printing/paper, Postal).
3. Other industries.
Advantage
1. Easy to assembly and maintain
2. wear resistance and Oil Resistant
3. High performance
4. High mechanical strength
5. Factory direct sell
6. Customization is available
7. Both conveyor and related accessory are available.
8. Good after-sale service
Physical and chemical properties
7960 turning flat grid suitable for large sterilization machine, large bottle storage table
Applicable temperature of POM is -30℃~80℃
Applicable temperature of Polypropylene PP 1℃~90℃
Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.
POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
