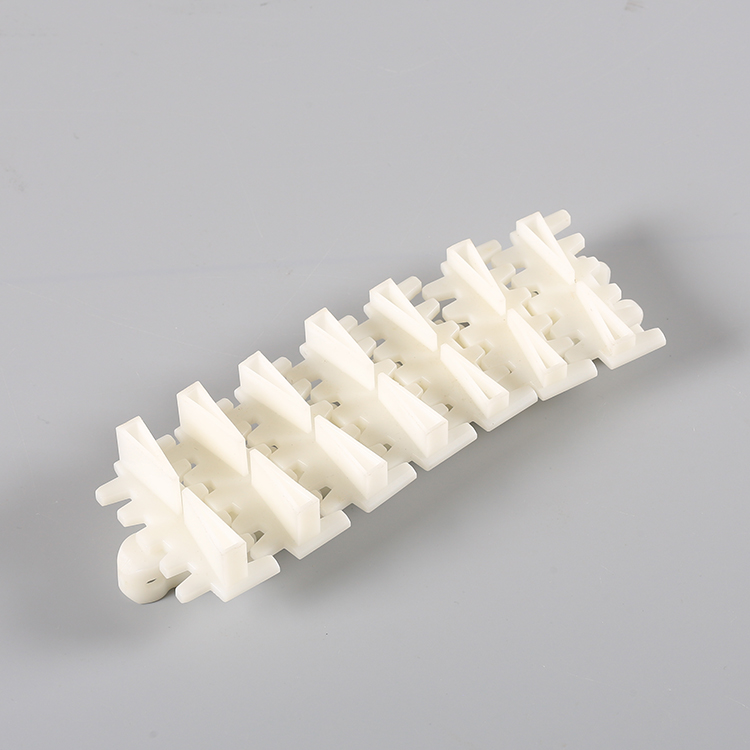

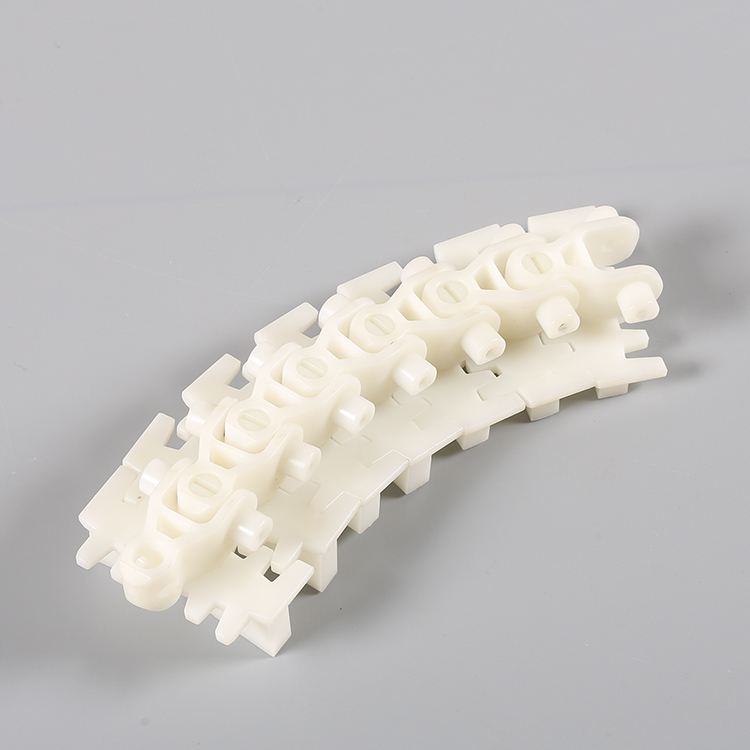

63C flexible plain chains with flight
Parameter
| Chain Type | Plate Width | Working Load | Back Radius
(min) |
Backflex Radius(min) | Weight | |
| mm | inch | N(21℃) | mm | mm | Kg/m | |
| 63C
With flight |
63.0 | 2.50 | 2100 | 40 | 150 | 0.80-1.0 |
63 Machine Sprockets
| Machine Sprockets | Teeth | Pitch Diameter | Outside Diameter | Center Bore |
| 1-63-8-20 | 8 | 66.31 | 66.6 | 20 25 30 35 |
| 1-63-9-20 | 9 | 74.26 | 74.6 | 20 25 30 35 |
| 1-63-10-20 | 10 | 82.2 | 82.5 | 20 25 30 35 |
| 1-63-11-20 | 11 | 90.16 | 90.5 | 20 25 30 35 |
Application
It is suitable for manufacturing enterprises with high hygiene require-ments, small space and high automation.
It is widely used in pharmaceutical manufacturing, cosmetics, food and beverage, bearing manufacturing Pet bottles, Toilet papers, Cosmetics, Bearings, Mechanical parts, Aluminum canand other industries.
Advantage
It is suitable for the occasion of small load strength, and the operation is more stable.
The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
The tooth shape can achieve a very small turning radius.
The top is inlaid with hardened, wear-resistant steel plates. Can avoid the wear of conveyor chain on surface , suitable for metal blank parts and other conveying occasions.
The top can be used as a block or to hold the conveyor.
The flexible chain conveyor system can be big or small, flexible, simple operation, can be made into the holder, push, hanging, clamping various conveying mode,composition of aggregates, triage, triage, the confluence of a variety of functions, with all kinds of pneumatic, electric, motor control device,and according to the different needs of the user, the formation of various forms of production line.
