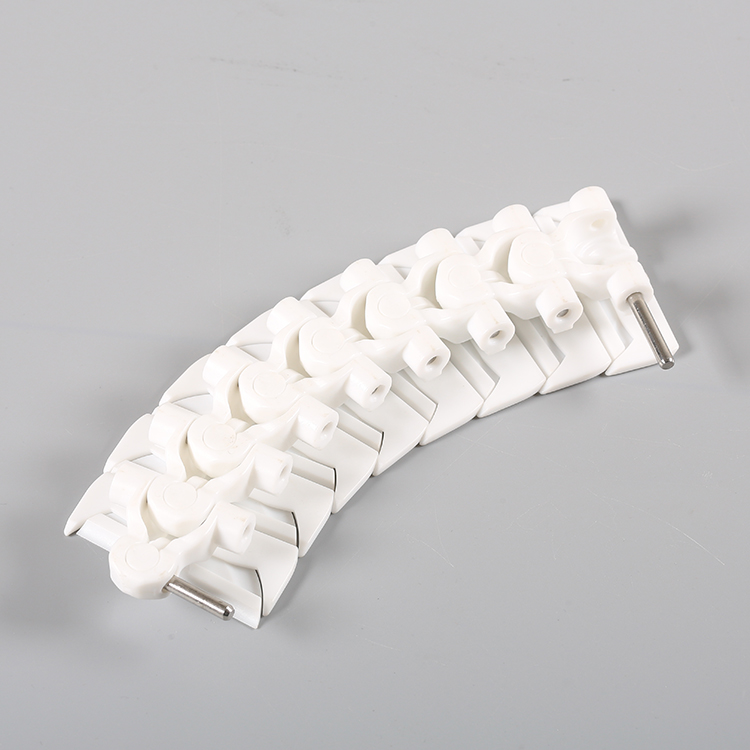

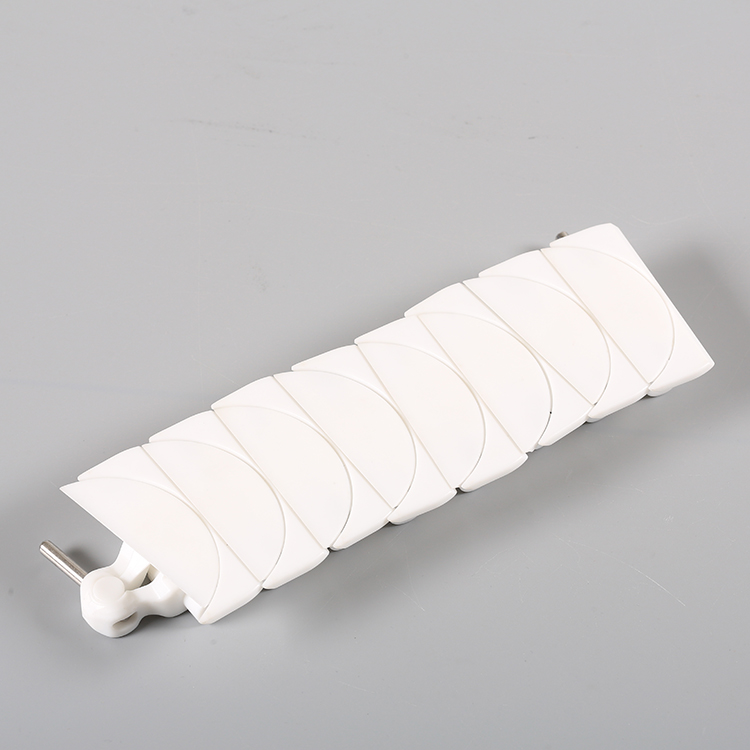

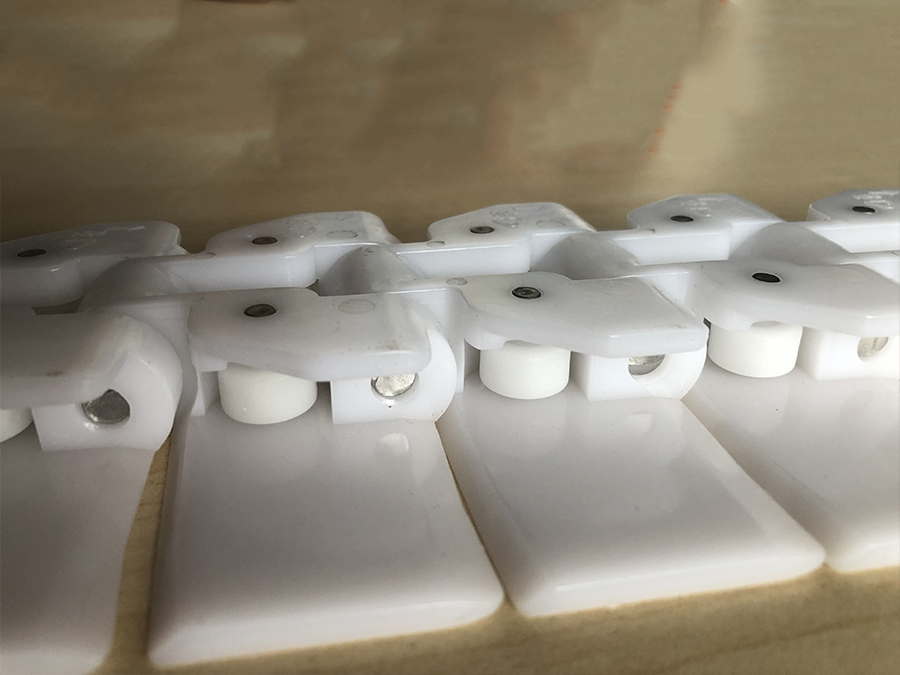

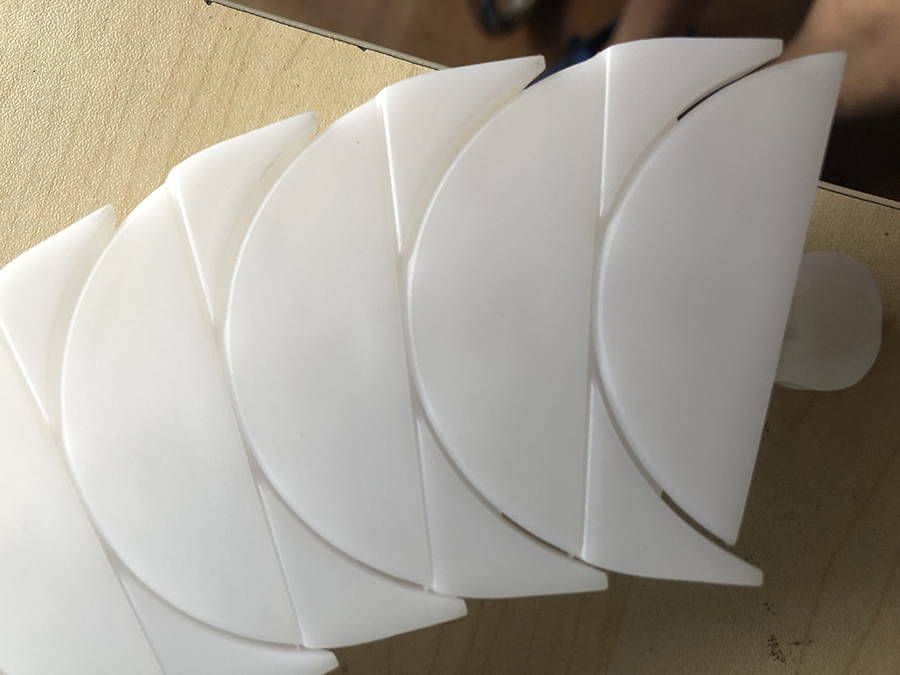

Plastic flexible seamless conveyor chain
Parameter

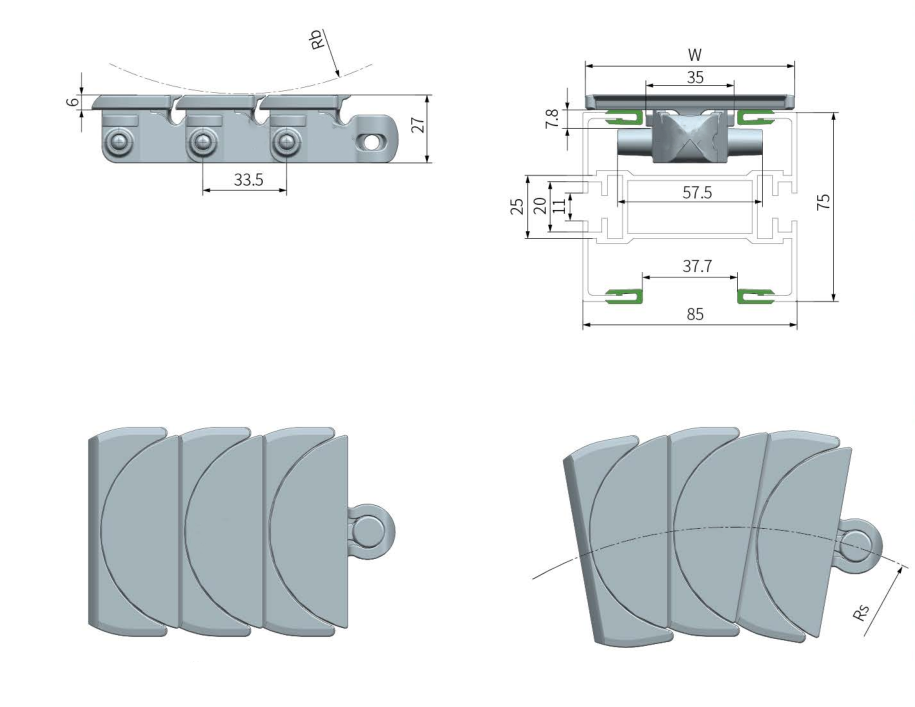

| Chain Type | Plate Width | Working Load | Back Radius(min) | Backflex Radius(min) | Weight | |
| mm | inch | N(21℃) | mm | mm | Kg/m | |
| 63A | 83 | 3.26 | 1250 | 40 | 160 | 1.25 |
Advantage
It is suitable for the occasion of small load strength, and the operation is more stable.
The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
The tooth shape can achieve a very small turning radius.
Application
Food and beverage, Pet bottles, Toilet papers, Cosmetics, Tobacco manufacturing, Bearings, Mechanical parts, Aluminum can.
