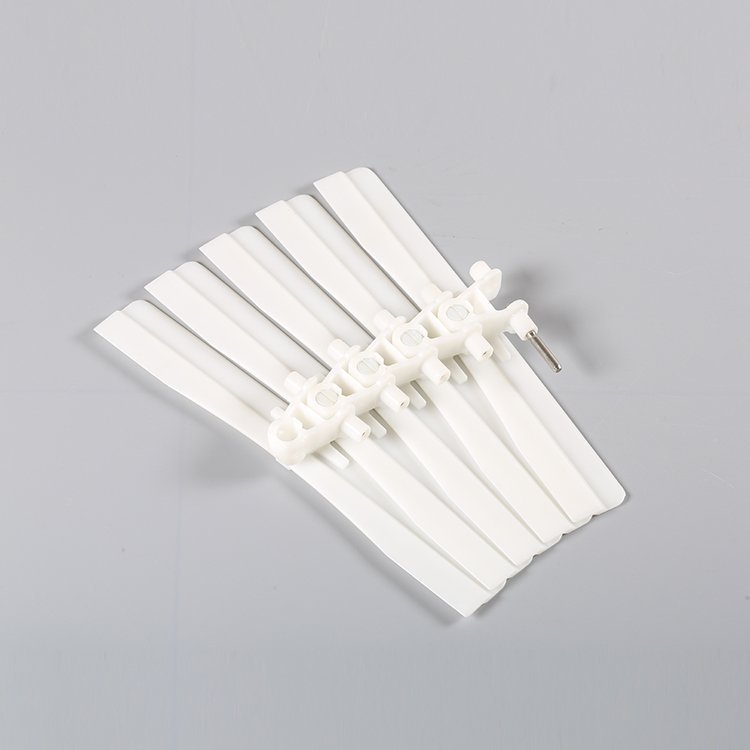

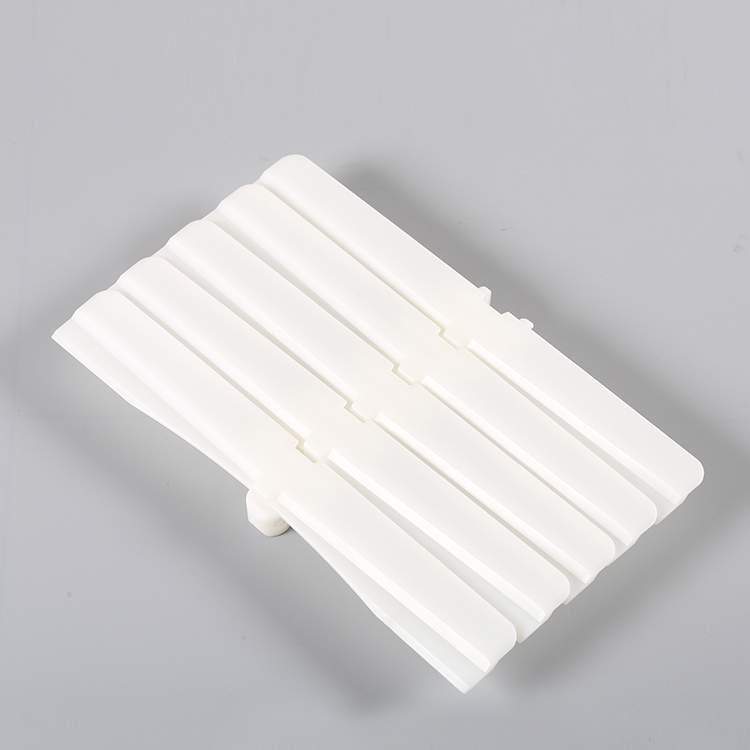

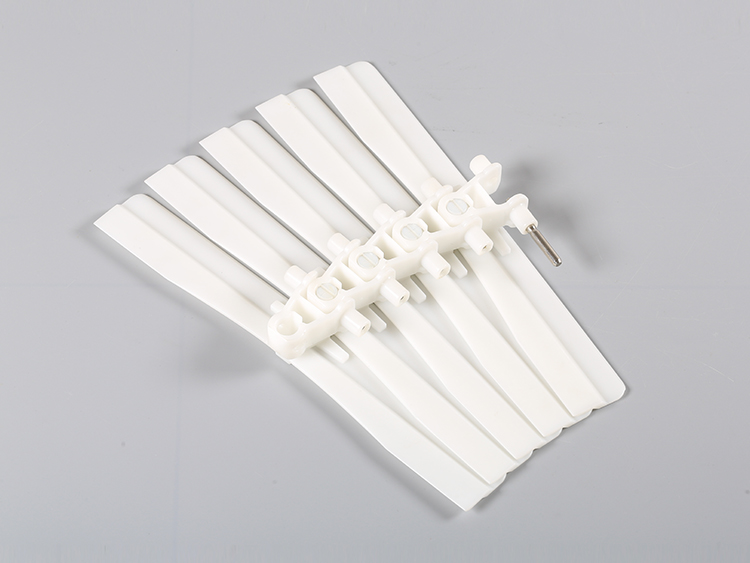

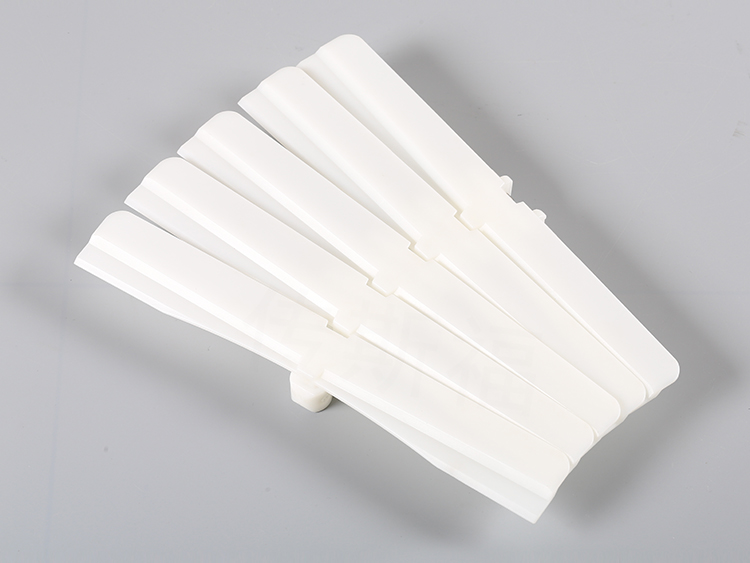

295 Flexible conveyor chains
Short Description
This is wide flexible flat top chain conveyor for products 25 to 300 mm wide Frame Width: 300 mm Chain Width: 295 mm Product Width: 25-300 mm Length: up to 30 m Curves: minimum radius of 160 mm Load: Up to 440 lbs Speed: Up to 165 fpm; Constant or Variable speed options
Parameter
| The longest distance | 12M |
| Max.speed | 50m/min |
| Working load | 2100N |
| Pitch | 33.5mm |
| Pin material | Austenitic stainless steel |
| Plate material | POM acetal |
| Temperature | -10℃ to +40℃ |
| Packing | 10 feet=3.048 M/box 30pcs/M |
Advantage
1. Suitable for the lifting and conveying of carton products. 2. Boss is to block, according to the size of the conveyor choose the appropriate boss spacing. 3. Center open hole through hole, custom bracket can be fixed. 4. Long life 5. Maintenance cost is very low 6. Easy to clean 7. Strong tensile strength 8. Reliable after-sale service
Application
1. Food and beverage 2. Pet bottles 3. Toilet papers 4. Cosmetics 5. Tobacco manufacturing 6. Bearings 7. Mechanical parts 8. Aluminum can
