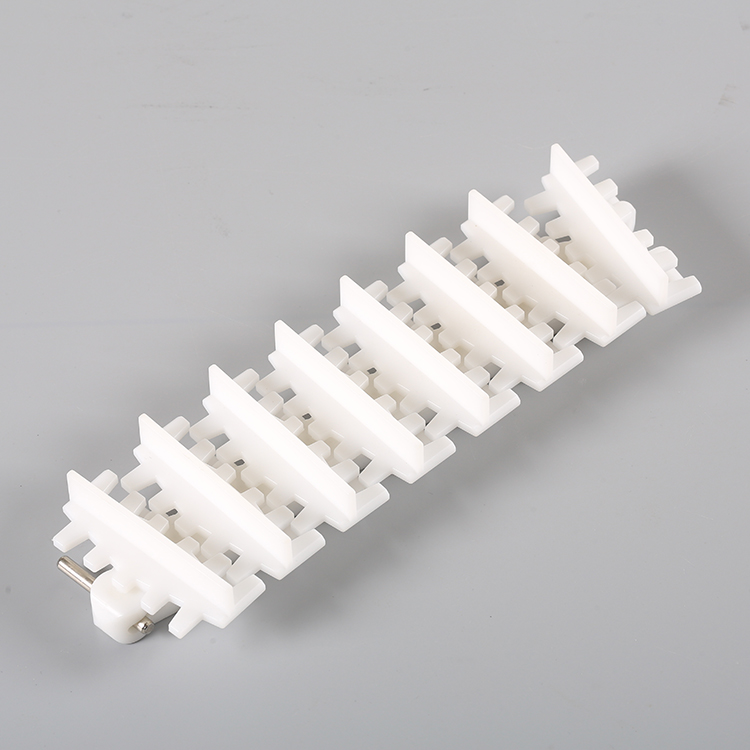

Plastic flexible conveyor chain with flight

Short Description:

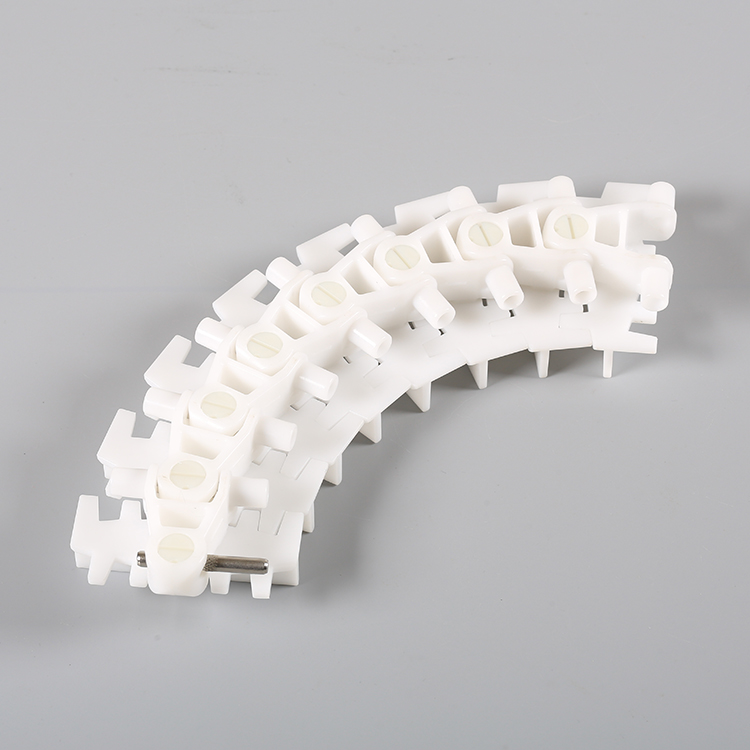

CSTRANS flexible chains are capable of making sharp radius bends in either the horizontal or the vertical plains with very low friction and low noise. cleated chain comes with flight on top.

Send email to us

Product Detail

Product Tags

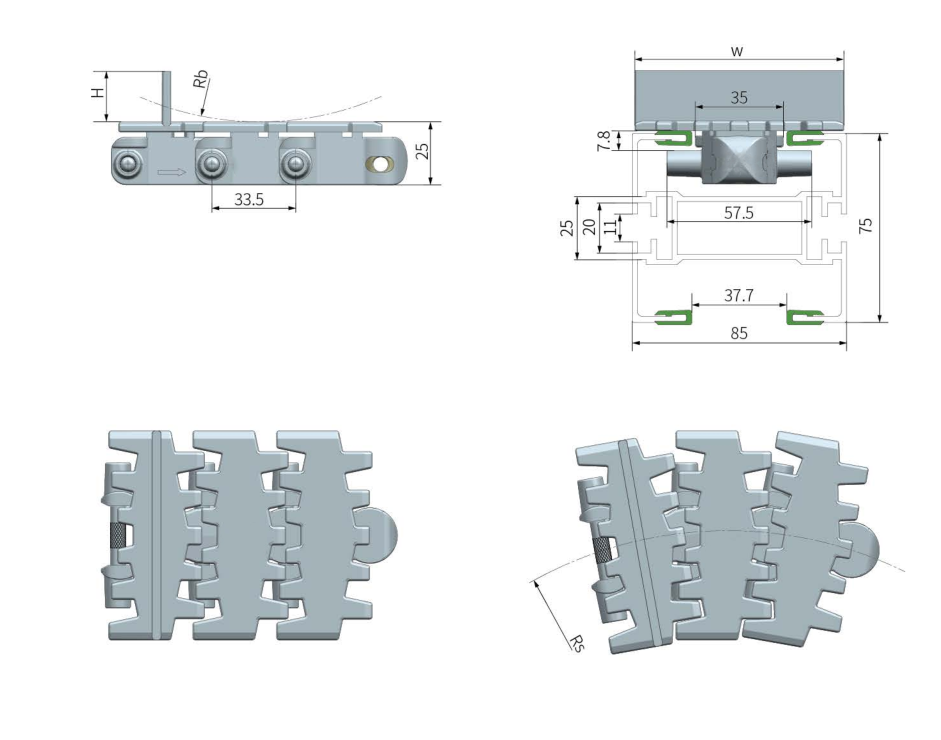

Parameter

Chain Type	Plate Width		Working Load	Back Radius(min)	Backflex Radius(min)	Weight
	mm	inch	N(21℃)	mm	mm	Kg/m
83	83	3.26	2100	40	150	0.80

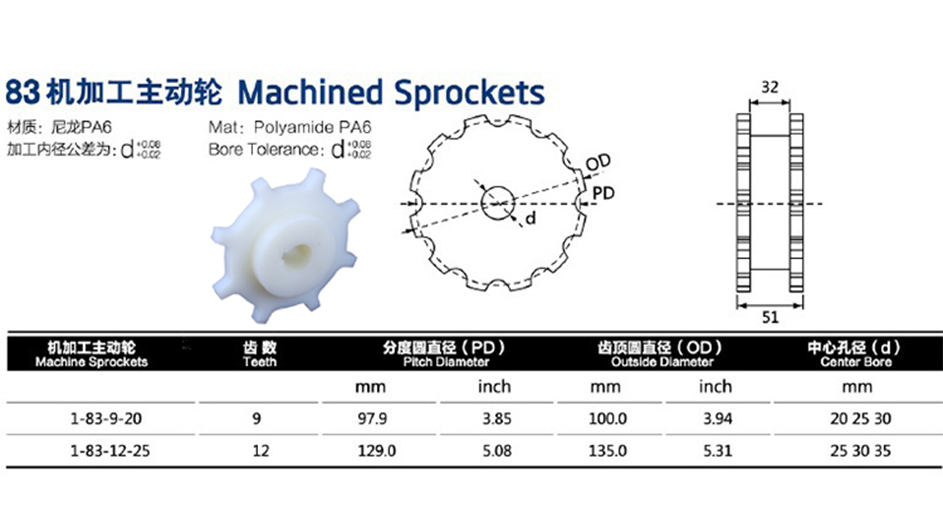

83 Machined Sprockets

Machine Sprockets	Teet	Pitch Diameter	Outside Diameter	Center Bore
1-83-9-20	9	97.9	100.0	20 25 30
1-83-12-25	12	129.0	135.0	25 30 35

Advantage

-The top is inlaid with hardened, wear-resistant steel plates.
- Can avoid the wear of conveyor chain on surface , suitable for metal blank parts and other conveying occasions.
-The top can be used as a block or to hold the conveyor.
-It is suitable for the occasion of small load strength, and the operation is more stable.
- The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
