Products

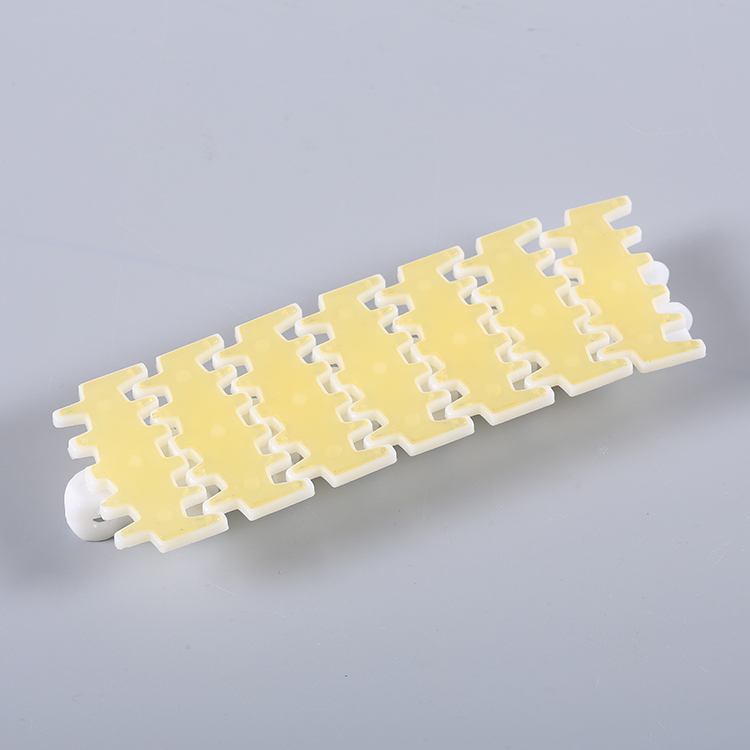

flexible top chain with friction
Short Description
The surface of the flexible chain plate is equipped with friction plates, and the anti-skid spacing is different, and the effect is different
Parameter

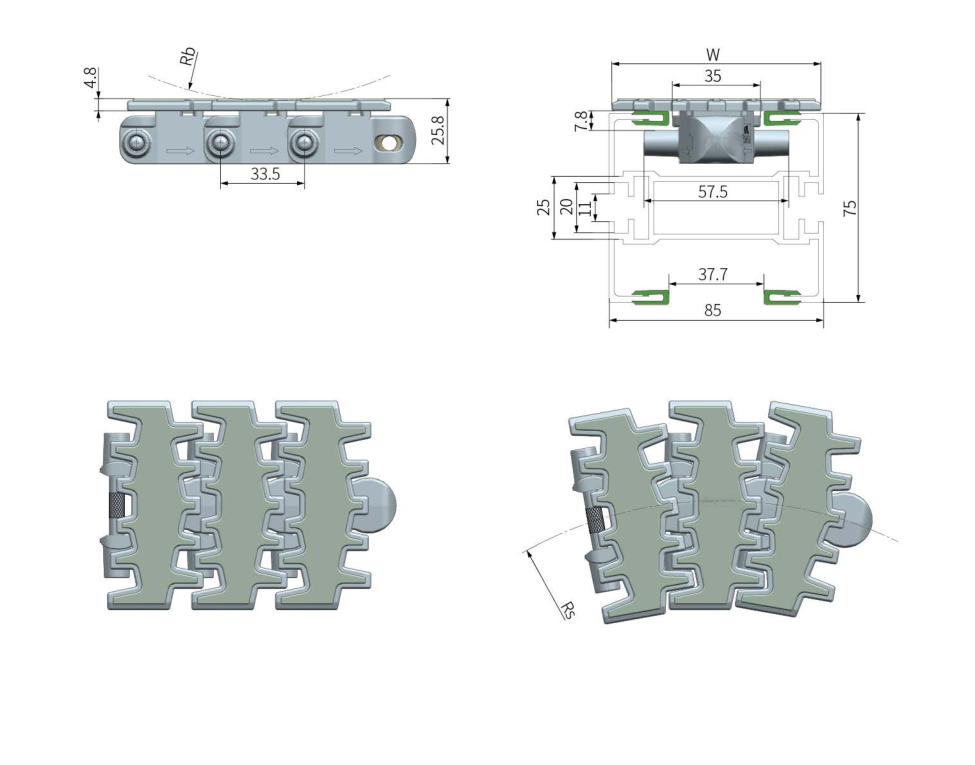

| Chain Type | Plate Width | Working Load | Back Radius(min) | Backflex Radius(min) | Weight | |
| mm | inch | N(21℃) | mm | mm | Kg/m | |
| 83F | 83.0 | 3.26 | 2100 | 40 | 150 | 0.80 |
83 Machine Sprockets
| Machine Sprockets | Teet | Pitch Diameter | Outside Diameter | Center Bore |
| 1-83-9-20 | 9 | 97.9 | 100.0 | 20 25 30 |
| 1-83-12-25 | 12 | 129.0 | 135.0 | 25 30 35 |
Advantage
The tooth shape can achieve a very small turning radius. - Conveyor line has template type buckle assembly which makes it easier to assemble. -Long life - Maintenance cost is very low - Easy to clean - Strong tensile strength -Reliable after-sale service
Application
Food and beverage, Pet bottles, Toilet papers, Cosmetics, Tobacco manufacturing, Bearings, Mechanical parts, Aluminum can.
