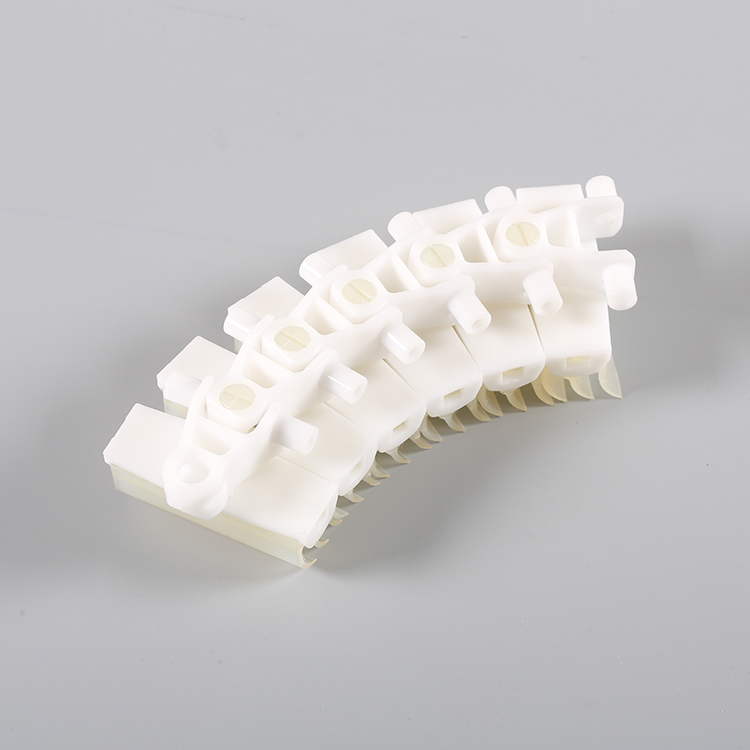

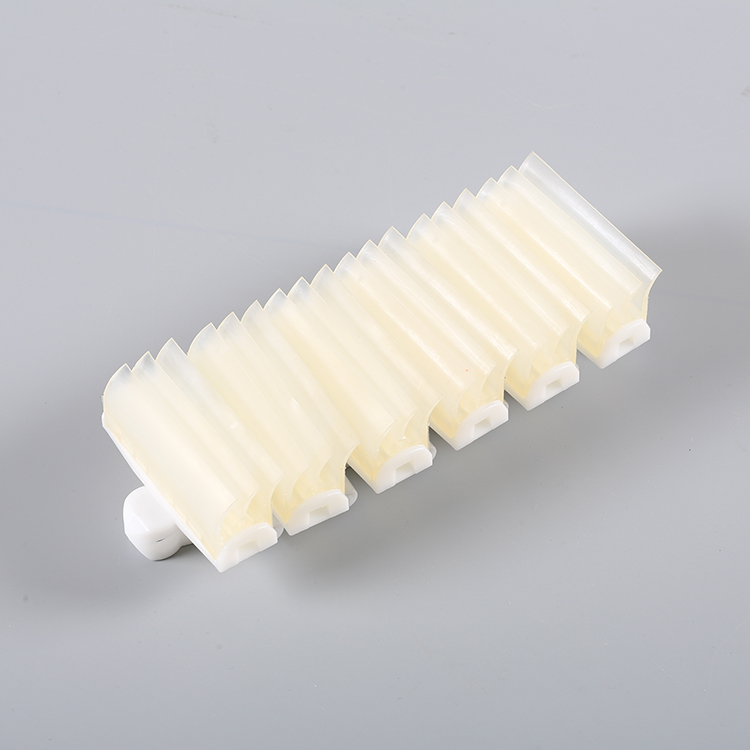

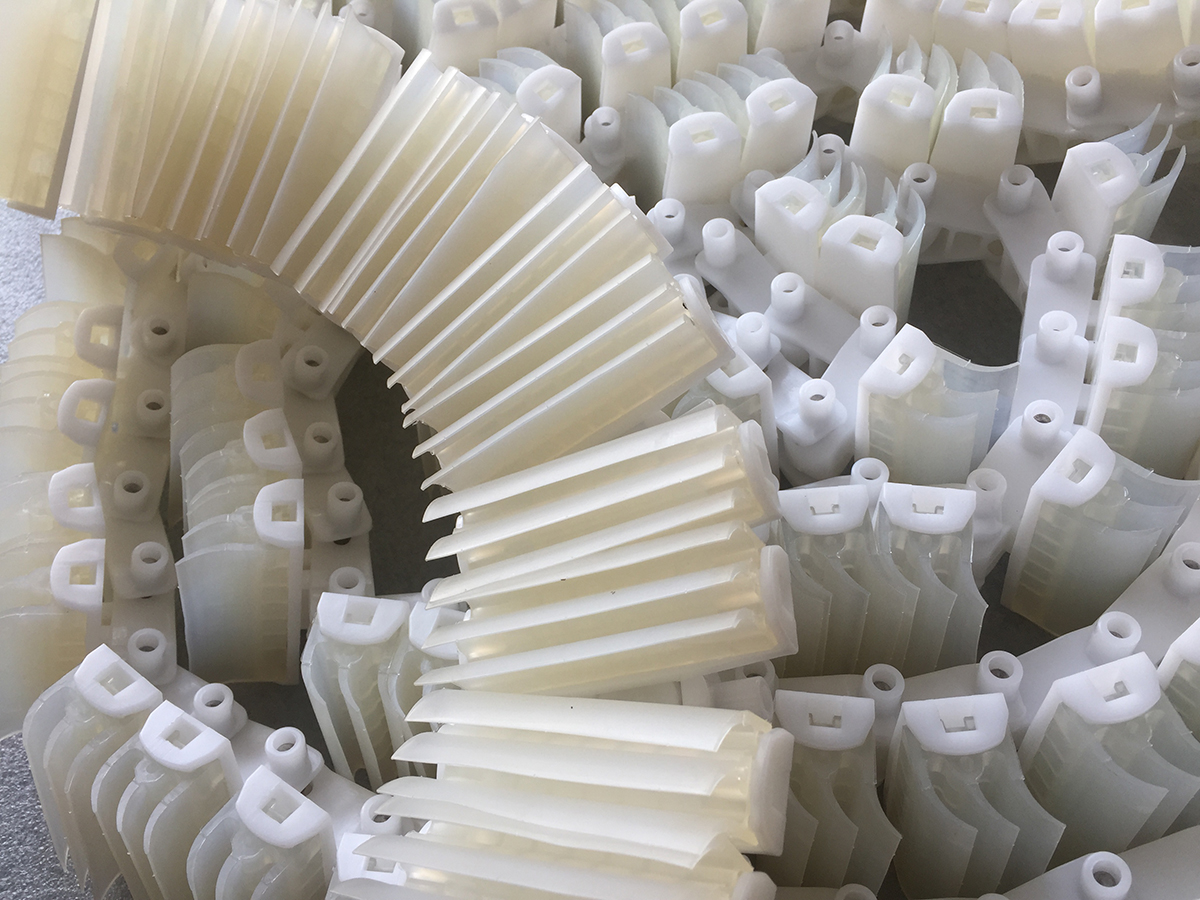

Gripper flexible conveyor chain
Short Description

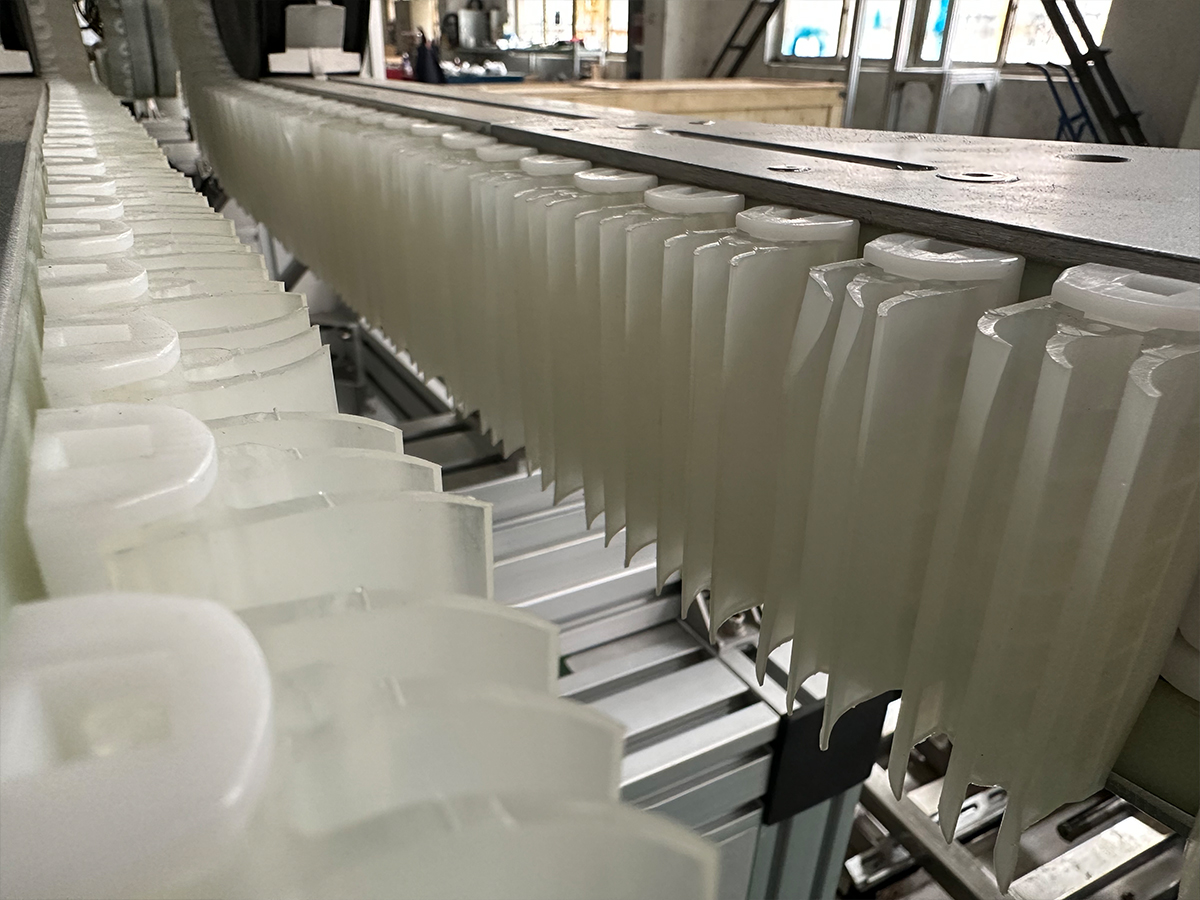

Gripper Conveyor is suitable for the products with fixed shape, such as bottles , cans , big barrels etc lifting up or lifting down. To make full use of the limited space to connected with other equipment in the production linkage to transport products,to ensure continuous production .
Parameter

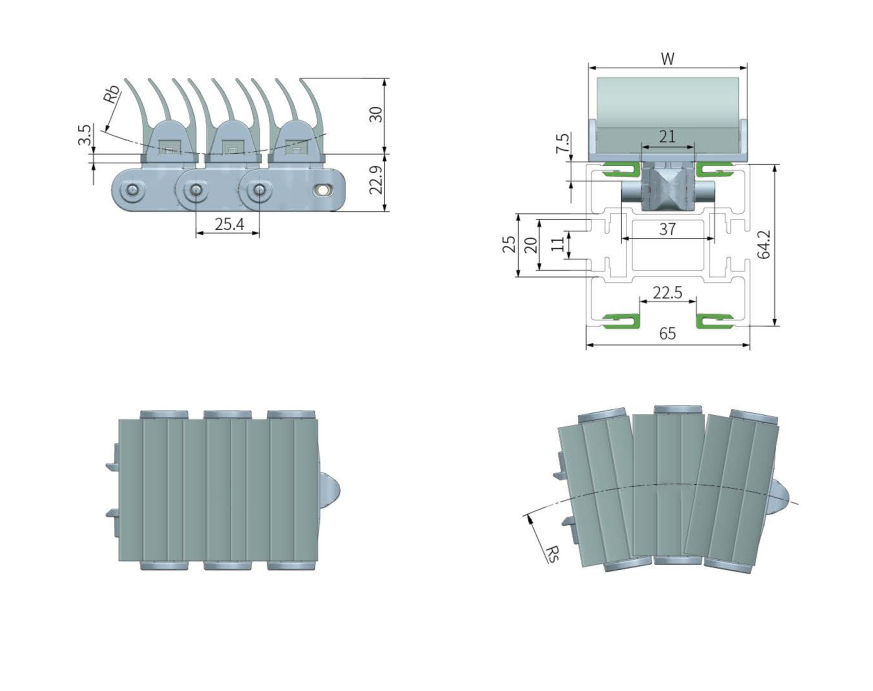

| Chain Type | Plate Width | Working Load | Back Radius(min) | Backflex Radius(min) | Weight | |
| mm | inch | N(21℃) | mm | mm | Kg/m | |
| 63G | 63.0 | 2.50 | 2100 | 40 | 150 | 0.80 |

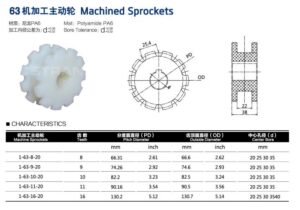

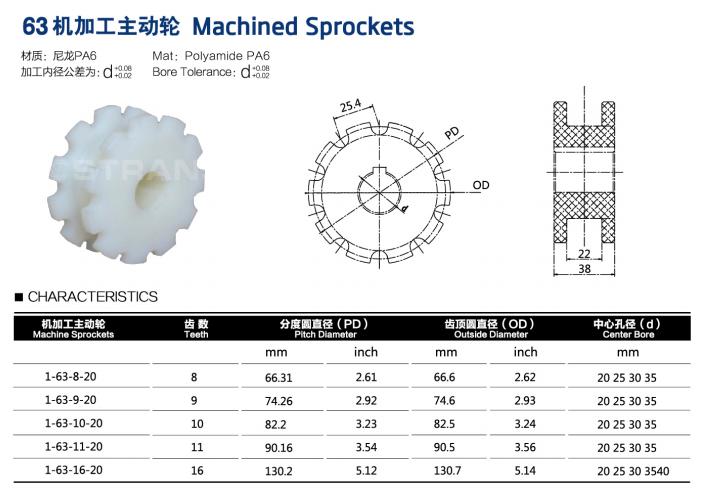

63 Machined Sprockets
| Machine Sprockets | Teeth | Pitch Diameter | Outside Diameter | Center Bore |
| 1-63-8-20 | 8 | 66.31 | 66.6 | 20 25 30 35 |
| 1-63-9-20 | 9 | 74.26 | 74.6 | 20 25 30 35 |
| 1-63-10-20 | 10 | 82.2 | 82.5 | 20 25 30 35 |
| 1-63-11-20 | 11 | 90.16 | 90.5 | 20 25 30 35 |
| 1-63-16-20 | 16 | 130.2 | 130.7 | 20 25 30 35 40 |
Advantage
It is suitable for the occasion of small load strength, and the operation is more stable. The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering. The tooth shape can achieve a very small turning radius.
Application
Bottles
Cans
Big Barrel
Carton Box
Basket,etc
