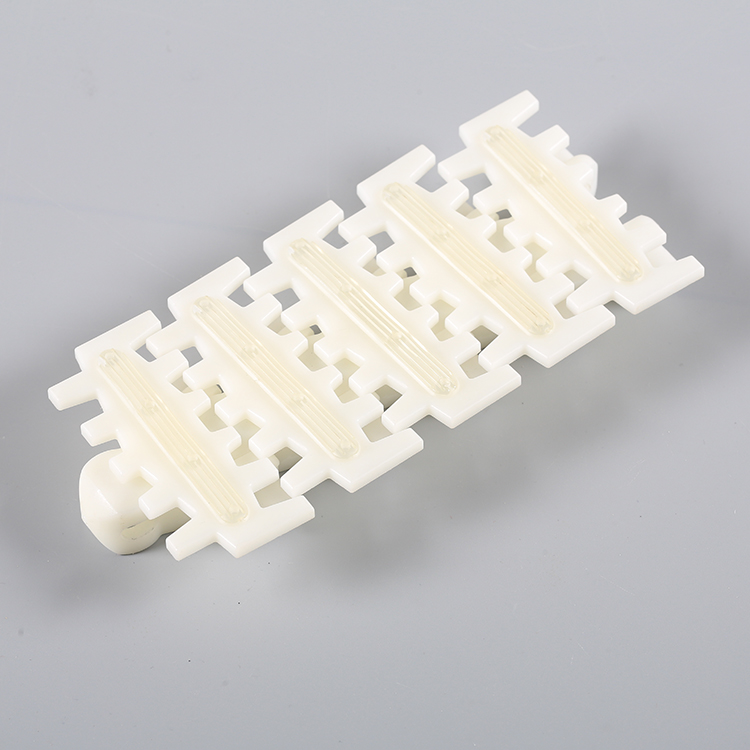

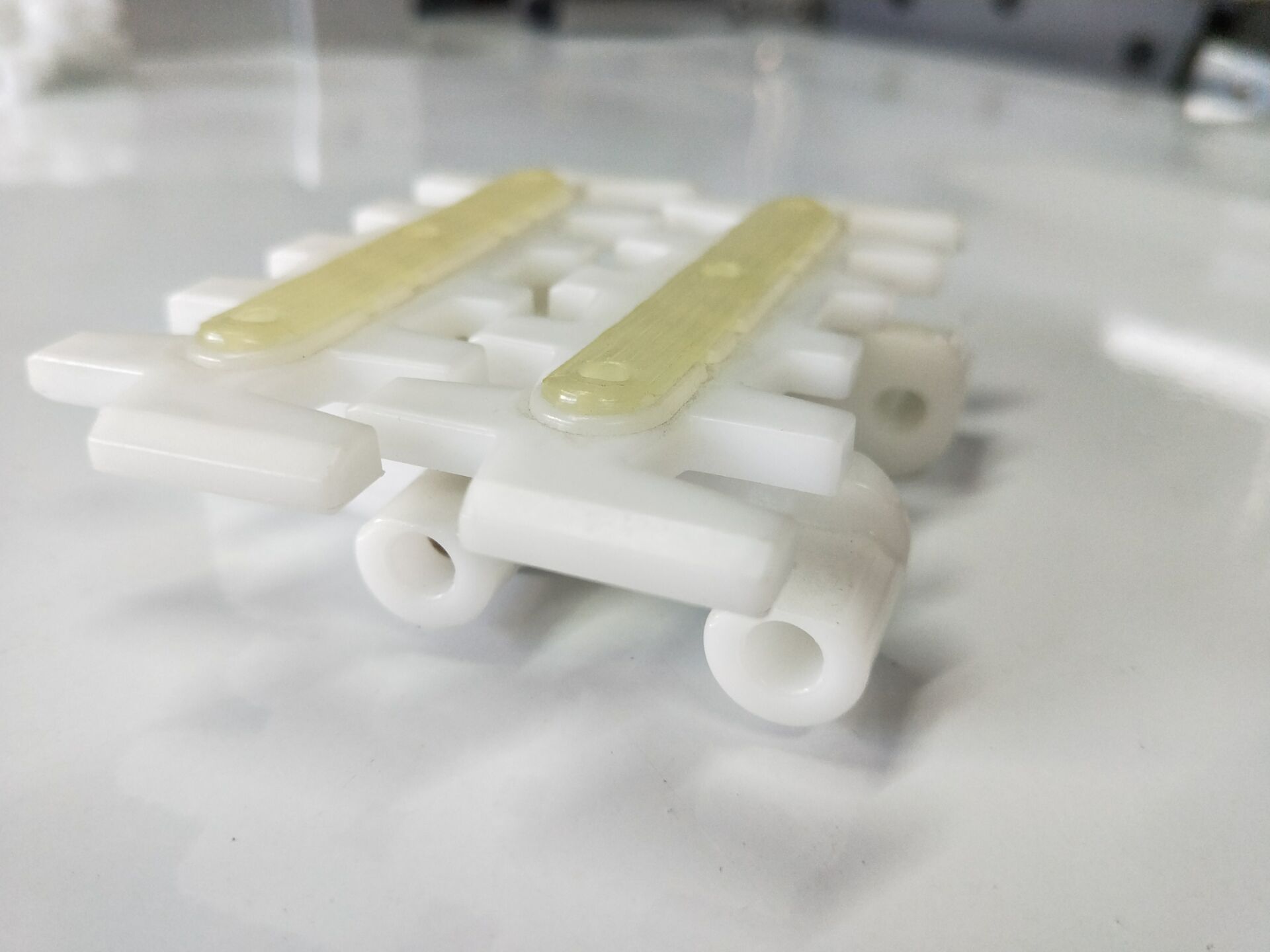

flexible conveyor chain with Friction

Short Description:

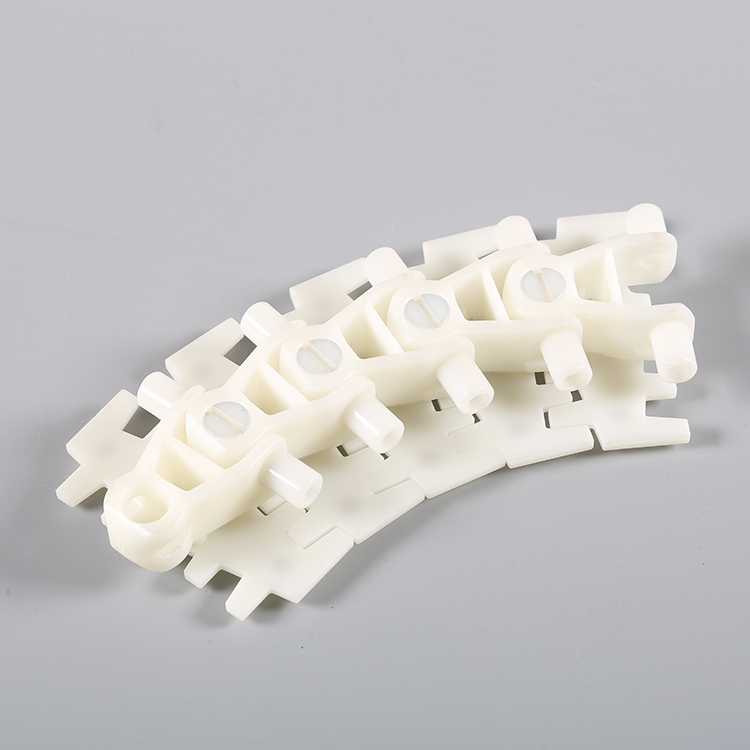

CSTRANS flexible chains are capable of making sharp radius bends in either the horizontal or the vertical plains with very low friction and low noise.

Send email to us

Product Detail

Product Tags

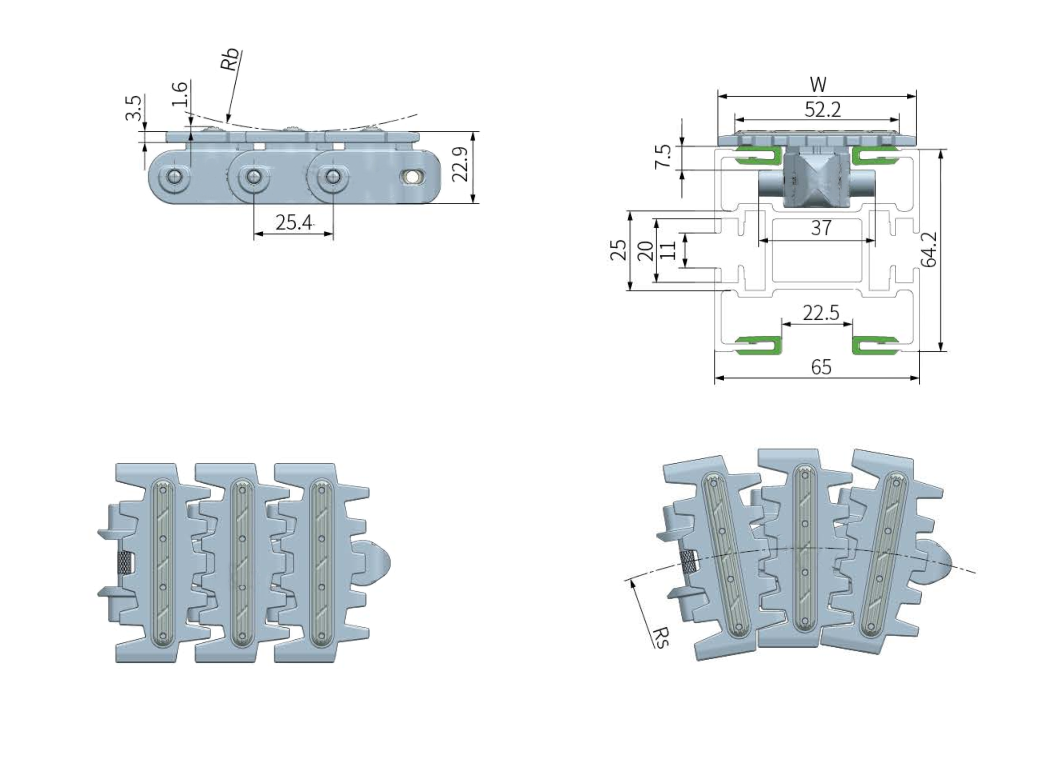

Parameter

Chain Type	Plate Width		Working Load	Back Radius(min)	Backflex Radius(min)	Weight
	mm	inch	N(21℃)	mm	mm	Kg/m
63	63.0	2.50	2100	40	150	0.80

63 Machined Sprockets

Machine Sprockets	Teeth	Pitch Diameter	Outside Diameter	Center Bore
1-63-8-20	8	66.31	66.6	20 25 30 35
1-63-9-20	9	74.26	74.6	20 25 30 35
1-63-10-20	10	82.2	82.5	20 25 30 35
1-63-11-20	11	90.16	90.5	20 25 30 35
1-63-16-20	16	130.2	130.7	20 25 30 35 40

Advantage

It is suitable for the occasion of small load strength, and the operation is more stable.
The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
The tooth shape can achieve a very small turning radius.
