880TAB-BO Small Radius Side Flex Chains

Short Description:

Mainly used for all kinds of food industry,such as beverage, bottle, can and other conveyors,
  • The longest distance: 9M
  • Max.speed: Lubricant 90M/min; Dryness 60M/min
  • Working load: 1680N
  • Pitch: 38.1mm
  • Pin material: POM acetal
  • Temperature: -40~90 ℃
  • Packing: 10 feet=3.048 M/box 26pcs/M
  • Product Detail

    Product Tags

    Parameter

    xzcwq
    Chain Type Plate Width Working Load Side
    Flex Radius
    Back Flex Radius(min) Weight
    mm inch N(21℃) mm mm Kg/m
    880TAB-K325 82.6 3.25 1680 200 40 0.97
    880TAB-K450 114.3 4.5 1680 200 1.1

    Advantage

    It is suitable for single channel or multi-channel turn conveying of bottles, cans, box frames and other products.
    For small radius turns, a single line only allows a maximum of one 90° limit radius bend.
    Hinged pin shaft connection, can increase or decrease the chain joint. It can be used with turning track.

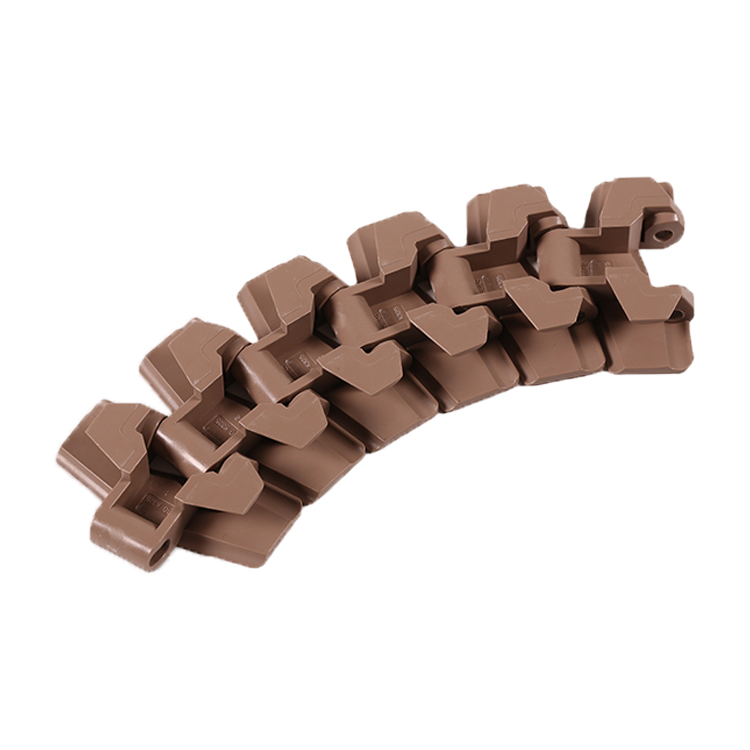

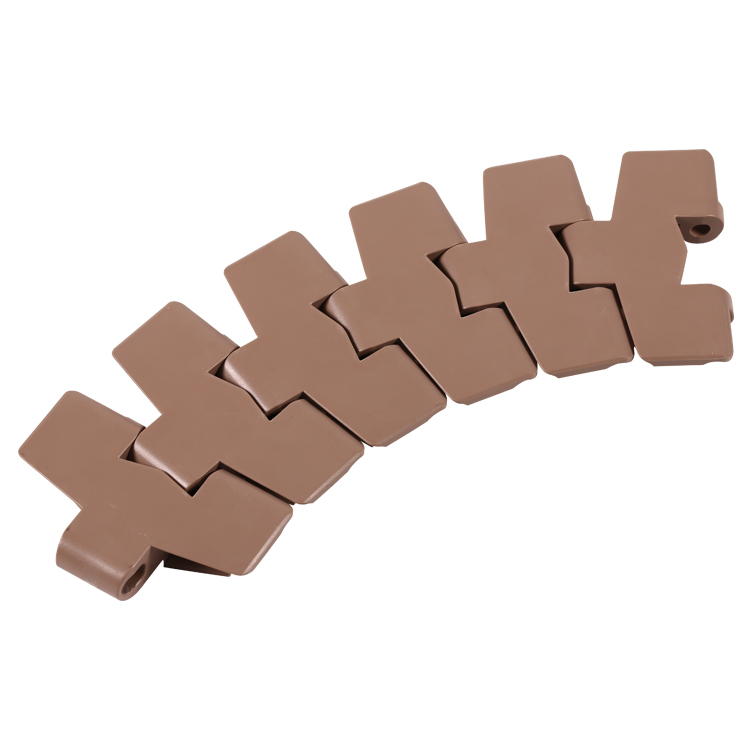

    880-TAB-BO 实物
    880TAB-450X450
