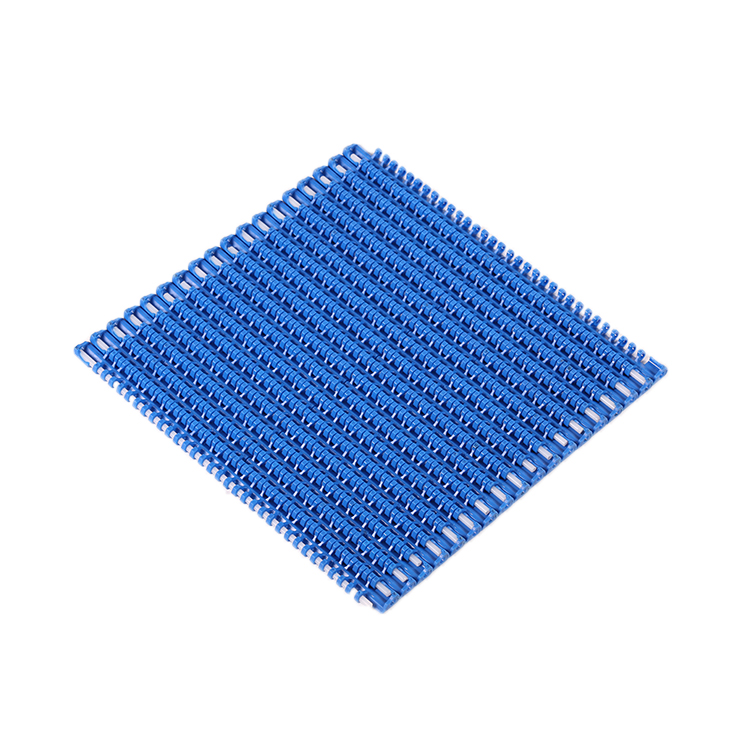

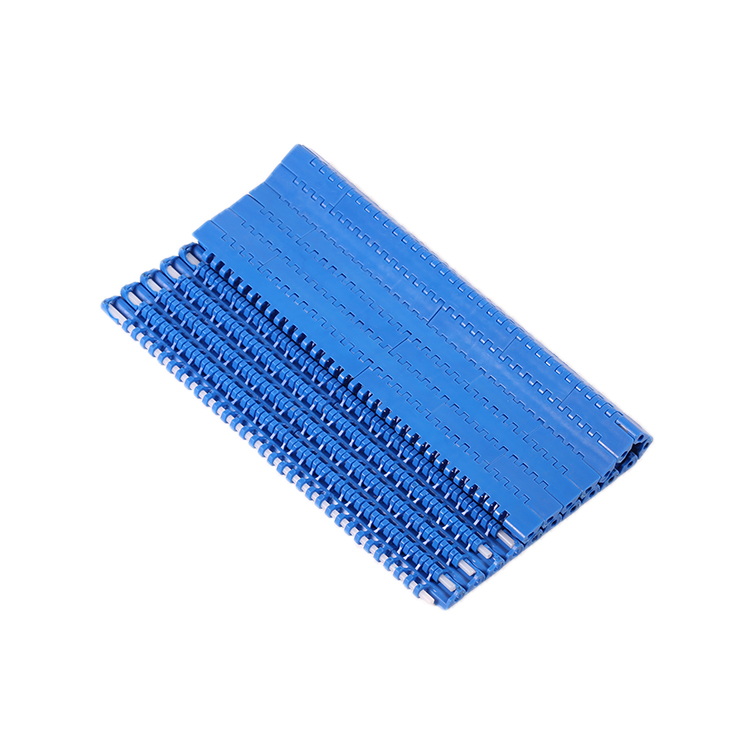

1100 flat top plastic modular conveyor belt

Short Description:

Flat top belt is the horizontal direction of transportation, Mainly used to transport food, objects smaller products.  Materials can be stainless steel, carbon steel, plastic. 1100 Model is one kind of them.

Product Detail

Product Tags

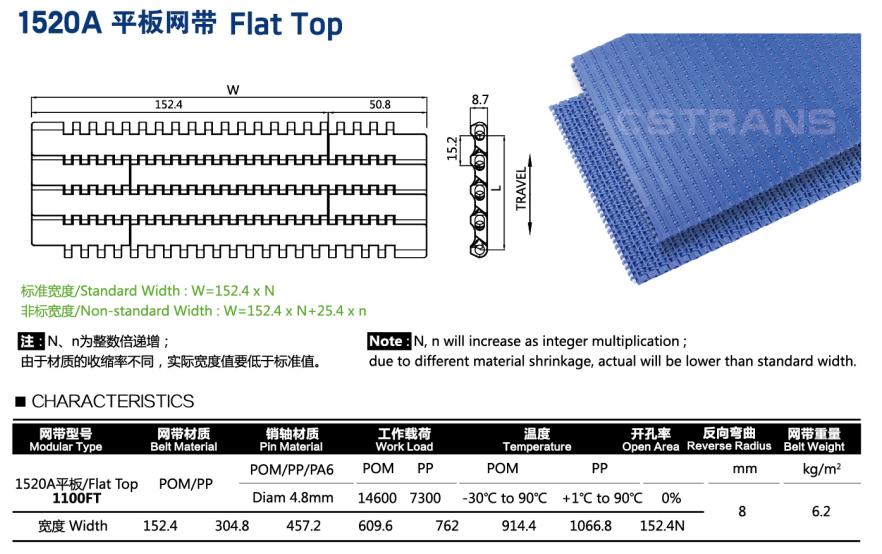

Product Parameters

fqfwqfqf
Modular Type 1100FT
Standard Width(mm) 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N

(N,n will increase as integer multiplication;
due to different material shrinkage,Actual will be lower than standard width)
Non-standard Width 152.4*N+25.4*n
Belt Material POM/PP
Pin Material POM/PP/PA6
Pin Diameter 4.8mm
Work Load POM:14600 PP:7300
Temperature POM:-30°~ 90° PP:+1°~90°
Open Area 0%
Reverse Radius(mm) 8
Belt Weight(kg/) 6.2

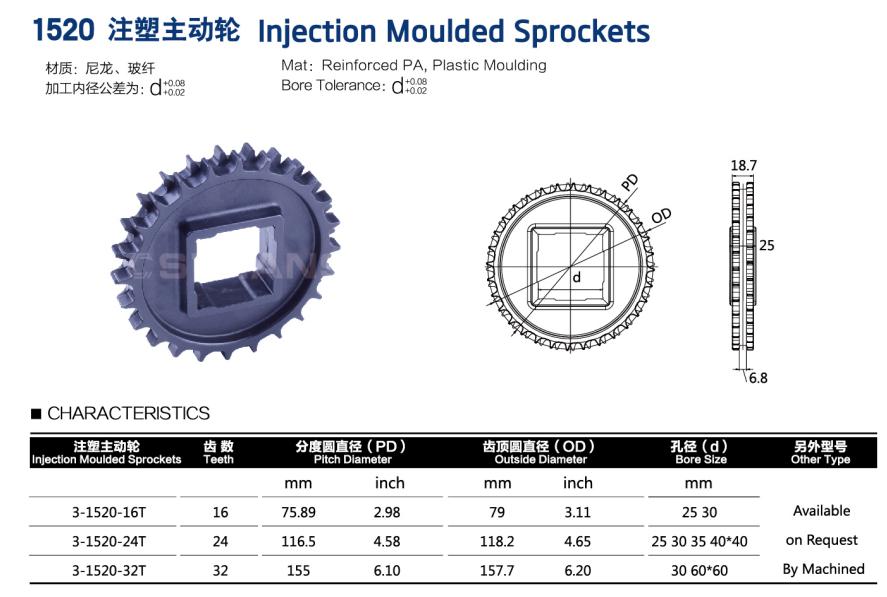

1100 Injection Moulded Sprockets

zxcfqwf
Injection Moulded Sprockets Teeth Pitch Diametet(mm) Outside Diameter Bore Size Other Type
mm Inch mm Inch mm

Available On request By Machined

3-1520-16T 16 75.89 2.98 79 3.11 25 30
3-1520-24T 24 116.5 4.58 118.2 4.65 25 30 35 40*40
3-1520-32T 32 155 6.10 157.7 6.20 30 60*60

Application Industries

1. Medical
2. Life sciences
3. Light weight or small products movement
4. Pharmaceutical

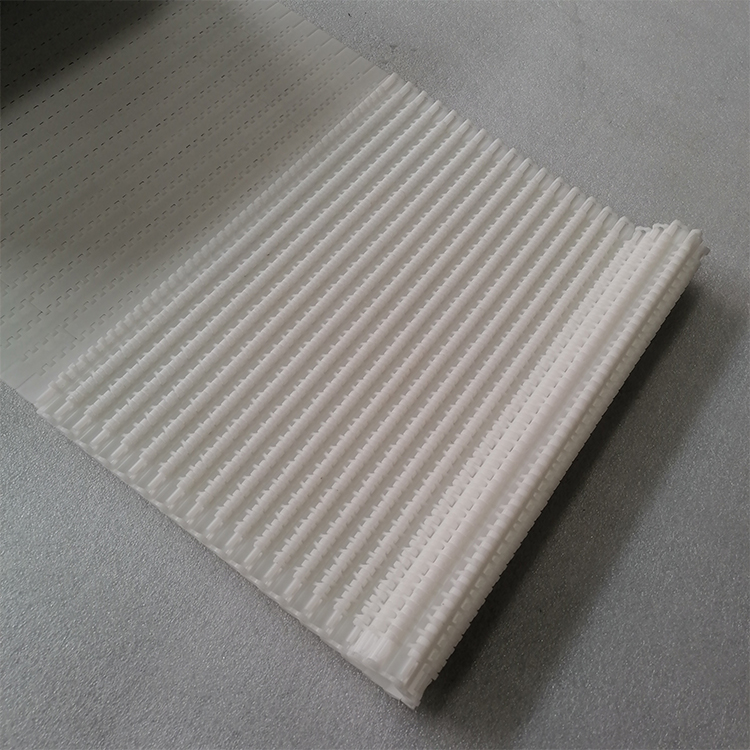

未标题-1 拷贝

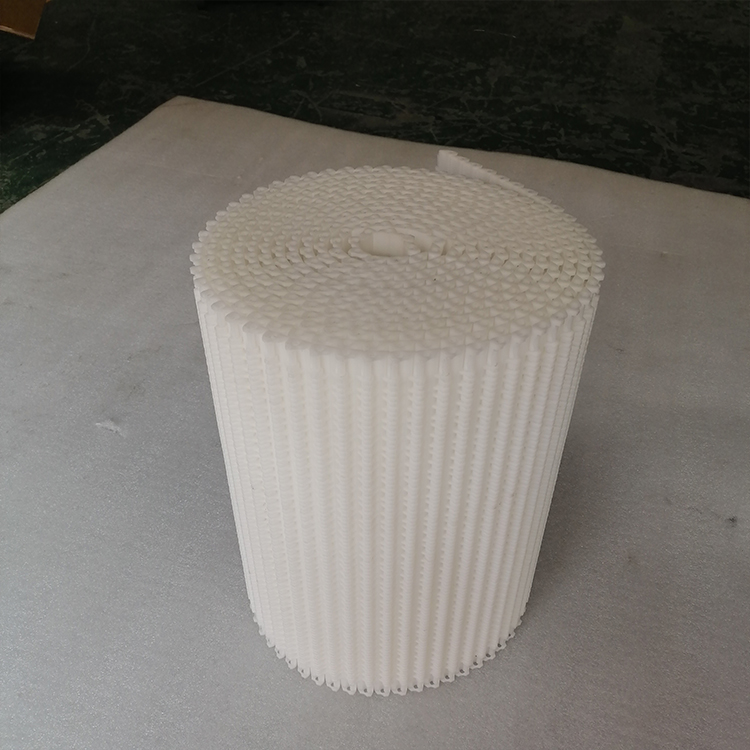

Advantage

234567

1. Easy cleaning.
2. Hygienic design
3. Can direct contact food
4. ISO9001 certification
5. Factory price

Physical and chemical properties

Acid and alkali resistance (PP) :
1100 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;

Antistatic: Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value.  Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.

Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear.  Attrition per unit area per unit time at a certain grinding speed under a certain load;

Corrosion resistance:
The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.

Features and characteristics

Flat top conveyor belt mainly used for transfering food, small objects products. suitable for applications with fully closed conveyor belt surface, can transmit a wide variety of products.  Materials are stainless steel, carbon steel, plastic.  Can be classify plate mesh belt, perforated plate mesh belt, anti-slip plate mesh belt and related sprocket.
