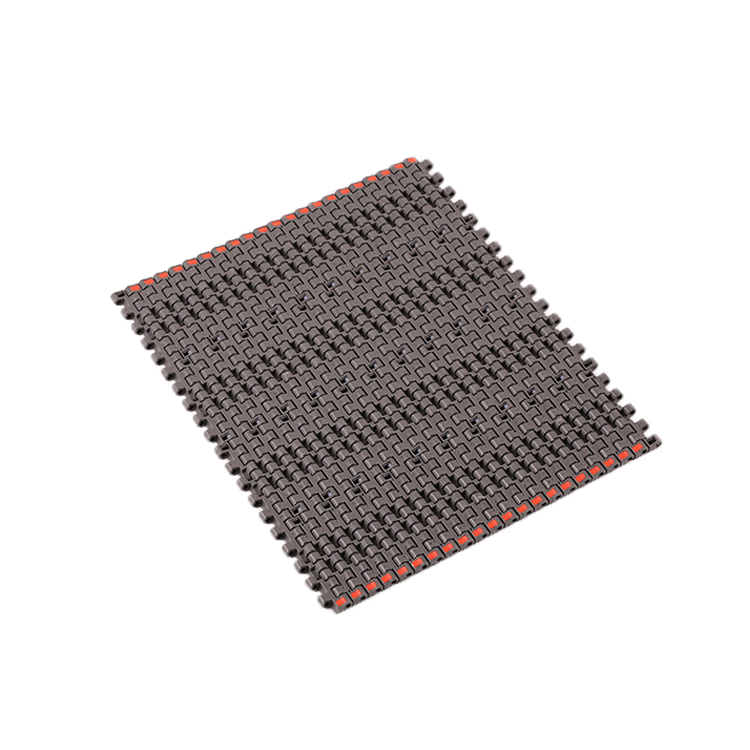

2120 Flat Top Plastic Modular Conveyor Belt

Short Description:

2120 flat top modular plastic conveyor belt suitable for meat, poultry, seafood, fruit and other transportation, can be installed on the rail width of 85mm multiple conveyor line.

Product Detail

Product Tags

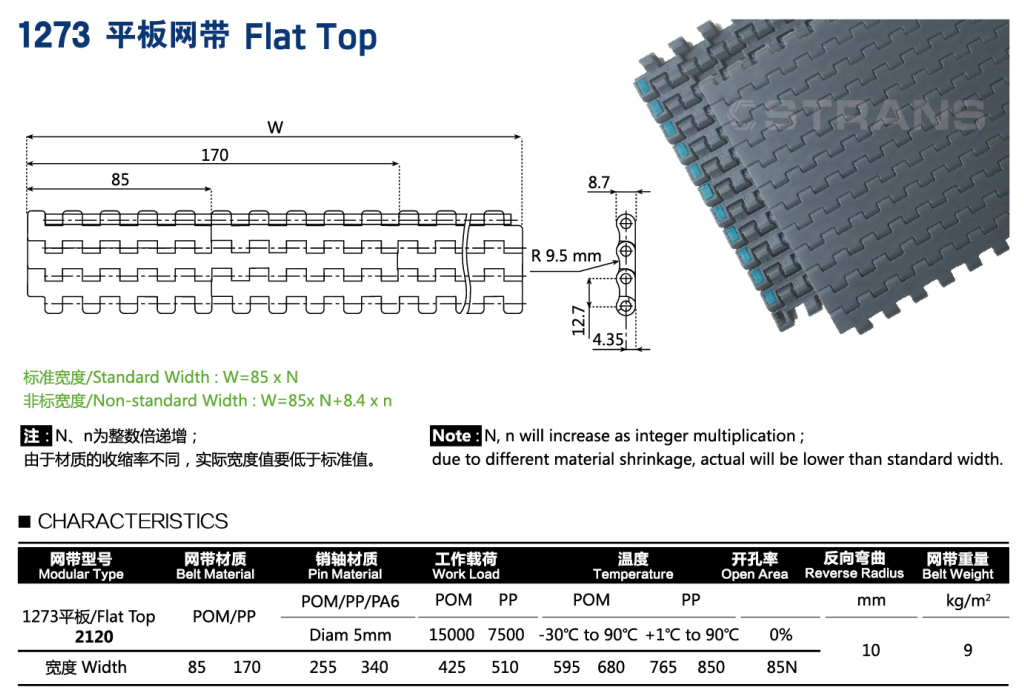

Parameter


Modular Type

2120 Flat Top

Standard Width(mm)

85 170 255 340 425 510 595 680 765 850 85N

(N,n will increase as integer multiplication;

due to different material shrinkage,Actual will be lower than standard width)

Non-standard Width

85*N+8.4*n

Belt Material

POM/PP

Pin Material

POM/PP/PA6

Pin Diameter

5mm

Work Load

POM:15000 PP:7500

Temperature

POM:-30C°~ 90C° PP:+1C°~90C°

Open Area

0%

Reverse Radius(mm)

10

Belt Weight(kg/)

9

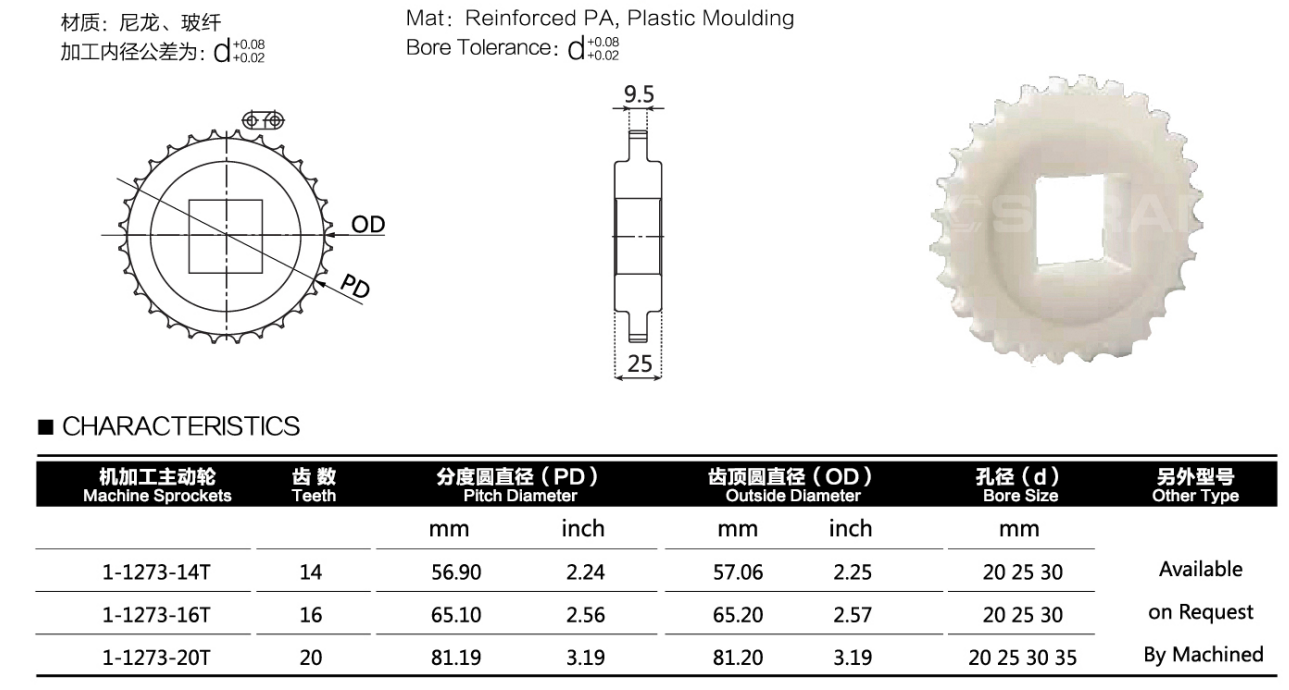

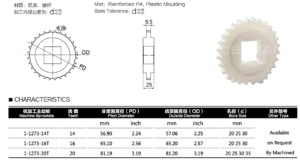

2120 Machined Sprockets


Machined Sprockets

Teeth

Pitch Diametet(mm)

Outside Diameter

Bore Size

Other Type

mm

Inch

mm

Inch

mm

Available On request

By Machined

1-1273-14T

14

56.90

2.24

57.06

2.25

20 25 30

1-1273-16T

16

65.10

2.56

65.20

2.57

20 25 30

1-1273-20T

20

81.19

3.19

81.20

3.19

20 25 30 35

Application

1.Food

2.Beverage

3.Tobacco

4.Can

5.Auto parts

6.Postal

7.Auto

8.Battery

9.Warehouing

10.Other industries

Advantage

1.Smooth, closed upper surface

2.Easy to clean

3.Safe design

4.High quality

5.Good after-sales service

6.Stable operation

7.Low maintenance cost

8.Widely useage

9. Can withstand low friction coefficient,

10.High impact resistance, tensile strength and other instant impact

Physical and chemical properties

Acid and alkali resistance (PP) :

2120 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;

Antistatic:

Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value.  Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.

Wear resistance:

Wear resistance refers to the ability of a material to resist mechanical wear.  Attrition per unit area per unit time at a certain grinding speed under a certain load;

Corrosion resistance:

The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
