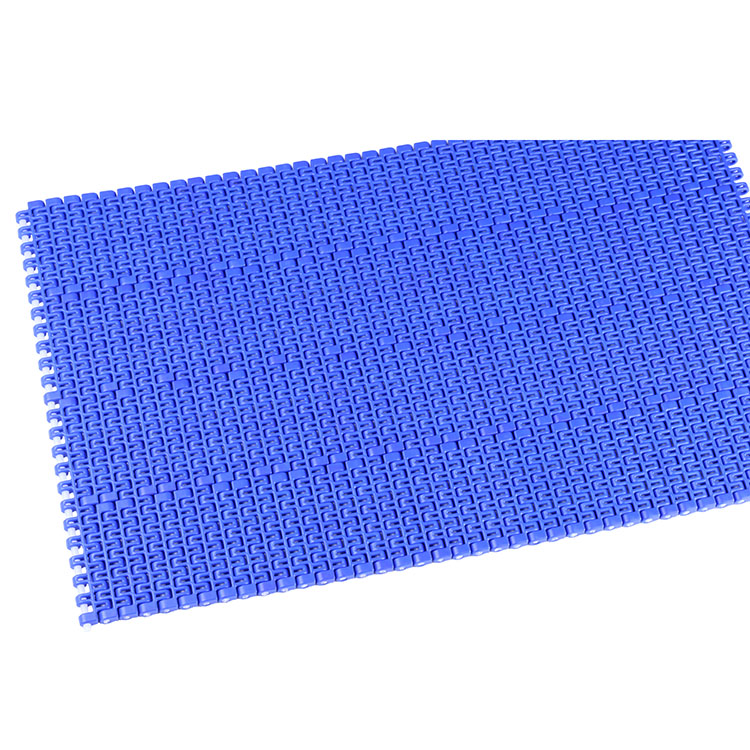

SNB flush grid plastic modular conveyor belt

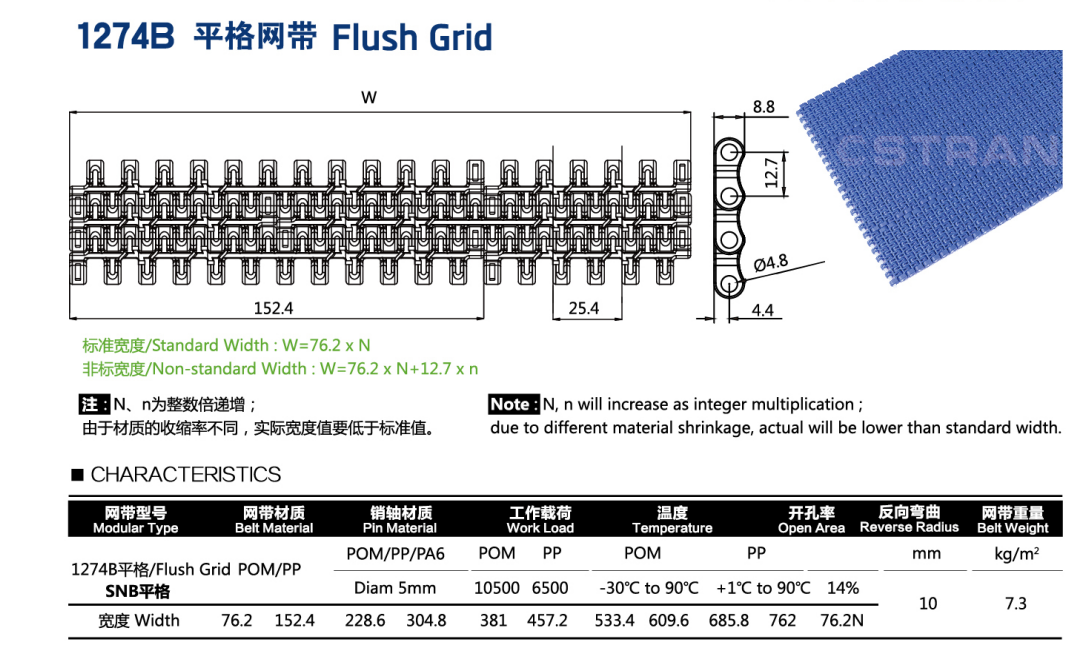

Product Parameters
| Modular Type | SNB |
| Non-standard Width | 76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2N |
| Pitch(mm) | 12.7 |
| Belt Material | POM/PP |
| Pin Material | POM/PP/PA6 |
| Pin Diameter | 5mm |
| Work Load | PP:10500 PP:6500 |
| Temperature | POM:-30℃ to 90℃ PP:+1℃ to 90C° |
| Open Area | 14% |
| Reverse Radius(mm) | 10 |
|
Belt Weight(kg/ |
7.3 |

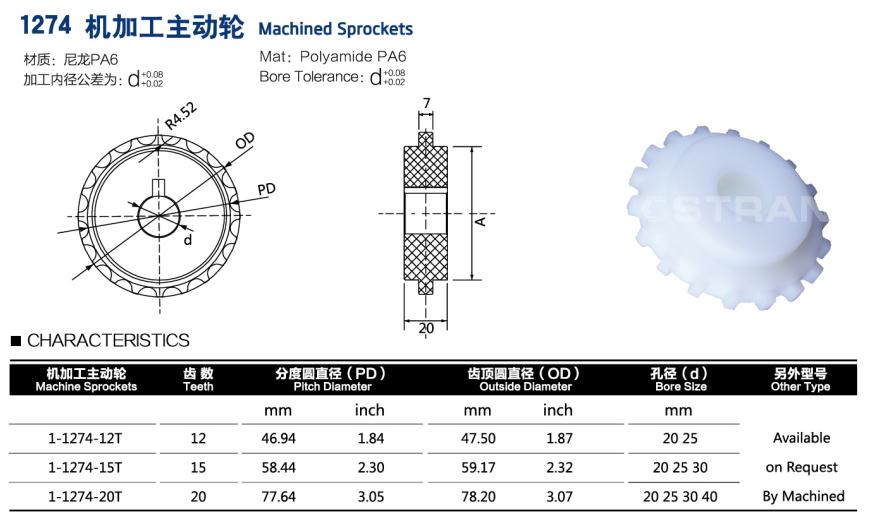

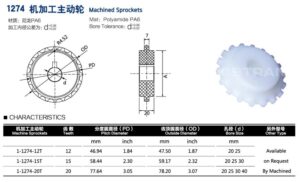

Machine Sprockets
| MachinedSprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | ||
| mm | Inch | mm | Inch | mm | Available onRequest By Machined | ||
| 1-1274-12T | 12 | 46.94 | 1.84 | 47.50 | 1.87 | 20 25 | |
| 1-1274-15T | 15 | 58.44 | 2.30 | 59.17 | 2.32 | 20 25 30 | |
| 1-1274-20T | 20 | 77.64 | 3.05 | 78.20 | 3.07 | 20 25 30 40 | |
Application Industries
SNB modular plastic flush grid belt usually used in various industries, After improvement, it has been commonly used in daily life. Mainly suitable for all kinds of beverage, food, packaging and other types of transportation.
Advantage
1. Long transport distance, can be horizontal transport, can also be inclined transport.
2. High efficiency and low noise.
3. Safety and stable.
4. Wide range of use
5. Suitable for a variety of environmental needs
Physical and chemical properties
Acid and alkali resistance (PP) : SNB flush grid modular plastic conveyor belt with pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic: Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance: The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Features and characteristics
Flush grid belt compose by modular plastic belts,It is driven by sprocket drive, so it is not easy to snake, deflection. At the same time thick conveyor belt can withstand cutting, collision, oil and water resistance.
Because there are no pores and gaps in the structure, any products transported will not be penetrated by pollution sources, let alone adsorb any impurities on the surface of the conveyor belt, so that safe production process can be obtained.
