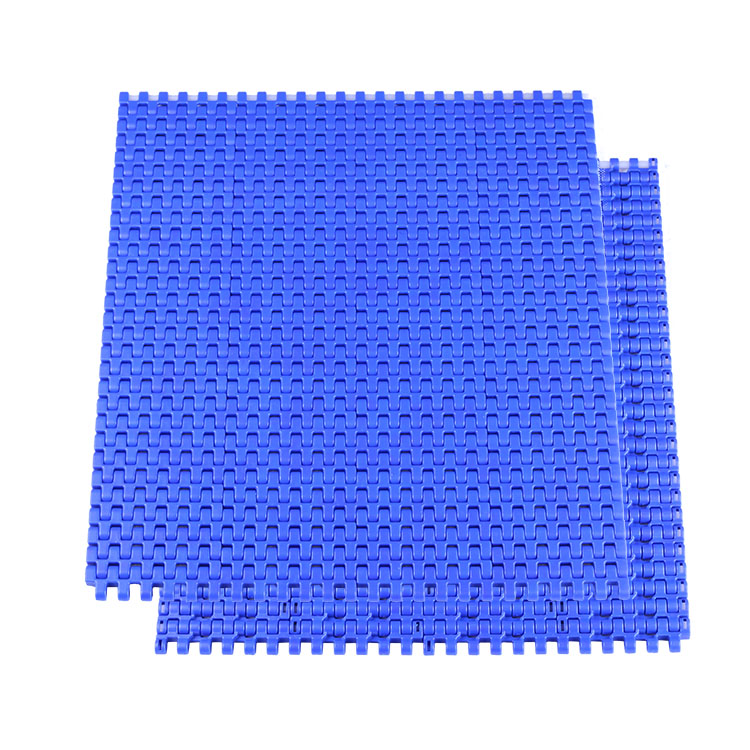

SNB flat top modular plastic conveyor belt
Short Description

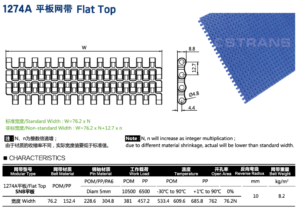

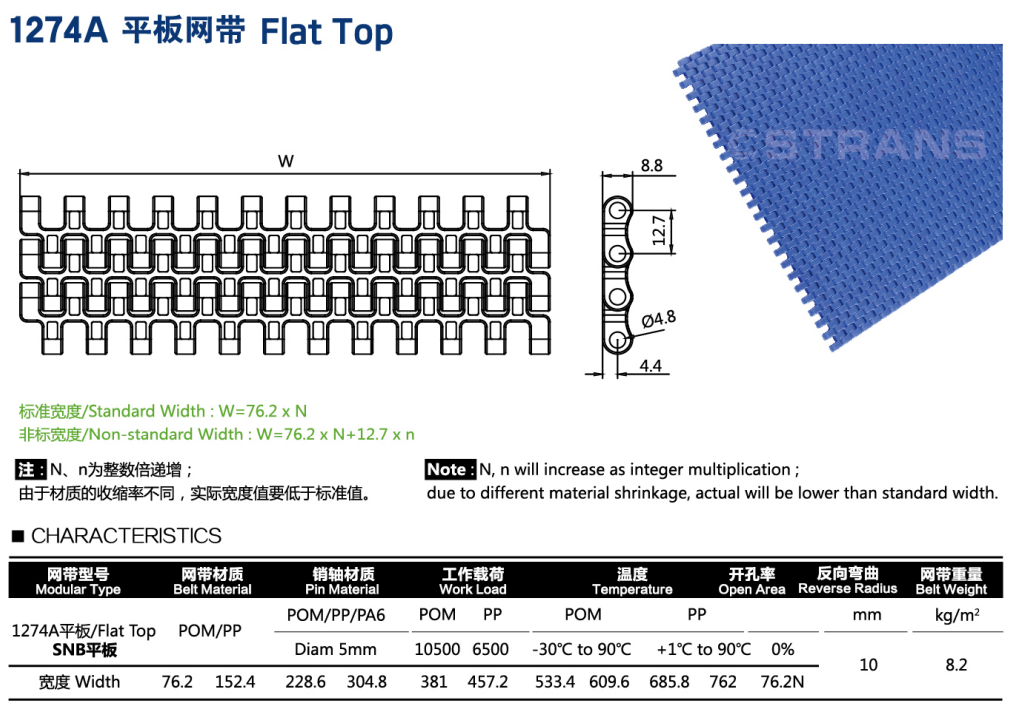

Product Parameters
| Modular Type | SNB |
| Non-standard Width | 76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2N |
| Pitch(mm) | 12.7 |
| Belt Material | POM/PP |
| Pin Material | POM/PP/PA6 |
| Pin Diameter | 5mm |
| Work Load | PP:10500 PP:6500 |
| Temperature | POM:-30℃ to 90℃ PP:+1℃ to 90C° |
| Open Area | 0% |
| Reverse Radius(mm) | 10 |
| Belt Weight(kg/㎡) | 8.2 |

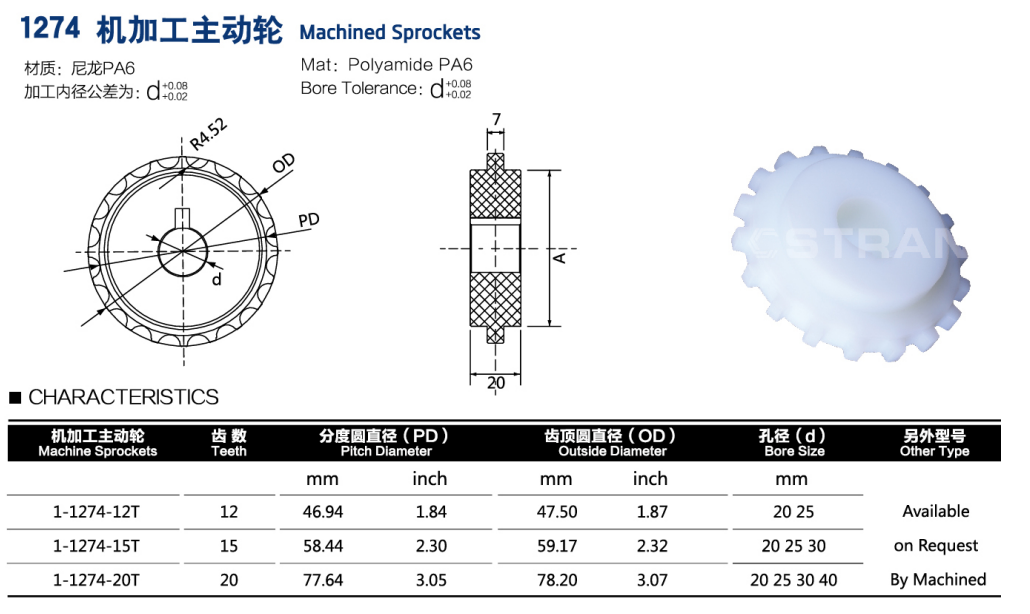

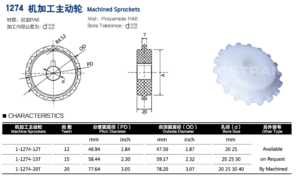

Machine Sprockets
| MachinedSprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | mm | Inch | mm | Available onRequest By Machined | |
| 1-1274-12T | 12 | 46.94 | 1.84 | 47.50 | 1.87 | 20 25 |
| 1-1274-15T | 15 | 58.44 | 2.30 | 59.17 | 2.32 | 20 25 30 |
| 1-1274-20T | 20 | 77.64 | 3.05 | 78.20 | 3.07 | 20 25 30 40 |

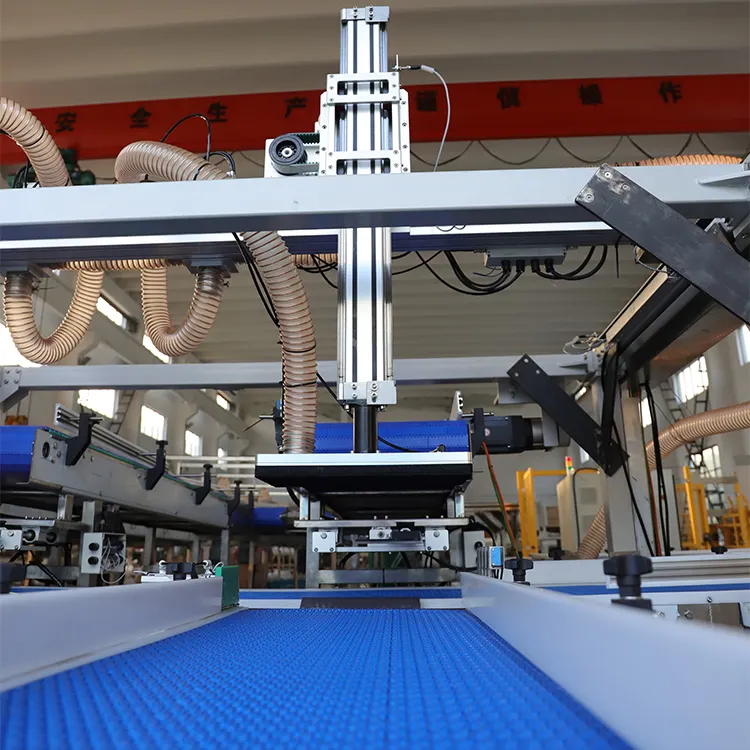

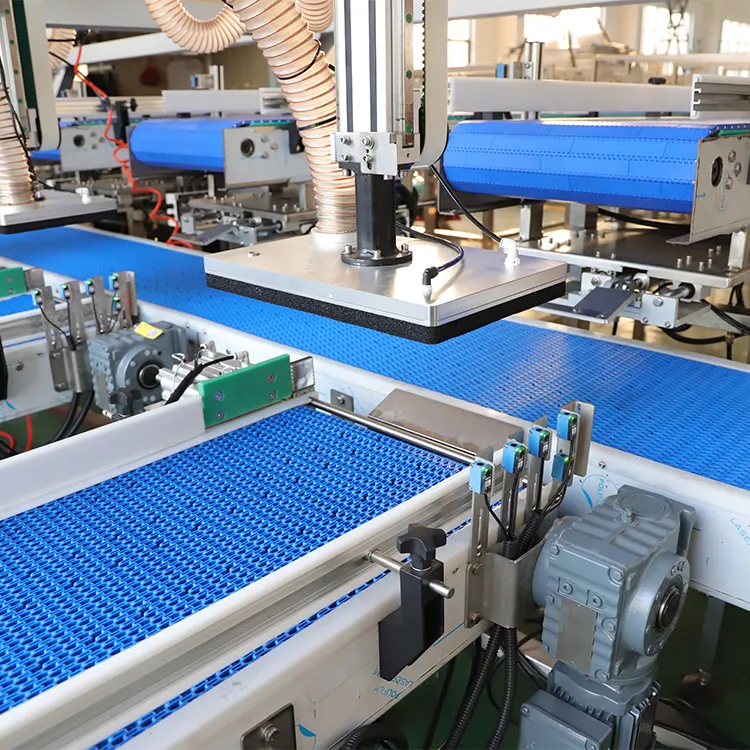

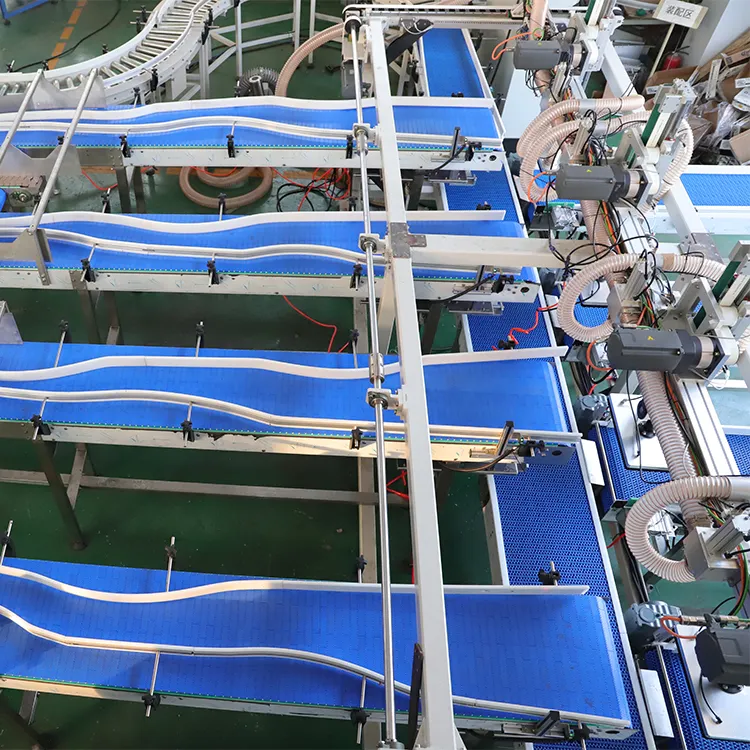

Application Industries
1274A(SNB) flat top modular plastic conveyor belt mainly used in food and packaging industry of all kinds of container transportation.
For example: PET bottles, PET bottom flasks, aluminum and steel cans, cartons, pallets, products with packaging (e.g. cartons, shrink wrap, etc.), glass bottles, plastic containers.
Advantage
1. Light weight, low noise
2. recision molding process can ensure the best flatness
3. High wear resistance and low friction coefficient.
Physical and chemical properties
Acid and alkali resistance (PP) : 1274A /SNB flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic: Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance: The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Features and characteristics
Plastic belt conveyor, It is a supplement to the traditional belt conveyor and overcomes the belt tear, puncturing, corrosion shortcomings, to provide customers with a safe, fast, simple maintenance of transportation. Because of using modular plastic conveyor belt is not easy to crawling like snake and running deviation, the scallops can withstand cutting, collision, and oil resistance, water resistance and other properties, So that the use of various industries will not be in trouble of the maintenance,Especially the belt replacement fee will be less.
Modular plastic conveyor belt overcomes the pollution problem, using plastic materials in line with health standards, the structure of no pores and gaps.
