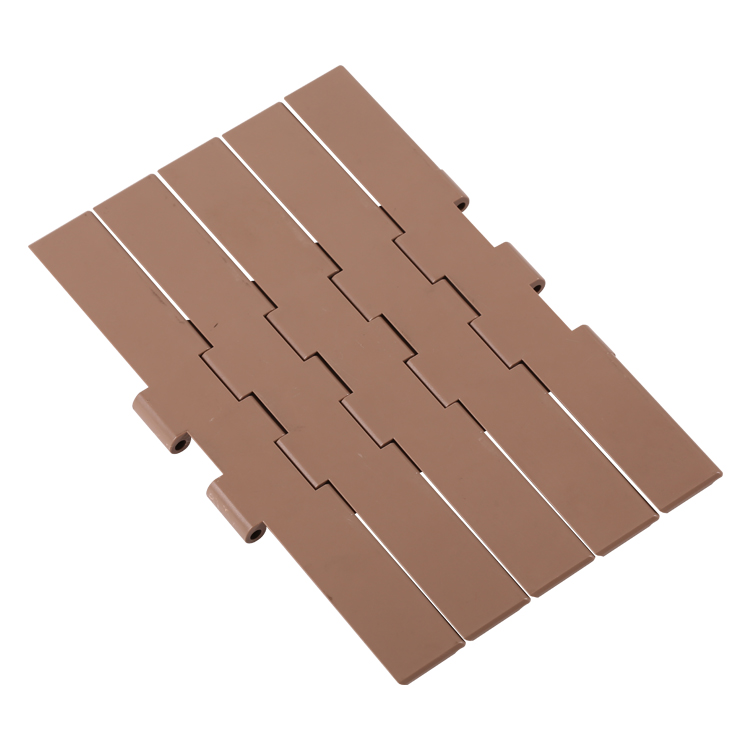

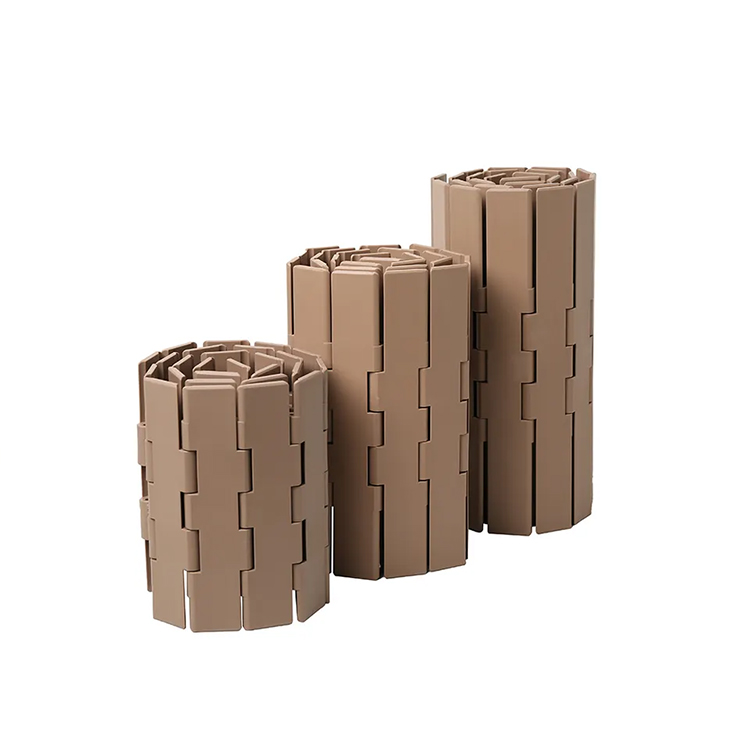

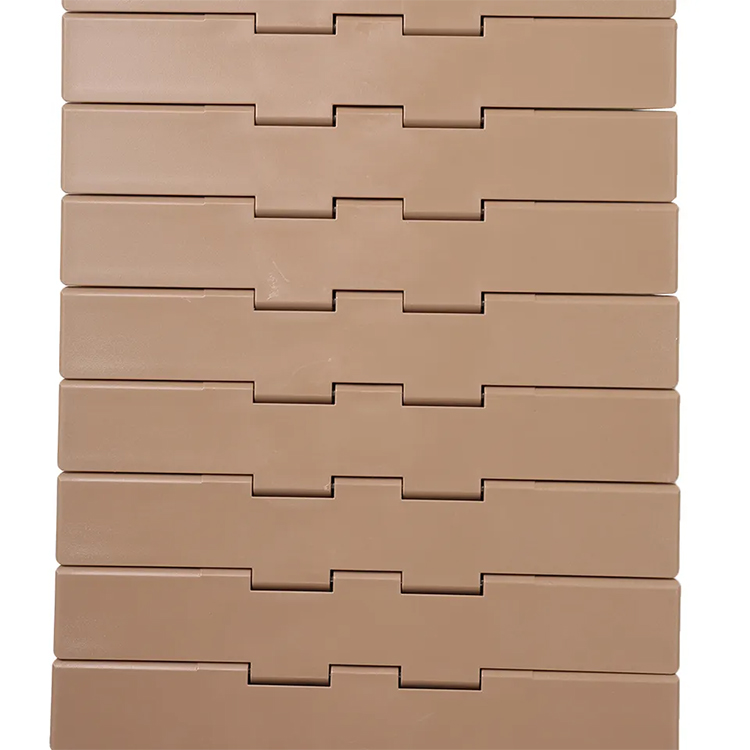

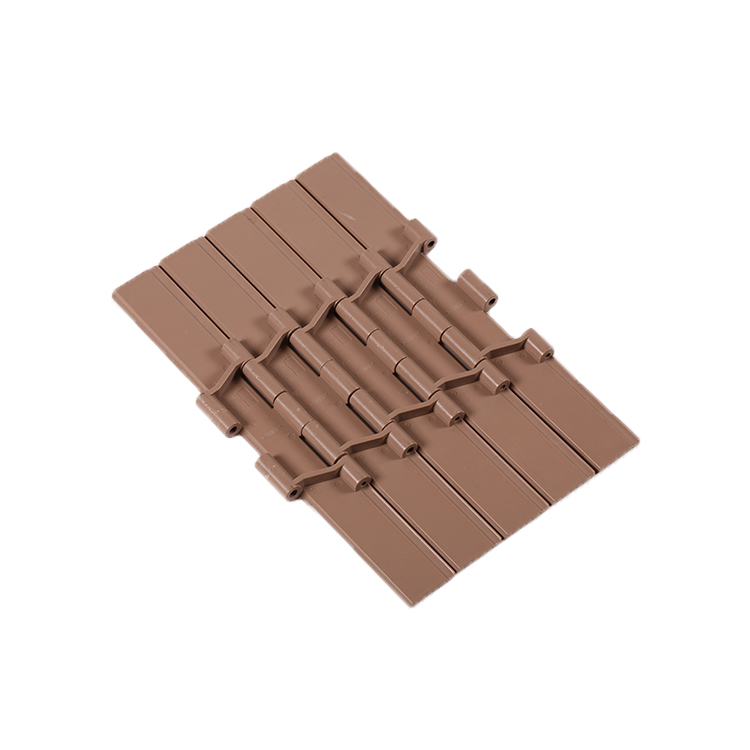

821 Double Hinge Table Top Chain
Parameter
| Chain Type | Plate Width | Working Load | Back Flex Radius(min) | Weight | |||
| mm | inch | N(21℃) | Ibf(21℃) | mm | inch | Kg/m | |
| 821-K750 | 190.5 | 7.5 | 2680 | 603 | 50 | 1.97 | 2.5 |
| 821-K1000 | 254.0 | 10.00 | 2.8 | ||||
| 821-K1200 | 304.8 | 12.0 | 3.25 | ||||
SS802/821/822 Series machined drive sprockets
| Machined Sprockets | Teeth | PD(mm) | OD(mm) | D(mm) |
| 1-821-19-20 | 19 | 116.5 | 116.8 | 20 25 30 |
| 1-821-21-25 | 21 | 128.8 | 129.1 | 25 30 35 40 |
| 1-821-23-25 | 23 | 140.5 | 140.7 | 25 30 35 40 |
| 1-801-25-25 | 25 | 152.7 | 153.0 | 25 30 35 40 |
Suitable for a variety conveyor line of different environments, the maximum temperature can reach 120°.
It has good wear-resisting effect and is suitable to bear load for a long time. Vibration absorption and noise reduction during operation.
Additional structures can be appended.
Advantages
It is suitable for single channel or multi-channel straight line transportation of bottles, cans, box frames and other products.
The conveying line is easy to clean and convenient to install.
Hinge pin shaft connection, can add replacement chain joint.
Sprockets and idlers of SS802, 821, 822 chain plate are universal.
Machined Sprockets/ Injection Moulded Sprockets/ Machined Idler/ Injection Moulded Idler for double hinge straight running of 821 series as below:
