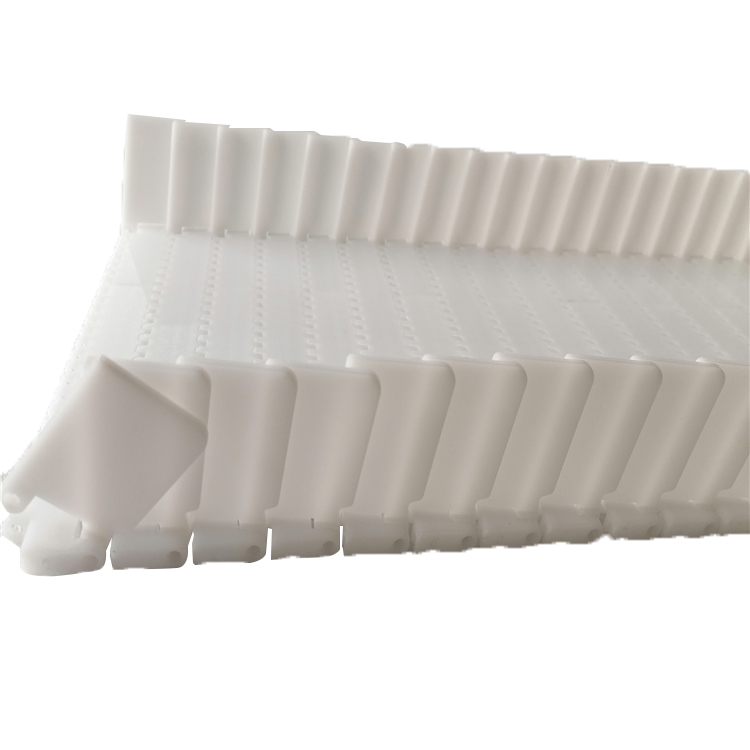

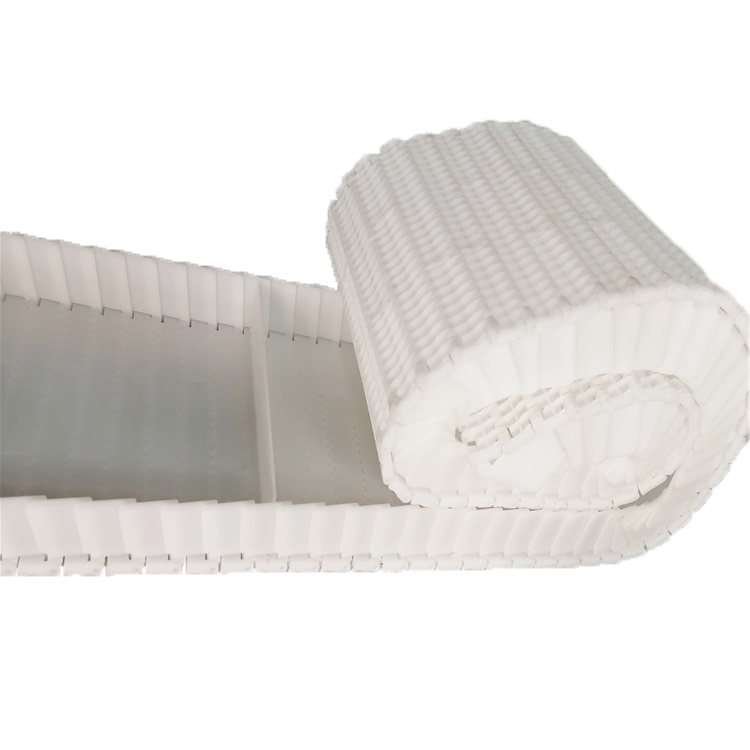

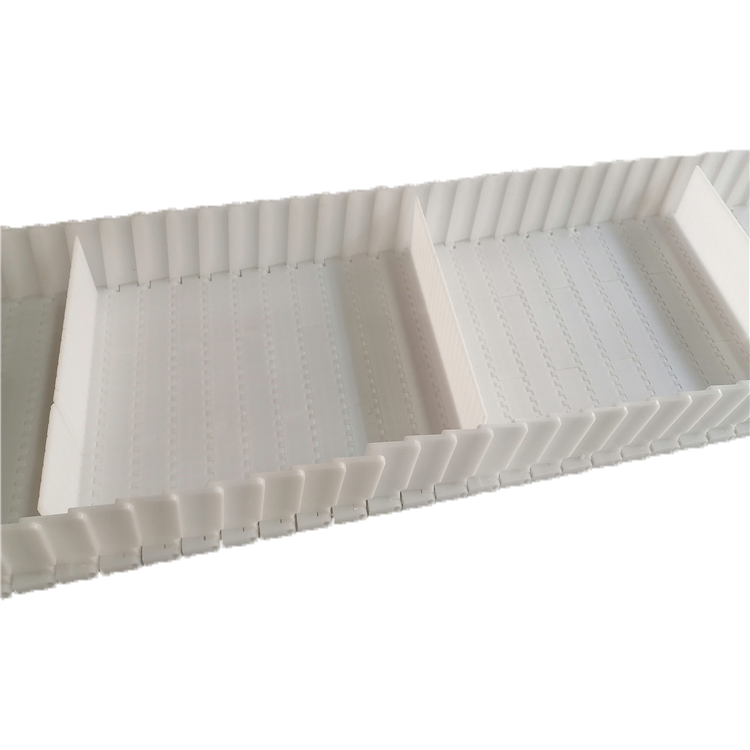

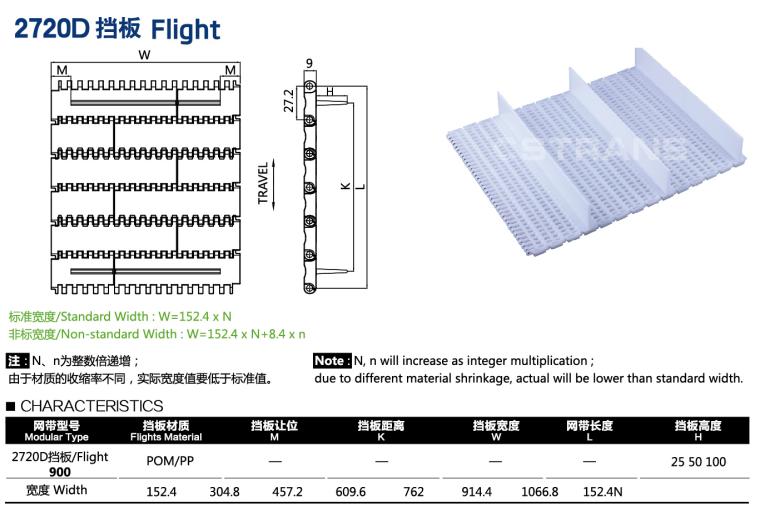

900 Modular Plastic Conveyor Belt With Baffle And Side Wall

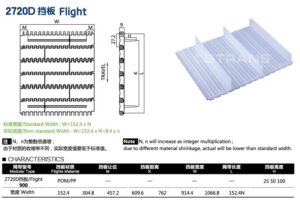

Parameters
| Modular Type | 900 | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N |
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | 152.4*N+8.4*n | |
| Pitch(mm) | 27.2 | |

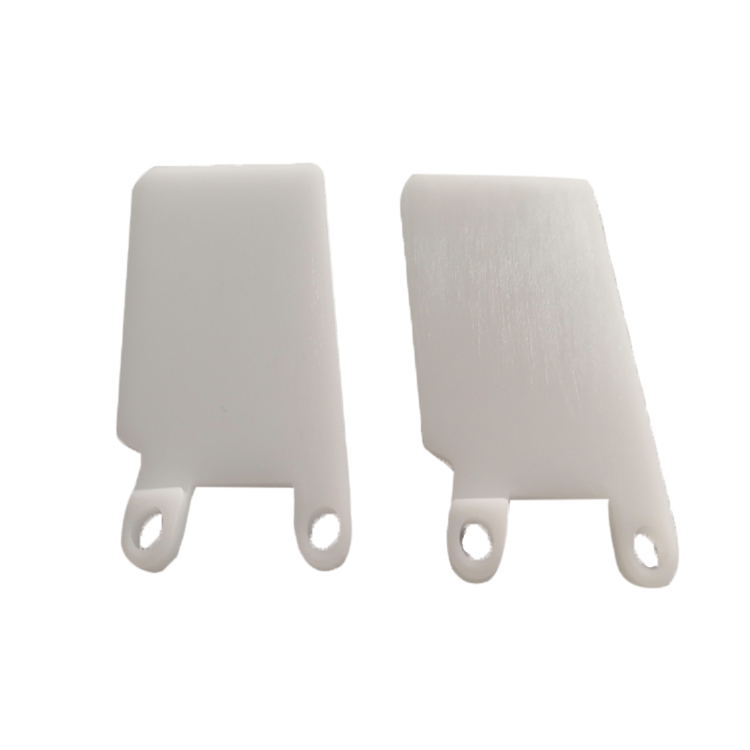

| Flight Material | POM/PP | |
| Flight Height | 25 50 100 | |

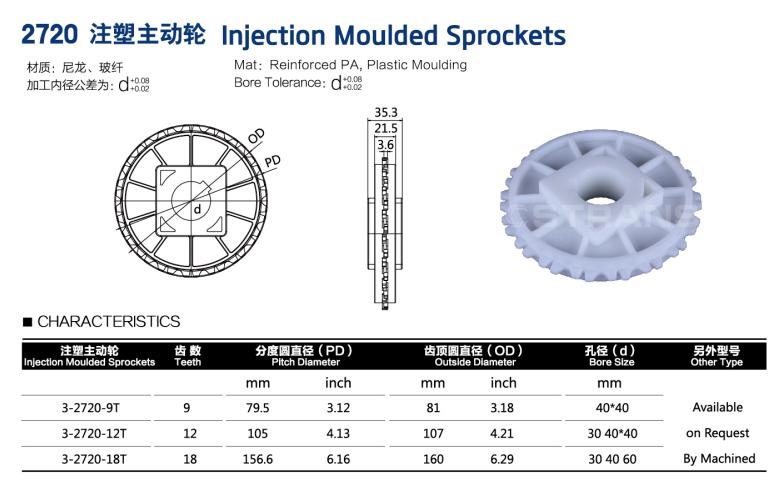

900 Injection Moulded Sprockets
| Injection Moulded Sprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | ||
| mm | Inch | mm | Inch | mm |
Available on Request By Machined |
||
| 3-2720-9T | 9 | 79.5 | 3.12 | 81 | 3.18 | 40*40 | |
| 3-2720-12T | 12 | 105 | 4.13 | 107 | 4.21 | 30 40*40 | |
| 3-2720-18T | 18 | 156.6 | 6.16 | 160 | 6.29 | 30 40*60 | |
Application Industries
1. Ready Meals
2. Poultry, Meat, Seafood
3. Akery, Dairy, Fruit, and Vegetable
Advantage
1. ISO9001 certification.
2. Both standards and customizations are available.
3. 17 years of production and R&D experience in the conveyor industry.
4. Factory direct sell.
5. High strength, durability, corrosion resistance.
6. High and low temperature resistance, impact resistance.
7. Low friction, smooth operation.
8. High security, high productivity.
Physical and chemical properties
Acid and alkali resistance (PP) :
900 baffle mesh bel using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic:
Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Features and characteristics
1. High strength and high wear resistance of the baseband, with good lateral stability and longitudinal flexibility.
2. The angle of conveyor belt with baffle and side wall can reache 30~90 degrees.
3. Conveyor belt with baffle and side wall can effectively prevent materials from falling.
4. Conveyor belt with baffle and side wall has large conveying capacity and high lifting height.
