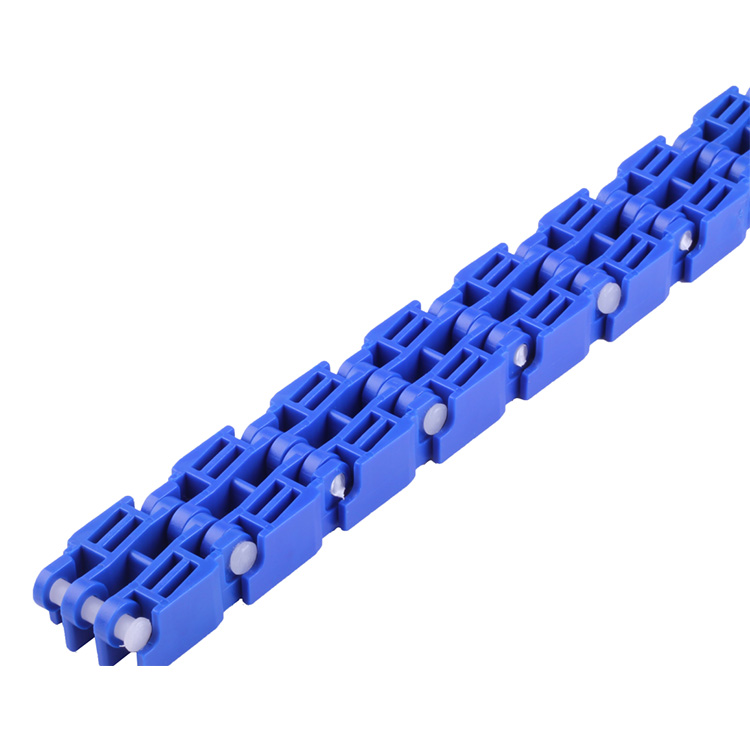

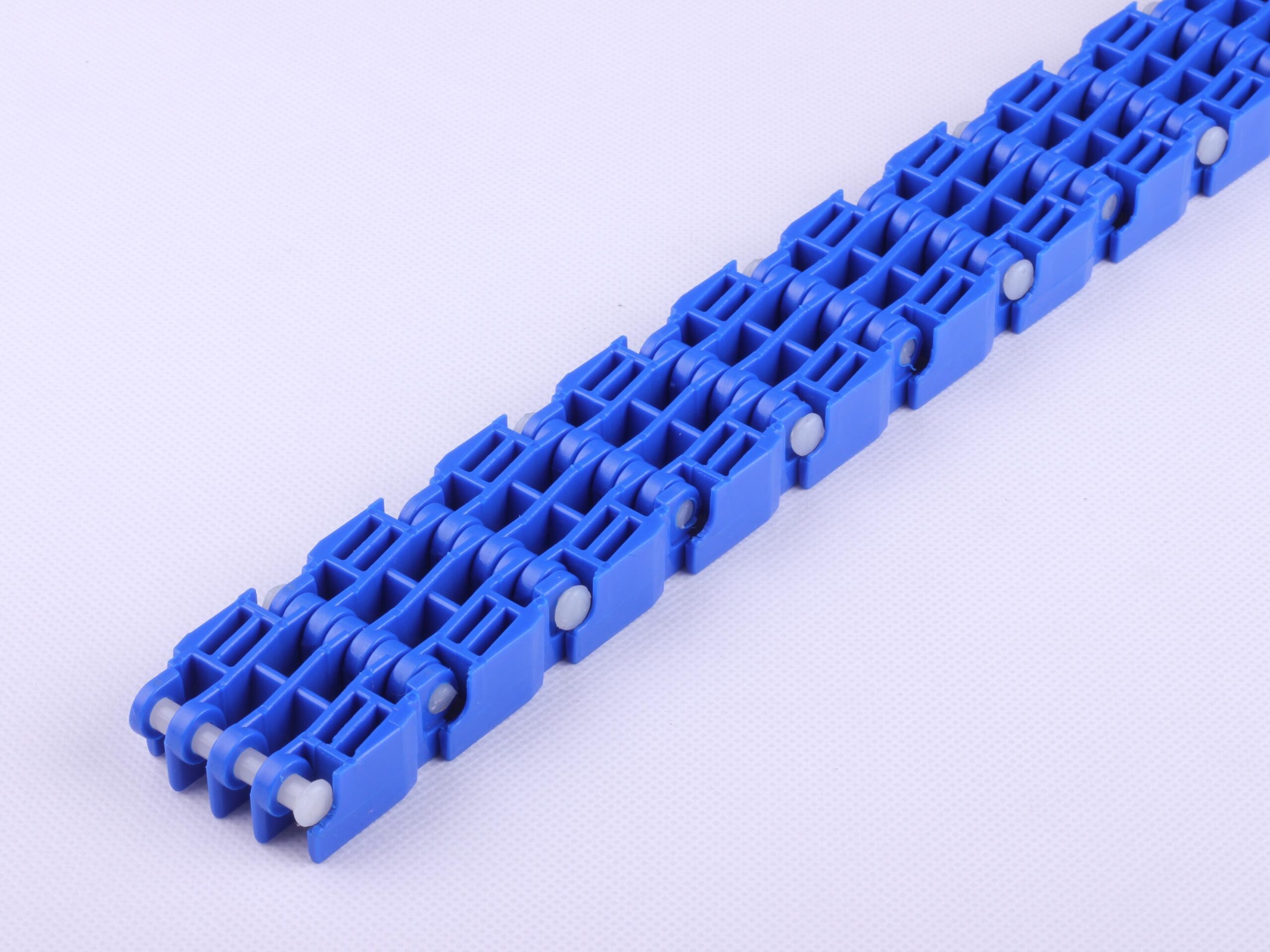

900 Flush Grid Modular Plastic Conveyor

Short Description:

900 flush grid modular plastic conveyor belt with width 28mm 39mm 46mm 56mm which has excellent water filtration capacity and good transmission effect while the belt weight is light.

Product Detail

Product Tags

Parameter

wvqvqwv
Modular Type 900FG
Standard Width(mm) 28 39 46 56
Pitch(mm) 27.2
Belt Material POM/PP
Pin Material POM/PP/PA6
Pin Diameter 4.6mm
Work Load POM:20000 PP:9000
Temperature POM:-30C°~ 90C° PP:+1C°~90C°
Open Area 38%
Reverse Radius(mm) 50
Belt Weight(kg/) 6.0

900 Injection Moulded Sprockets

qwfqwfqw
Model Number Teeth Pitch Diametet(mm) Outside Diameter Bore Size Other Type
mm Inch mm Inch mm

Available on

Request By Machined

3-2720-9T 9 79.5 3.12 81 3.18 40*40
3-2720-12T 12 105 4.13 107 4.21 30 40*40
3-2720-18T 18 156.6 6.16 160 6.29 30 40 60

Application

1. Dairy, Bakery, Fruit, and Vegetable
2. Meat Poultry Seafood
3. Ready Meals
4. Tobacco, medicine&chemical industry
5. packaging machine transmission applications
6. Various dip tank applications
7. Other industries

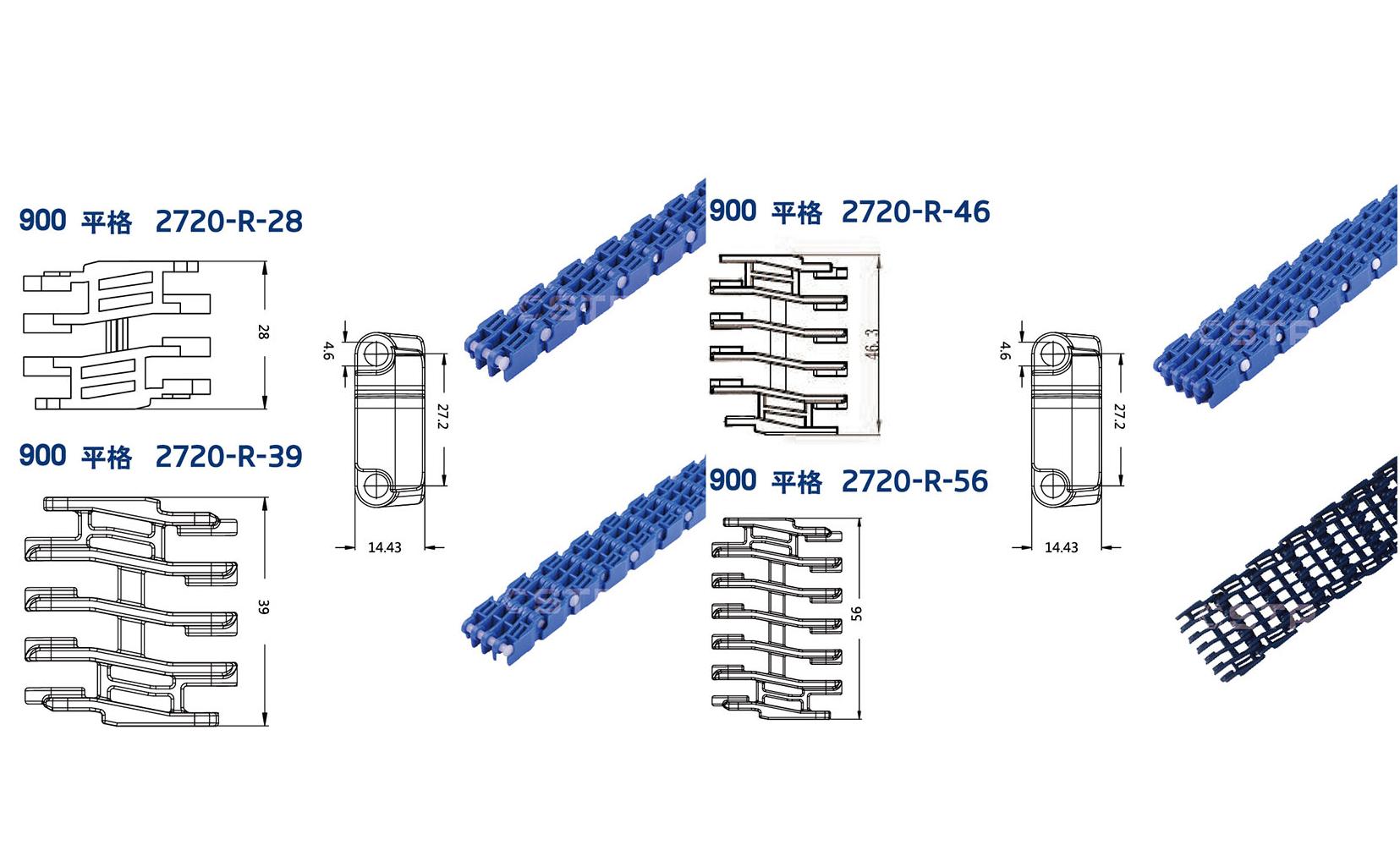

2720-R

Advantage

1. High mechanical strength
2. Color optional
3. Easy assembly and maintain
4. Excellent performance
5. Easy maintenance
6. wear resistance and oil resistant
7. Reliable quality
8. Reliable after-sale service

Physical and chemical properties

2720B flat grid belt using pp material in acidic environment and alkaline environment has better transport capacity;

Antistatic electricity:
The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity.  Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves.

Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear.  Wear per unit area in unit time at a certain grinding speed under a certain load;

Corrosion resistance:
The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
