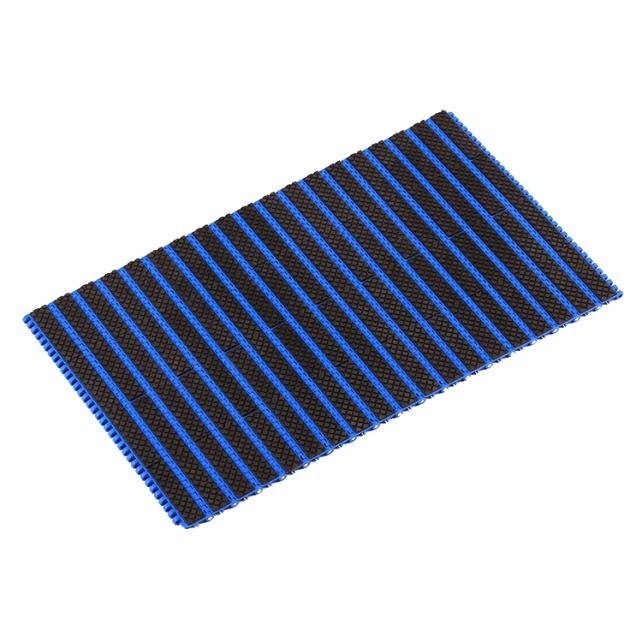

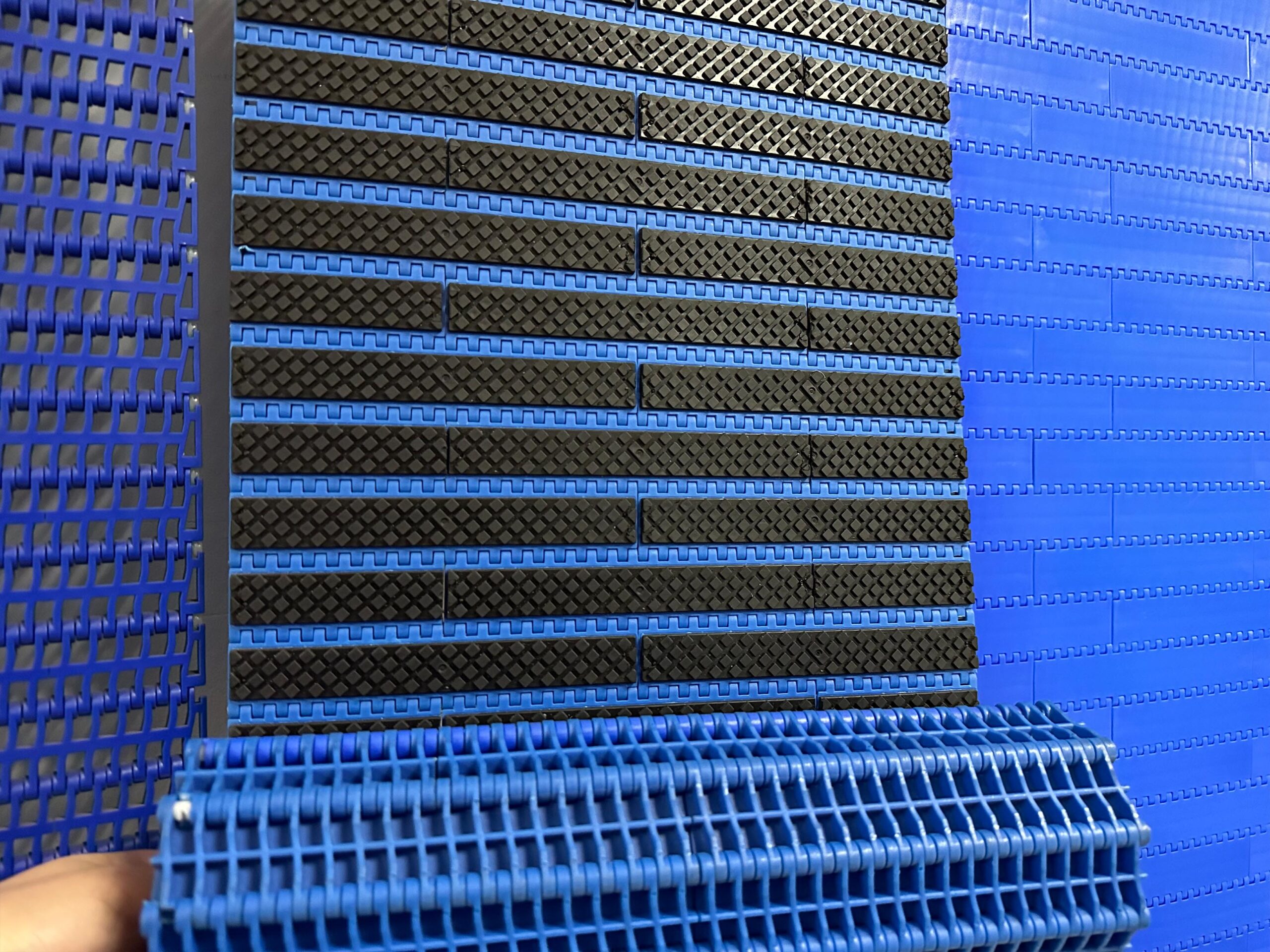

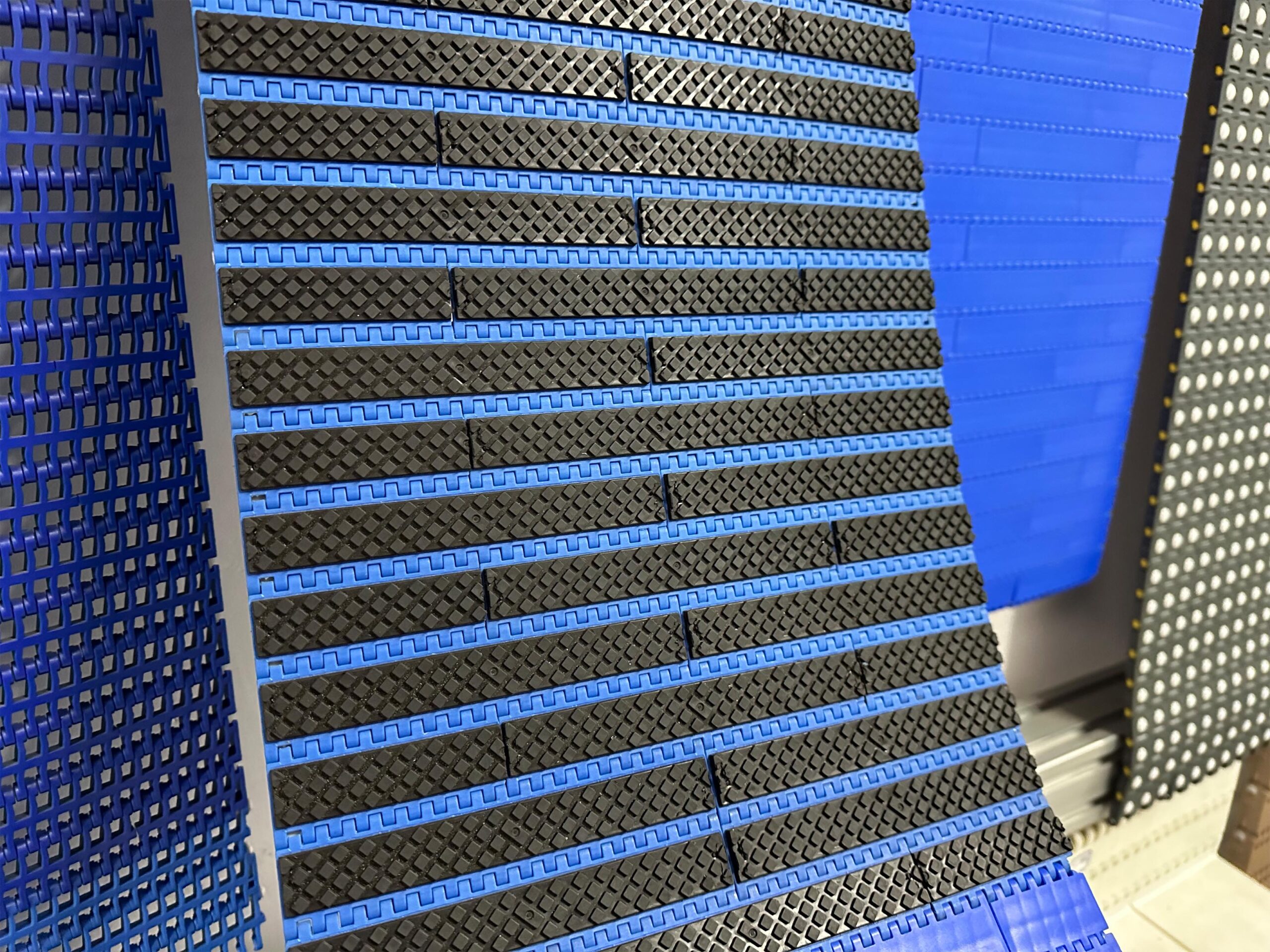

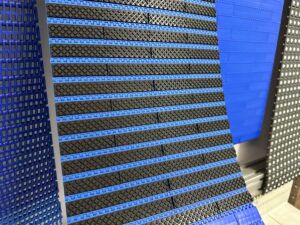

900F Rubber Top Modular Plastic Conveyor Belt
Short Description

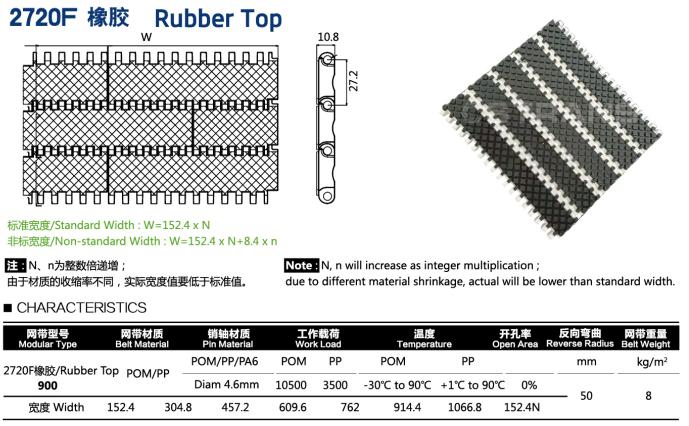

Parameter
| Modular Type | 900F | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=152.4*N+8.4*n | |
| P it ch(mm) | 27.2 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 4.6mm | |
| Work Load | POM:10500 PP:3500 | |
| Temperature | POM:-30C°~ 90C° PP:+1C°~90C° | |
| Open Area | 0% | |
| Reverse Radius(mm) | 50 | |
| Belt Weight(kg/ ㎡ ) | 8.0 |

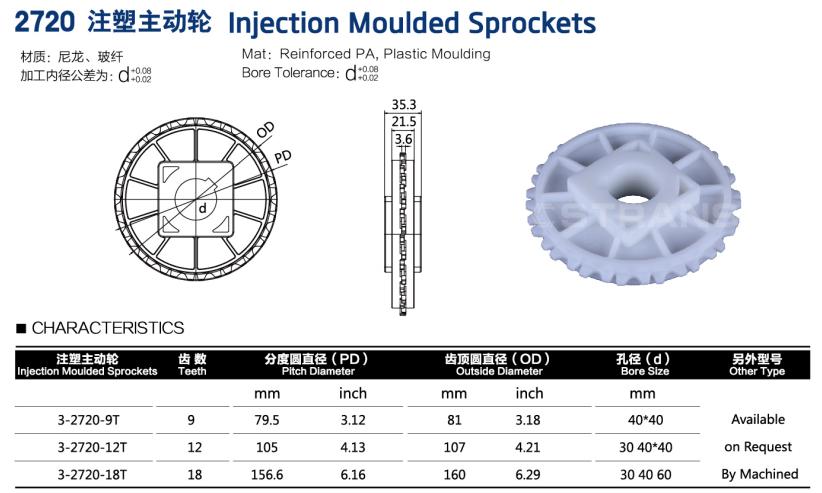

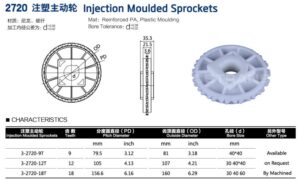

900 Injection Moulded Sprockets
| Model Number | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | m m | I nch | mm | Available on Request By Machined | |
| 3-2720-9T | 9 | 79.5 | 3.12 | 81 | 3.18 | 40*40 |
| 3-2720-12T | 12 | 105 | 4.13 | 107 | 4.21 | 30 40*40 |
| 3-2720-18T | 18 | 156.6 | 6.16 | 1 60 | 6.29 | 30 40 60 |
Application Industries
1. Aquatic products processing production line 2. Frozen food production line 3. Battery manufacturing 4. Beverage manufacturing 5. Chemical industry 6. Electronics industry 7. Viviparous rubber tire industry 8. Cosmetics industry 9. Other industries
Advantage
1. High toughness and tensile strength 2. Size compliance, 3. Low probability of deformation and stress cracking 4. Stable performance 5. Low noise 6. low consumption 7. Long life 8. Reliable quality 9. High temperature resistance, acid and alkali resistance, good insulation, no odor, washable
Physical and chemical properties
900F rubber top modular plastic conveyor belt suitable for empty tank conveying system, air conveyor, etc. Suitable temperature POM:-30℃~90℃ Polypropylene PP: +1℃~90℃ Rubber has highly elastic polymer material with reversible deformation, which is elastic at room temperature, can produce a large deformation under the action of a small external force, and can be restored to the original state after the removal of external force. Rubber belongs to completely amorphous polymer, its glass transition temperature is low, the molecular weight is often large, more than hundreds of thousands.
