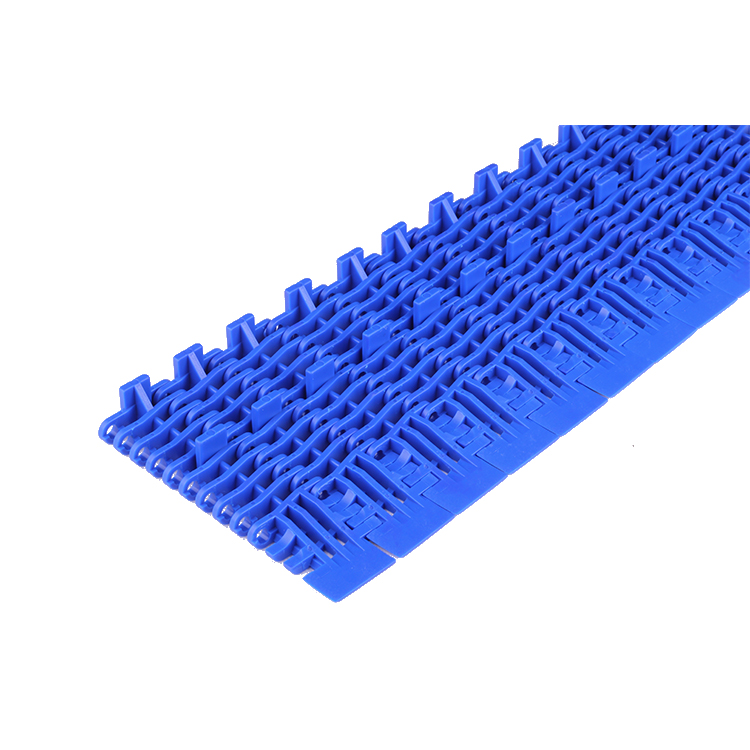

3 Spare Parts For 900 Modular Plastic Conveyor Belt
Short Description

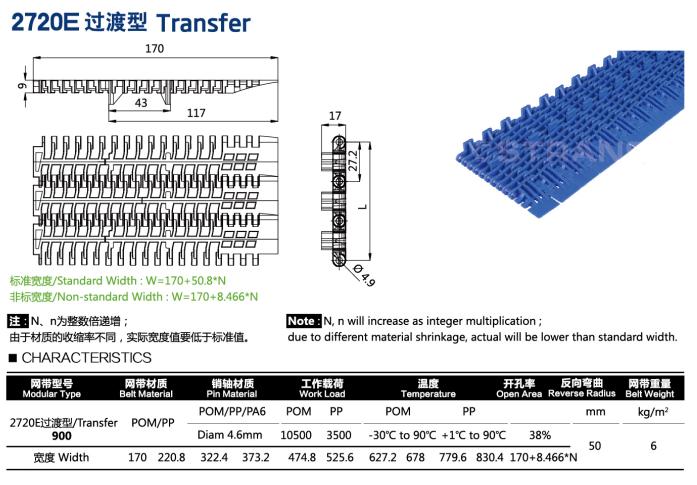

Parameter
| Modular Type | 900E (Transfer) | |
| Standard Width(mm) | 170 220.8 322.4 373.2 474.8 525.6 627.2 678 779.6 830.4 170+8.466*N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=170+8.466*N | |
| P it ch(mm) | 27.2 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 4.6mm | |
| Work Load | POM:10500 PP:3500 | |
| Temperature | POM:-30C°~ 90C° PP:+1C°~90C° | |
| Open Area | 38% | |
| Reverse Radius(mm) | 50 | |
| Belt Weight(kg/ ㎡ ) | 6 |

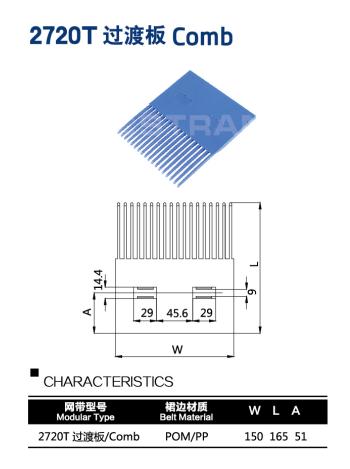

Comb and Side
| Modular Type | Belt Material | W L A |
| 900T（Comb） | POM/PP | 150 165 51 |

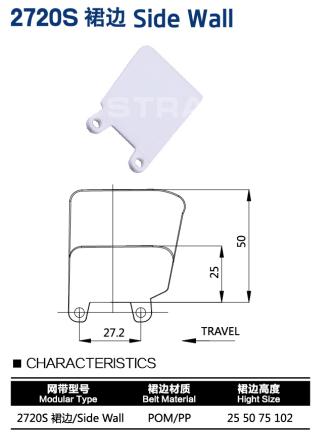

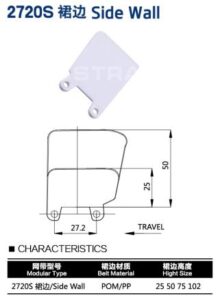

| M odular Type | Belt Material | Height Size |
| 9 00S (Side Wall ) | P OM/PP | 25 50 75 102 |
900 Injection Moulded Sprockets
| Model Number | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | m m | I nch | mm | Available on Request By Machined | |
| 3-2720-9T | 9 | 79.5 | 3.12 | 81 | 3.18 | 40*40 |
| 3-2720-12T | 12 | 105 | 4.13 | 107 | 4.21 | 30 40*40 |
| 3-2720-18T | 18 | 156.6 | 6.16 | 1 60 | 6.29 | 30 40 60 |
Application Industries
1. Food 2. Electronics, automobiles and logistics 3. Packing & can manufacturing 4. Pulses and granular products 5. Tobacco, medicine&chemical industry 6. packaging machine transmission applications 7. Various dip tank applications 8. Other industries
Advantage
1. Fast installation speed 2. Large transmission angle 3. Small space occupy 4. Low energy consumption 5. High strength and high wear resistance 6. Greater lateral stiffness and longitudinal flexibility 7. Able to increase the conveying Angle (30~90°) 8. Large throughput, higher lifting height 9. Smooth transition from horizontal to inclined or vertical
Physical and chemical properties
Acid and alkali resistance (PP) : 900 transition type using pp material in acidic environment and alkaline environment has better transport capacity; Antistatic electricity: The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity. Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves. Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Wear per unit area in unit time at a certain grinding speed under a certain load; Corrosion resistance: The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
