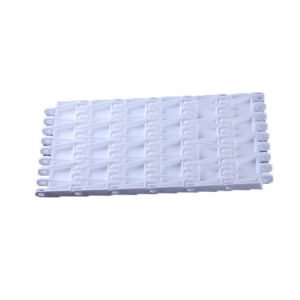

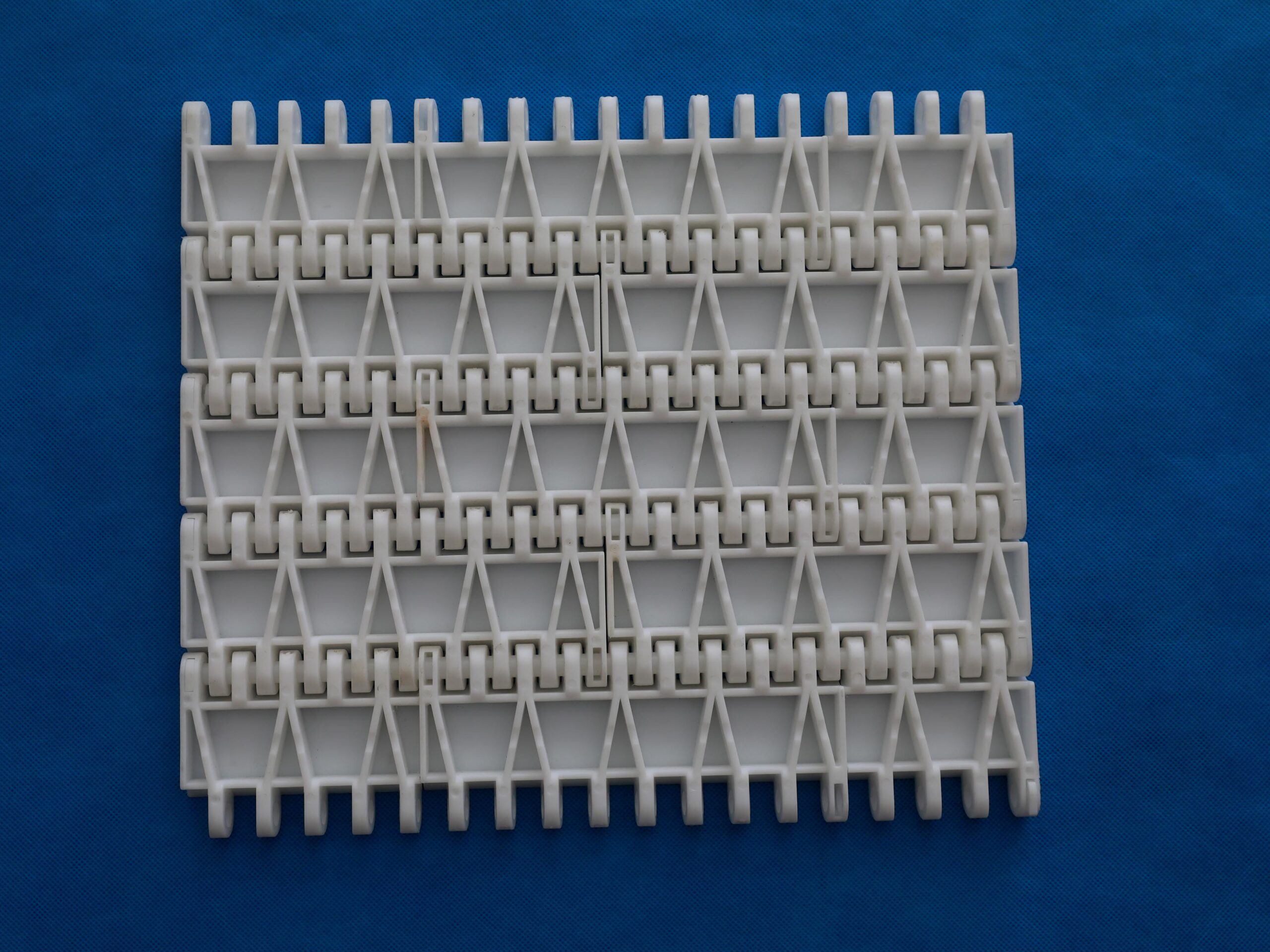

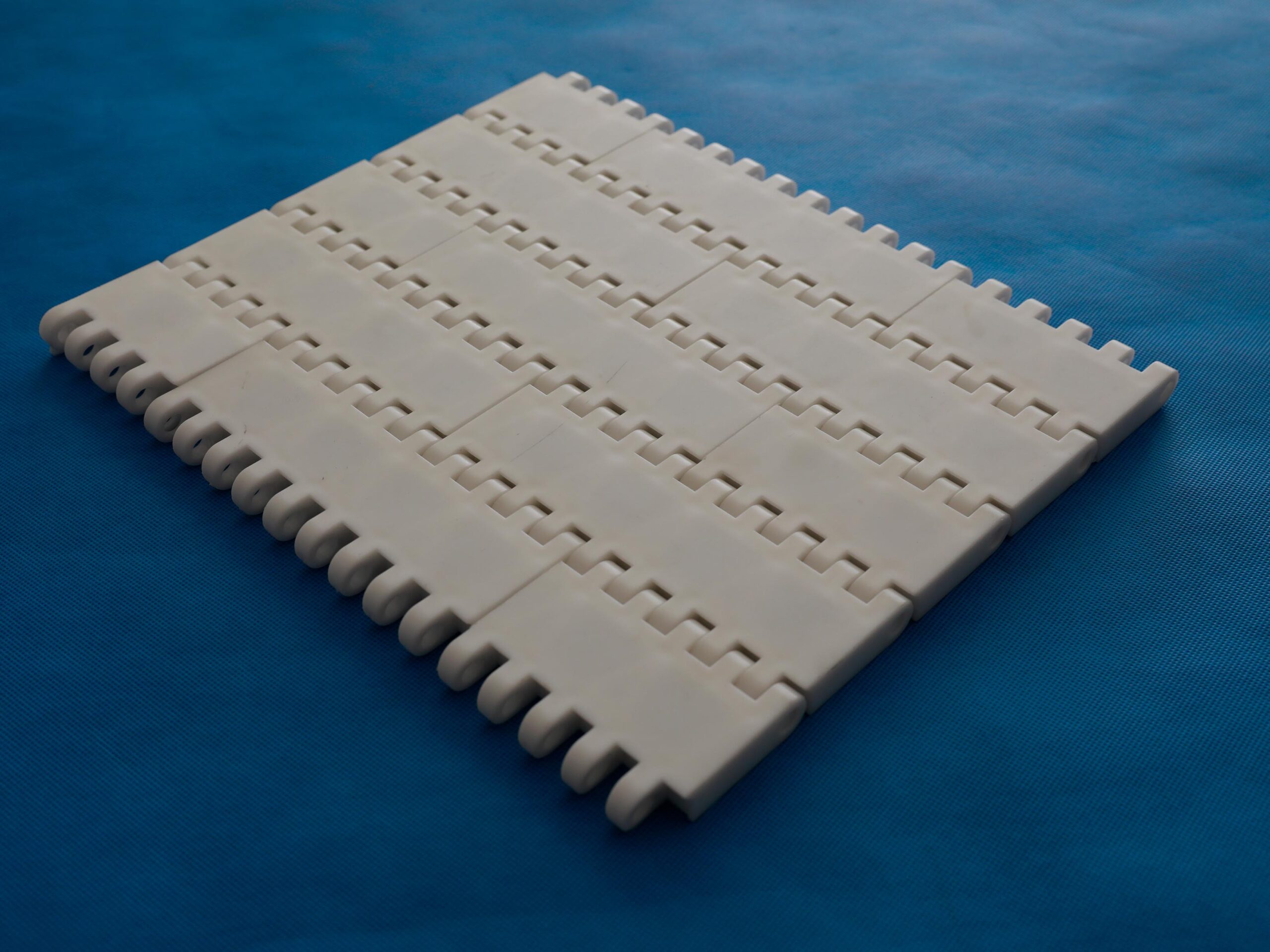

OPB modular plastic flat top conveyor belt
Parameter
| Modular Type | OPB-FT | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N |
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |

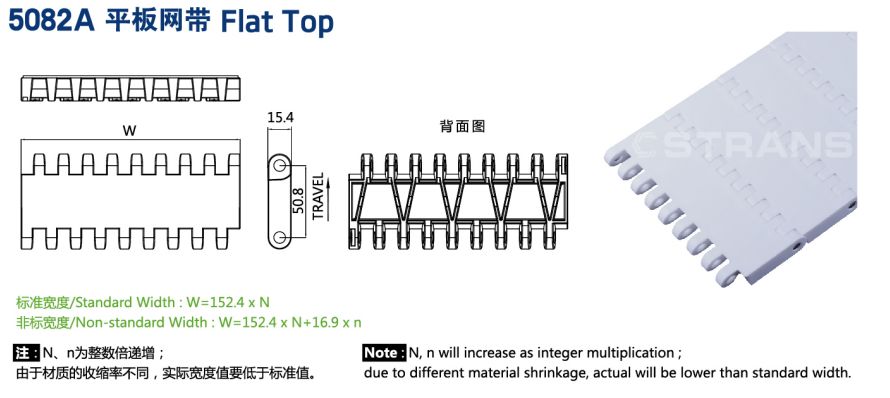

| Non-standard Width | W=152.4*N+16.9*n | |
| Pitch(mm) | 50.8 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 8mm | |
| Work Load | POM:22000 PP:11000 | |
| Temperature | POM:-30°~ 90° PP:+1°~90° | |
| Open Area | 0% | |
| Reverse Radius(mm) | 75 | |
| Belt Weight(kg/㎡) | 11 | |

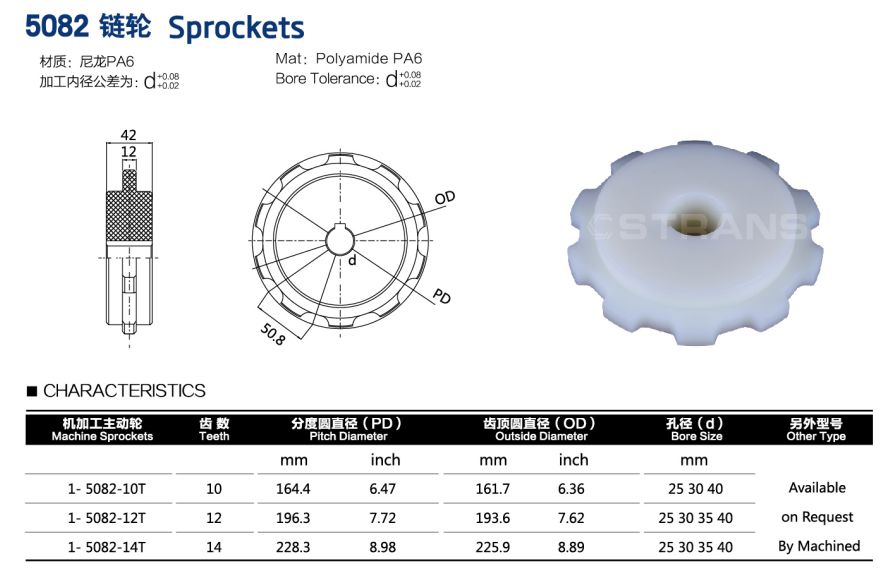

OPB Sprockets
| Machine
Sprockets |
Teeth | Pitch Diameter | Outside Diamter(mm) | Bore Size | Other Type | ||
| mm | inch | mm | inch | mm |
Available on Request By Machined |
||
| 1-5082-10T | 10 | 164.4 | 6.36 | 161.7 | 6.36 | 25 30 40 | |
| 1-5082-12T | 12 | 196.3 | 7.62 | 193.6 | 7.62 | 25 30 35 40 | |
| 1-5082-14T | 14 | 225.9 | 8.89 | 225.9 | 8.89 | 25 30 35 40 | |
Application Industries
Plastic bottle
Glass bottle
carton label
metal container
plastic bags
food,beverage
Pharmaceuticals
Electron
Chemical Industry
Automobile Part. Etc
Advantage
1. Can be easily repaired
2. Easily clean
3. Variable speeds can be fitted
4. The baffle and side wall can be easily fitted.
5. Many kinds of food products can be transported
6. Dry or wet products are ideal on modular belt conveyors
7. Cold or hot products can be transported.
Physical and chemical properties
Temperature resistance
POM: -30℃~90℃
PP: 1℃~90℃
Pin material: (polypropylene) PP, temperature: +1℃ ~ +90℃, and suitable for acid resistant environment.
Features and characteristics
OPB modular plastic conveyor belt, also known as plastic steel conveyor belt, Mainly used in plastic belt conveyor, It is a supplement to the traditional belt conveyor and overcomes the belt tear, puncturing, corrosion shortcomings, to provide customers with a safe, fast, simple maintenance of transportation. Because of using modular plastic conveyor belt is not easy to crawling like snake and running deviation, the scallops can withstand cutting, collision, and oil resistance, water resistance and other properties, So that the use of various industries will not be in trouble of the maintenance, Especially the belt replacement fee will be less.
OPB modular plastic conveyor belt widely used in Beverage bottles, aluminum cans, pharmaceuticals, cosmetics, food and other industries, Through the selection of different conveyor belt can made into bottle storage table, hoist, sterilizing machine, vegetable cleaning machine, cold bottle machine and meat transport and other industry special equipment.
