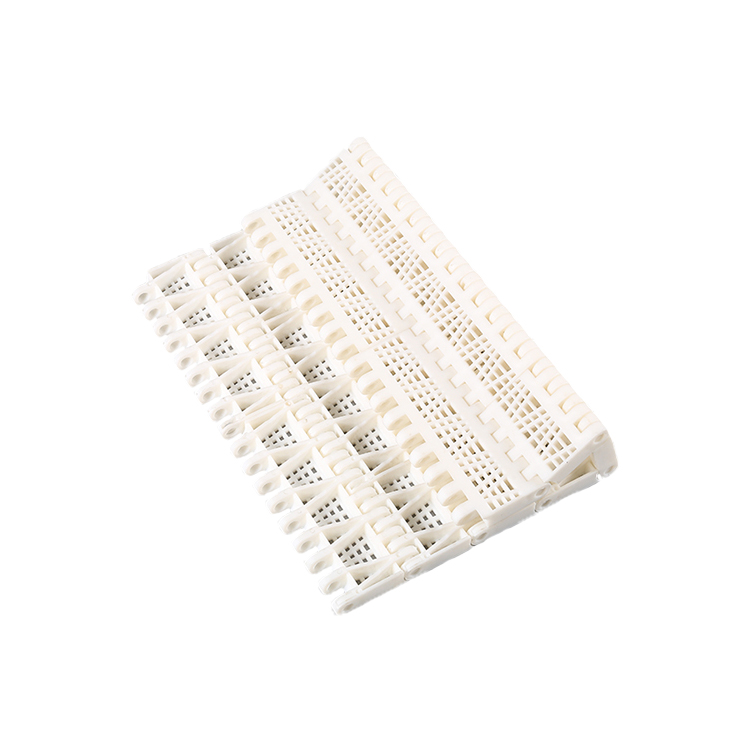

OPB modular plastic flush grid conveyor belt
Short Description
Parameters

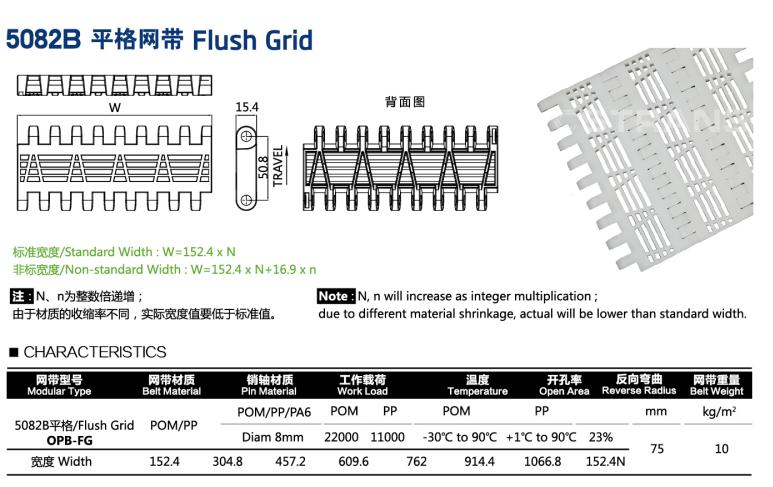

| Modular Type | OPB-FG | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=152.4*N+16.9*n | |
| P it ch(mm) | 50.8 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 8mm | |
| Work Load | POM:22000 PP:11000 | |
| Temperature | POM:-30°~ 90° PP:+1°~90° | |
| Open Area | 23% | |
| Reverse Radius(mm) | 75 | |
| Belt Weight(kg/ ㎡ ) | 10 |
OPB Sprockets
| Machine Sprockets | Teeth | P itch Diameter | O utside Diamter(mm) | B ore Size | O ther Type | |
| mm | i nch | m m | i nch | m m | A vailable on Request By Machined | |
| 1-5082-10T | 1 0 | 1 64.4 | 6 .36 | 1 61.7 | 6 .36 | 2 5 30 40 |
| 1-5082-12T | 1 2 | 1 96.3 | 7 .62 | 1 93.6 | 7 .62 | 2 5 30 35 40 |
| 1-5082-14T | 1 4 | 2 25.9 | 8 .89 | 225.9 | 8 .89 | 2 5 30 35 40 |
Application Industries
1. Fruit and vegetable lifting, washing, climbing. 2. Conveying for poultry slaughtering 3. Other Industries
Advantage
1. Varity complete 2. Customization is available 3. Competitive price 4. High quality and reliable service 5. Short Lead time
Physical and chemical properties
Temperature resistance
POM: -30℃~90℃ PP: 1℃~90℃ Pin material: (polypropylene) PP, Temperature: +1℃ ~ +90℃, and suitable for acid resistant environment.
Features and characteristics
The conveyor belt with different materials can play a different role in conveying to meet the needs of different environments, through the modification of plastic materials so that the conveyor belt can meet the requirements of environmental temperature between -30° and 120° Celsius.
Conveyor belt material has PP, PE, POM, NYLON.

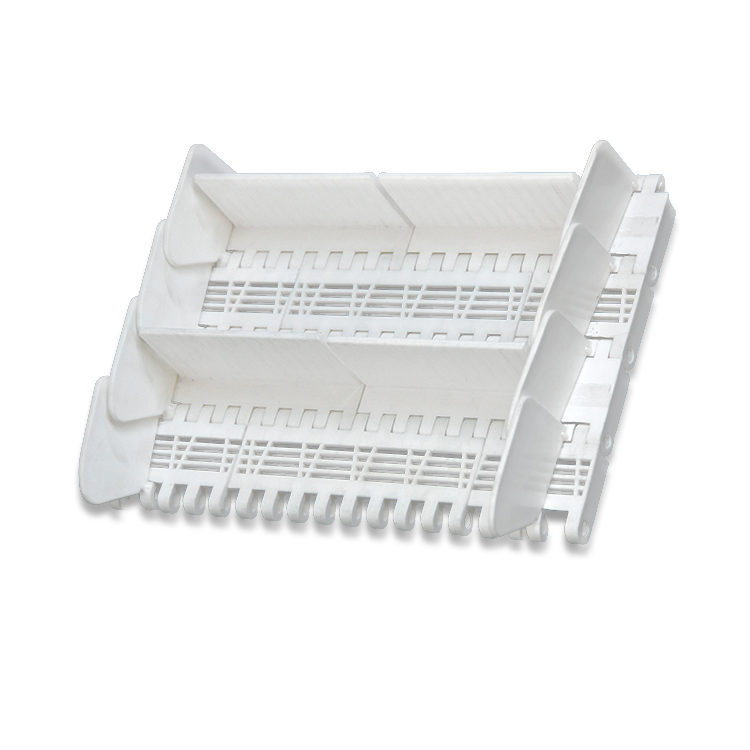

The structure forms can be: horizontal straight line conveying, lifting and climbing conveying and other forms, conveyor belt can be added with lifting baffle, side baffle.
Range of application:suitable for drying, dewetting, cleaning, freezing, canned food and other processes in various industries.

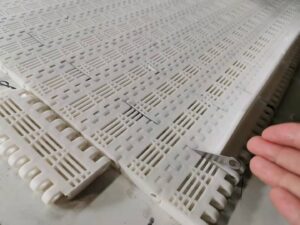

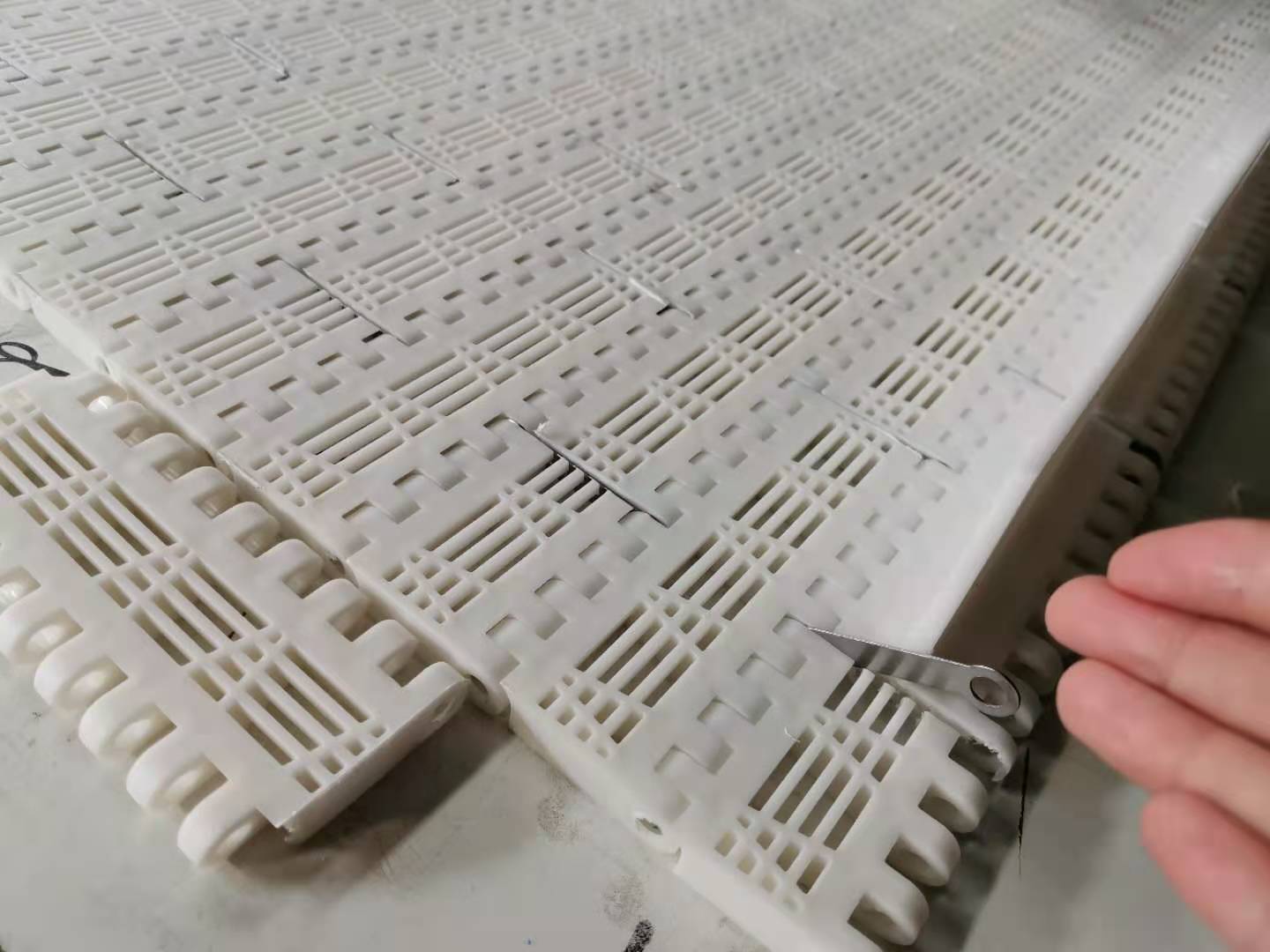

Modular conveyor belt with plastic hinged pin extending on the whole width of the conveyor belt, the injection molded conveyor belt assembly into interlocking unit, this method increases the strength of the conveyor belt, and can be connected into any required width and length. Baffle and side plate can also be interlocked with hinged pins, becoming one of the integral parts of the plastic steel conveyor belt.
