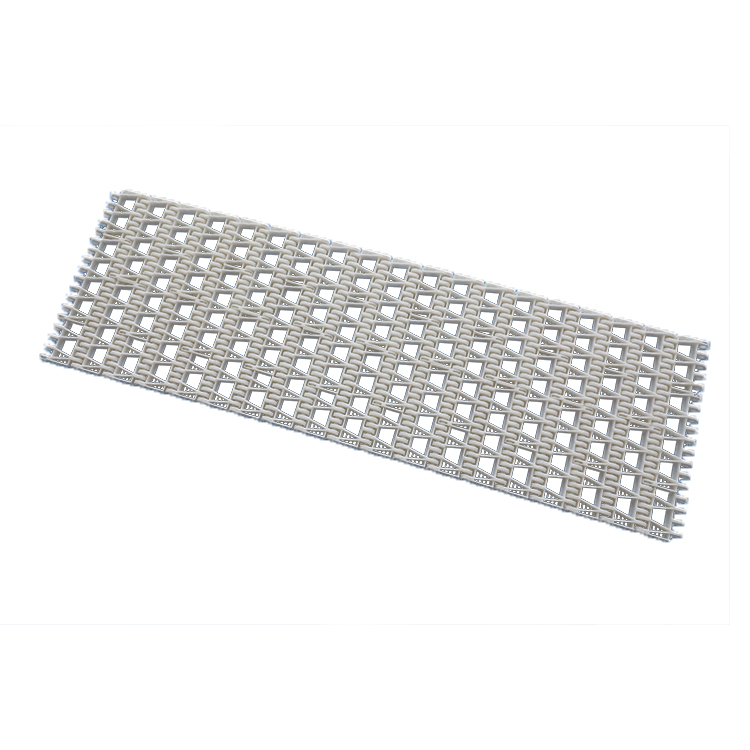

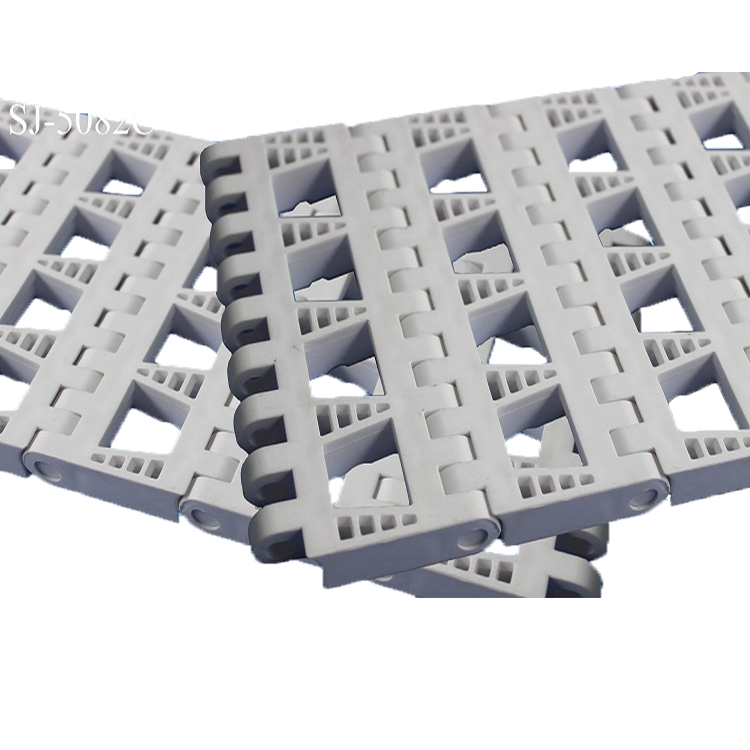

OPB with big hole plastic conveyor belt

Short Description:

OPB with big hole plastic conveyor belt applicable for high hollow requirements and good drainage effect conveyor.
It is the first recommended conveyor belt for cleaning industry.

Product Detail

Product Tags

Video

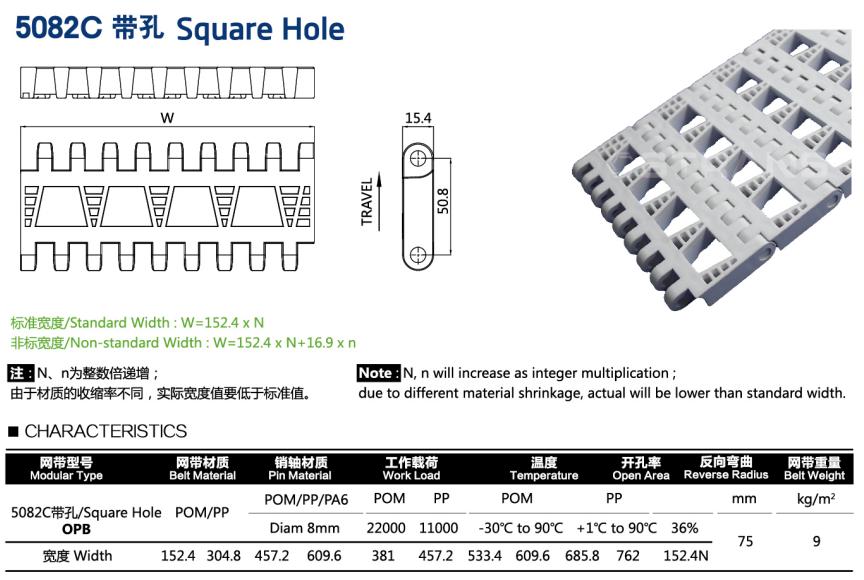

Parameters

bqeq
Modular Type OPB
Standard Width(mm) 152.4 304.8 457.2 609.6 685.8 762 152.4N

(N,n will increase as integer multiplication;
due to different material shrinkage,Actual will be lower than standard width)
Non-standard Width W=152.4*N+16.9*n
Pitch(mm) 50.8
Belt Material POM/PP
Pin Material POM/PP/PA6
Pin Diameter 8mm
Work Load POM:22000 PP:11000
Temperature POM:-30°~ 90° PP:+1°~90°
Open Area 36%
Reverse Radius(mm) 75
Belt Weight(kg/) 9

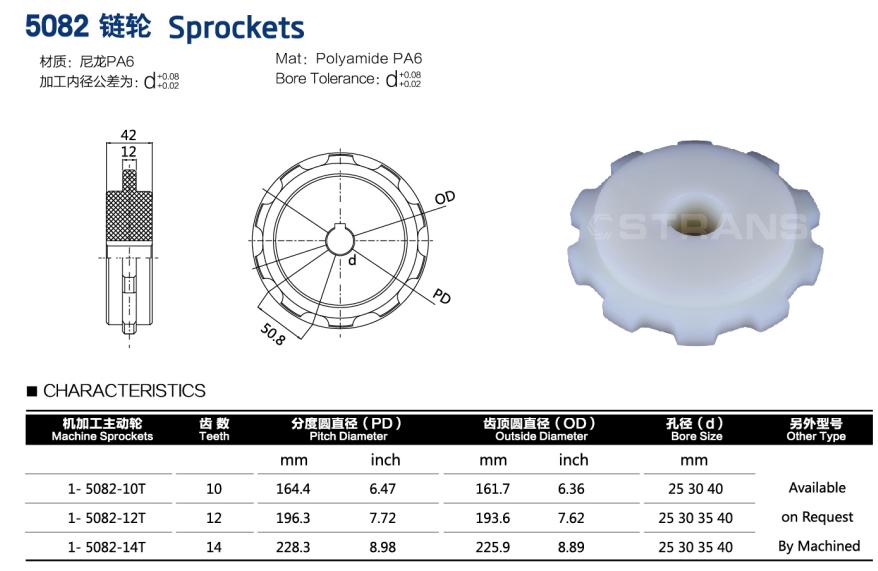

OPB Sprockets

fqwfa
Machine

Sprockets

Teeth Pitch Diameter Outside Diamter(mm) Bore Size Other Type
mm inch mm inch mm

Available on

Request By Machined

1-5082-10T 10 164.4 6.36 161.7 6.36 25 30 40
1-5082-12T 12 196.3 7.62 193.6 7.62 25 30 35 40
1-5082-14T 14 225.9 8.89 225.9 8.89 25 30 35 40

Application Industries

1. Pig, sheep, chicken, duck, slaughter cutting processing
2. Puffed food production line
3. fruit sorting
4. Packaging line
5. Aquatic processing production line
6. Quick-frozen food production line
6. Battery production
7. Beverage production

8. Can Conveying
9. Agricultural processing industry
10. Chemical industry
11. Electronic industry
12. Rubber and plastic manufacturing industry
13. Cosmetics industry
14. General conveying operation

Advantage

Overcoming pollution problems
It will not move like snake,not easy to deflect
Withstand cutting, collision, oil and water
Easy and simple belt replacement
Compliance with health standards
Conveyor belt surface will not absorb any impurities

Physical and chemical properties

Temperature resistance

POM: -30℃~90℃
PP: 1℃~90℃
Pin material: (polypropylene) PP, temperature: +1℃ ~ +90℃, and suitable for acid resistant environment.

Features and characteristics

1. Long service life
2. Easy maintenance
3. Strong wear resistance
4. Corrosion resistance, no need lubrication, It will not be permeated by the pollution sources such as blood water and grease

5. Strong stability and chemical resistance
6. No pores and gaps in the structure
7. Precision molding process
8. Customization is available
9. Competitive price

The conveyor belt with different materials can play a different role in conveying to meet the needs of different environments, through the modification of plastic materials so that the conveyor belt can meet the requirements of environmental temperature between -30° and 90° Celsius .
