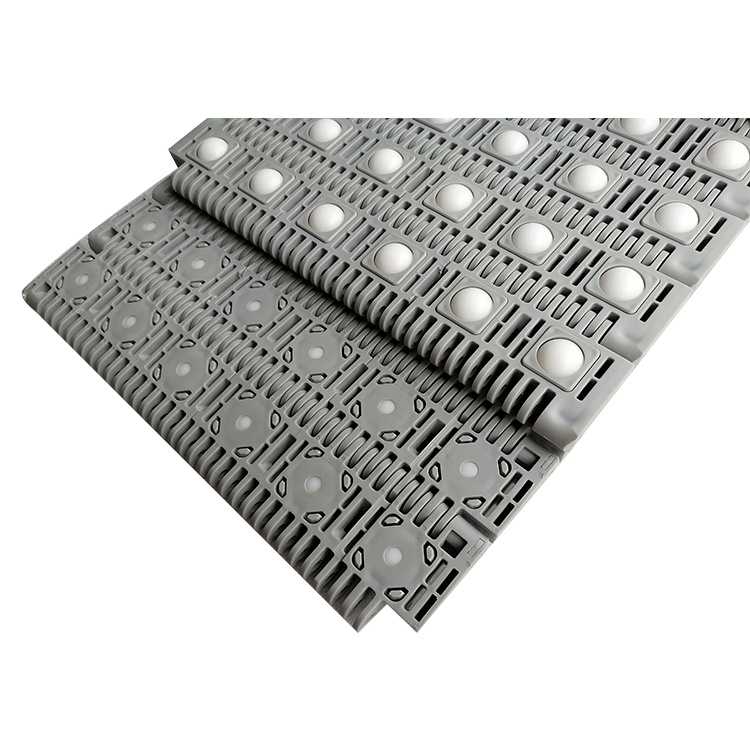

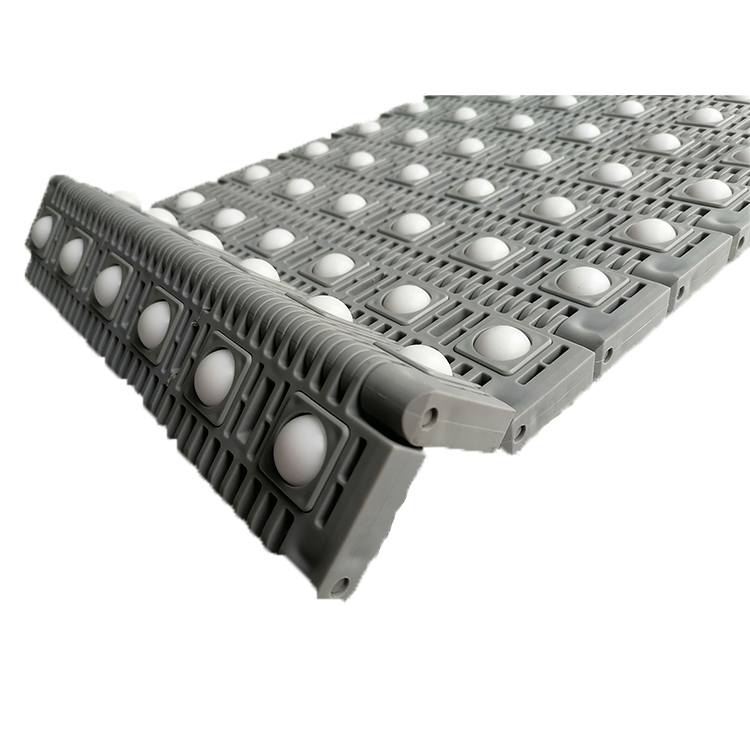

400 universal direction ball modular plastic conveyor belt

Short Description:

400 universal direction roller modular plastic conveyor belt can not only realize single direction conveying but also universal turn conveying ,It can through the assembly line to transport materials, sorting and other processes.

Product Detail

Product Tags

Video

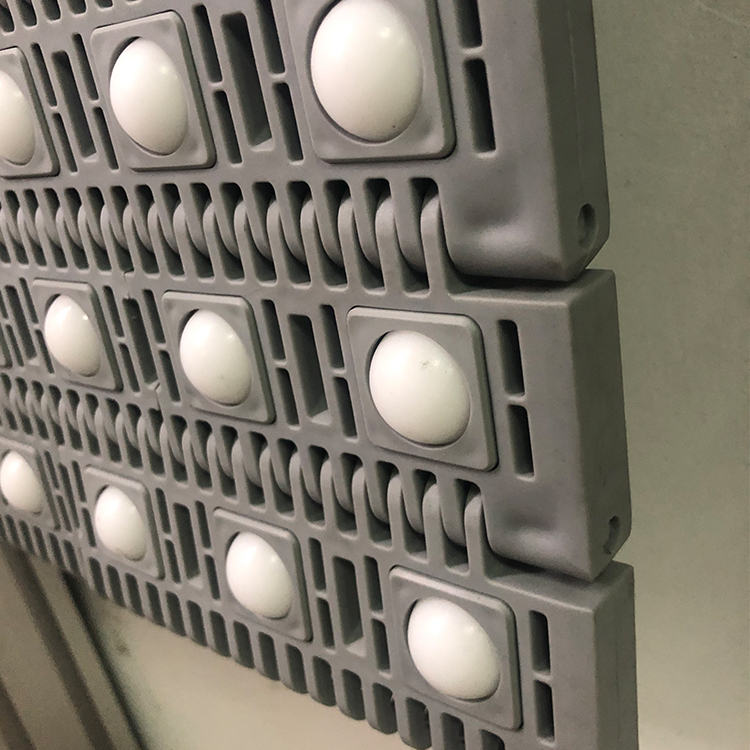

400 万向实物

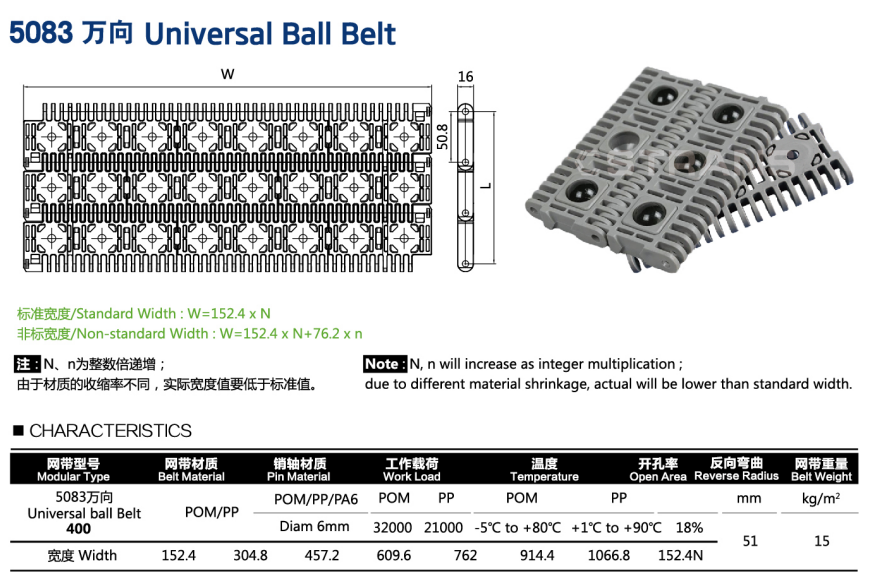

Parameter

123

Modular Type

400

Non-standard Width

152.4  304.8  457.2  609.6  762  914.4  1066.8  152.4N

Pitch(mm)

50.8

Belt Material

POM/PP

Pin Material

POM/PP/PA6

Pin Diameter

6mm

Work Load

PP:32000  PP:21000

Temperature

POM:-5℃ to 80℃ PP:+1℃ to 90C°

Open Area

18%

Reverse Radius(mm)

51

Belt Weight(kg/)

15

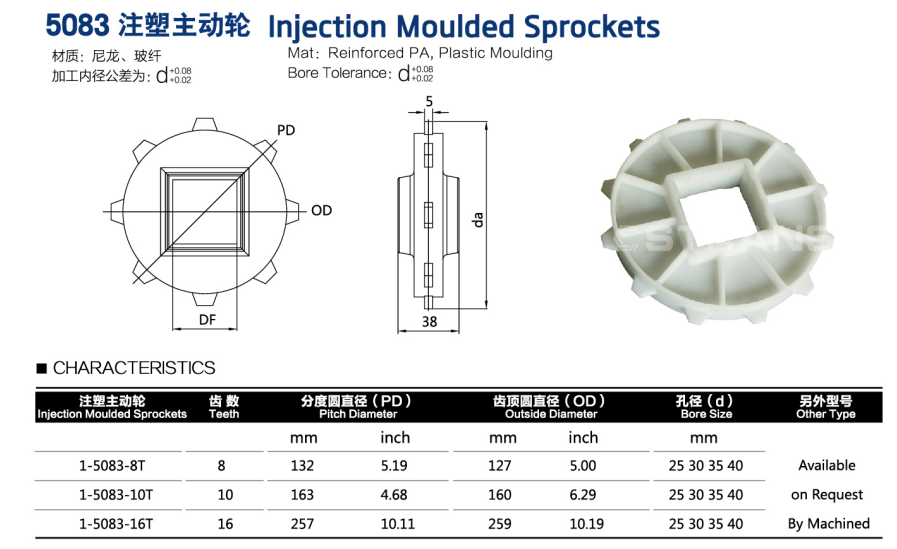

400 Machined Sprockets

1234
Injection Mouded Sprockets



Teeth

Pitch Diametet(mm)

Outside Diameter

Bore Size

Other Type

mm Inch mm Inch mm

Available on

Request By Machined

1-5083-8T

8

132

5.19

127 5.00 20 30 35 40
1-5083-10T

10

163

4.68

160 6.29 20 30 35 40
1-5083-16T

16

257

10.11

259 10.19 20 30 35 40





Application

1. Pharmaceutical

2. food processing

3. logistics

4. packaging

5.Other industries.

Advantage

1. With function both single conveying and multi-direction conveying.

2.Programmed control

3.Beautiful and generous appearance

4.Reliable quality and service

5.Professional production

6.Factory direct sell

7.Both standard and customization are available

400 universal direction roller modular plastic conveyor belt also suitable for machinery, hardware, chemical, food, supermarket, airport, warehouse and other industries.  It is widely used in logistics, transmission industry of mechanical bearing, assembly line, conveyor, transmission motor, and other conveying equipment, as well as object turning, confluence part . 400 universal direction ball modular plastic conveyor belt including belt noumenon , noumenon including several successively ball modules,the ball modules including fixed clip and a plurality of universal direction ballin the fixing frame.Both upper side and bottom side of the universal ball are bulgy,the fixing frames connects by pins and plugs.Therefore in all words this kind of belt is really very helpful in real life.
