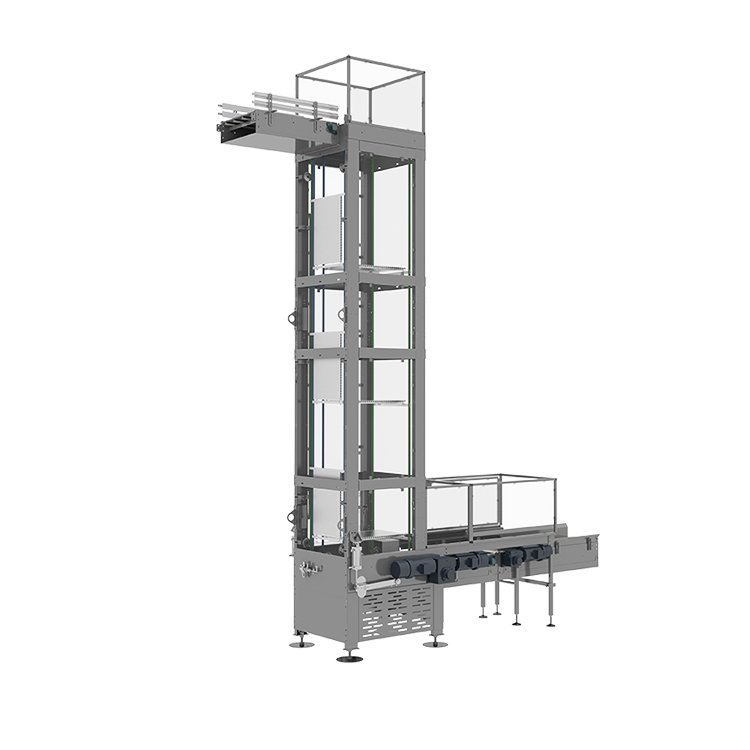

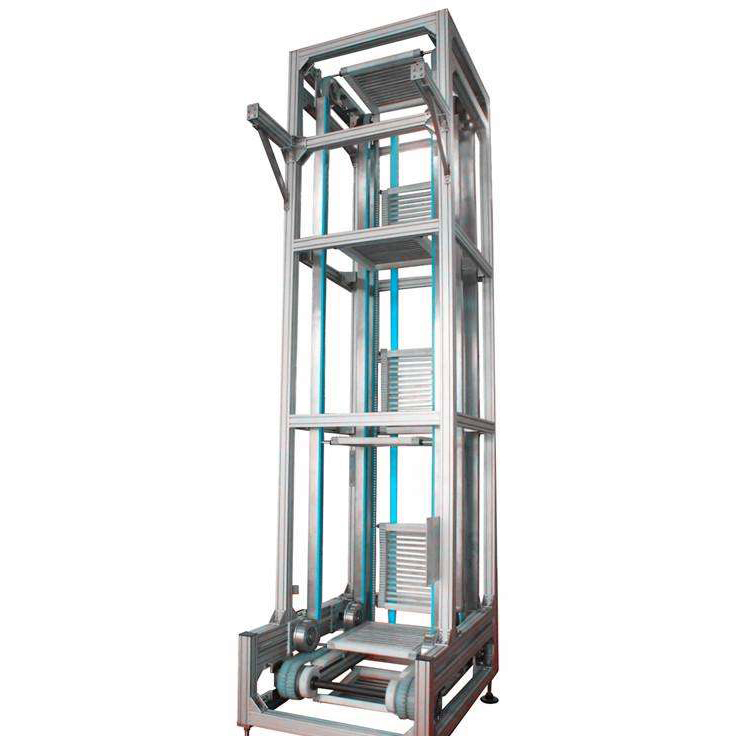

High quality continuous vertical conveyor (CVCs)

High quality continuous vertical conveyor (CVCs) Featured Image
  • High quality continuous vertical conveyor (CVCs)
  • High quality continuous vertical conveyor (CVCs)
  • High quality continuous vertical conveyor (CVCs)
Height
0-30m
Speed
0.2m~0.5m/s
load
MAX500KG

Short Description

A continuous vertical conveyor moves supported unit loads between elevations on carriers arranged along a circulating path. The carrier, infeed conveyor and outfeed conveyor must reach compatible transfer states so the load remains supported as it enters and leaves. Select the arrangement, product range and sustained rate for the proposed line.

Parameter



Height0-30m
Speed0.2m~0.5m/s
loadMAX500KG
Temperature-20℃~60℃
Humidity0-80%RH
PowerMin.0.75KW

Advantage

Vertical transport can connect conveyors at different heights and make use of vertical space. Confirm the product sizes and weights, carrier support, entry and discharge elevations, transfer direction and maintenance access for the proposed route.

Application

Containers, cartons, trays and other unit loads need a carrier and transfer arrangement suited to their base and stability. Confirm the intended product range before selecting the carrier type, loading and unloading method, and number of levels. If bags or pallets are proposed, define their actual support requirements for review with the conveyor configuration.

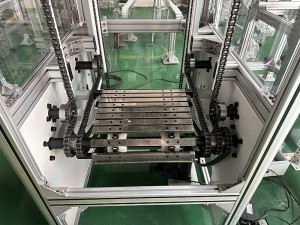

lift conveyor 1
lift conveyor 1
lift conveyor2
提升机2
CE for CS Continuous Vertical Lift Conveyor System
