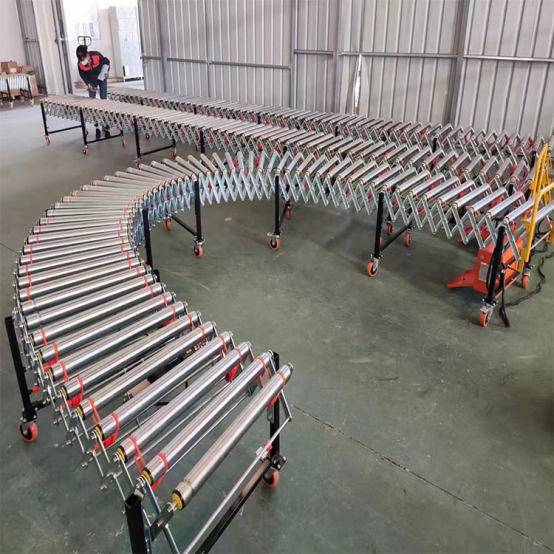

Flexible retractable roller conveyor

Short Description:

The flexible telescopic roller conveyor can carry out horizontal and inclined transmission, and can also form a space transmission line, which is generally fixed. With large conveying capacity, long distance, it also can complete a number of process operations at the same time of conveying, so it is widely used.

Product Detail

Product Tags

Features

Different drive concepts (gravity, tangential chains, drive rollers) for a wide range of possible applications
Friction rollers allow for accumulated operation
For transporting piece goods such as solid boxes or pallets with rigid, flat bases
Rollers mounted on ball bearings for high loads with low drive power
Compact design for easy integration into complex machines
All systems available in straight lines or curves
Wide range of different roller types
Easy to install and maintain
Fast roller replacement
Chain guide and protective guard integrated

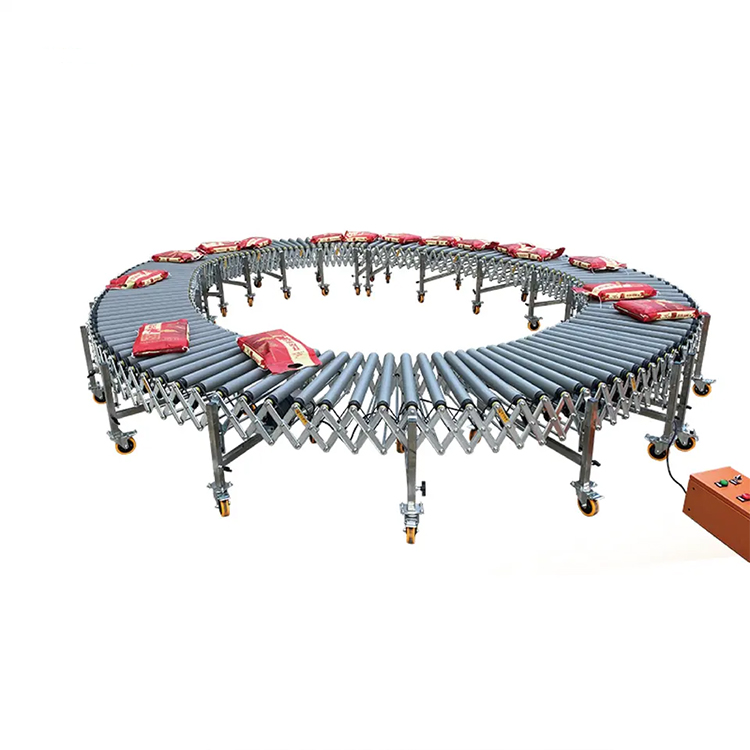

flexible roller conveyor-1

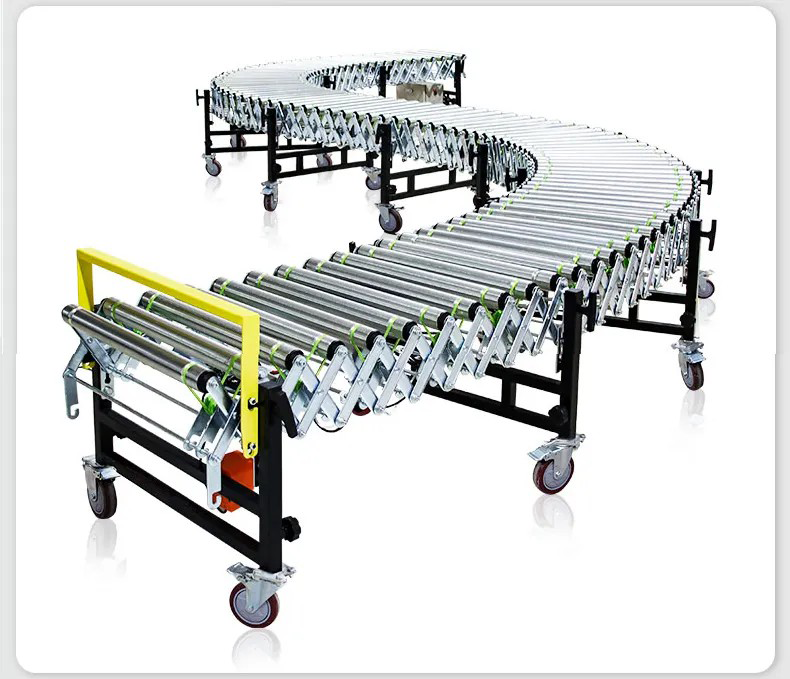

12_01

Characteristics and Advantages

Flexible telescopic roller conveyor is a frame conveyor by using stretchable components as racks.
1.small occupancy area, flexible expansion, flexible push, unit length and short ratio of 3 times.
2. the direction is changeable, can flexibly change the transmission direction, the maximum can reach 180 degrees.
3. the transmission carrier is diverse, the transmission carrier can be roller, can also be a roller.
4. with electric roller or micro motor drive can be more convenient, more labor-saving.
5. the height of the tripod can be adjusted, and the direction can be controlled by universal brake casters.

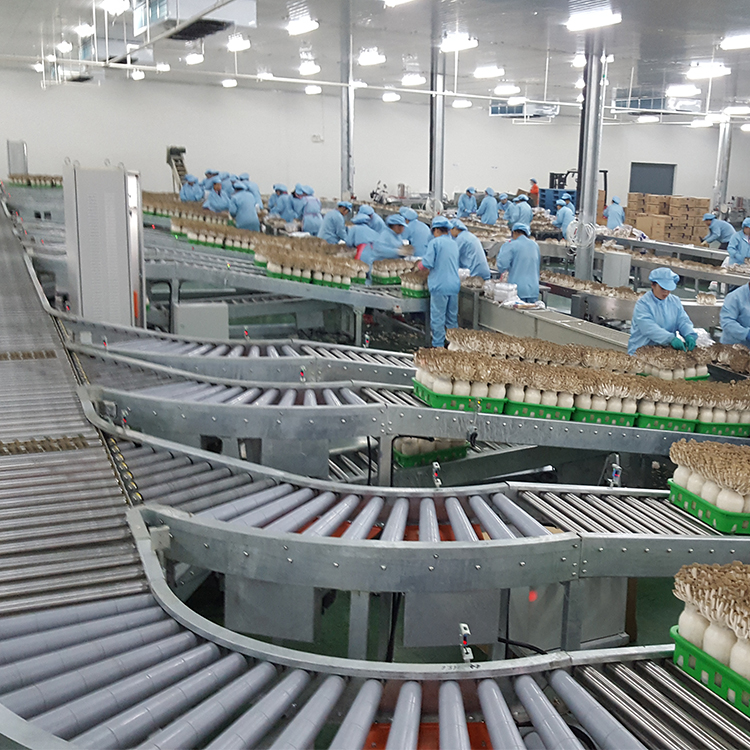

Application

1.Warehousing & Logistics Transport Conveyors
2.Food & Drink Safe Conveyors
3.Factory & Production Line
4.Conveyors Sortation Equipment

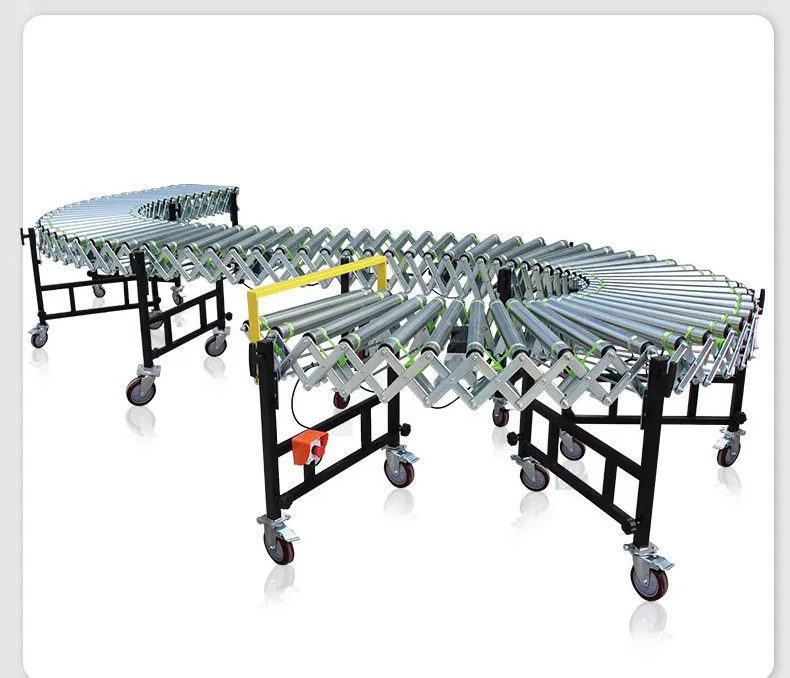

12_02

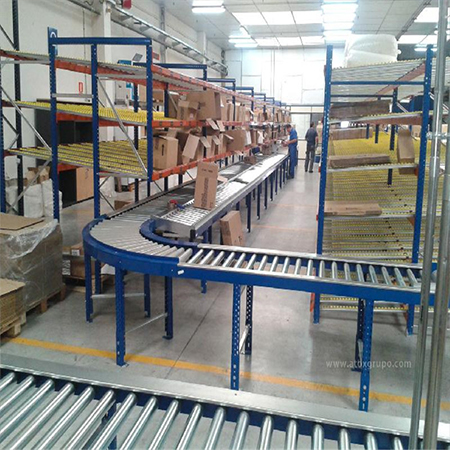

滚动-1

Types of flexible roller conveyor

1.Flexible Gravity Roller Conveyors
These conveyors use full width rollers in either zinc plated steel or PVC. On wider models the rollers may not be full width to allow for free product movement on wide loads. In this case multiple rollers are used to achieve the total width. Both types roll freely but the PVC version will be slightly lighter to move around, whereas the steel rollers will be more robust. There's not a big price difference between Steel and PVC rollers, with steel being slightly more expensive, so if in doubt about product weight and your working environment, we usually recommend steel rollers as they are more robust.

2.Flexible Gravity Skatewheel Conveyors
Skatewheel type flexible conveyors essentially do the same work as roller conveyors, but the skatewheel design of multiple wheels on an axle make the conveyors lighter to use than full width rollers. Also some packages transfer around corners better with skatewheels.



3.Flexible Powered Roller Conveyors
Where a gravity system may not be able to carry out the task you require your flexible conveyor to perform, you might consider a powered roller version. Although more expensive than the gravity versions, these powered extending roller conveyors can expand just like their gravity counterparts, but the use of motors to power the rollers mean that longer distances can be covered without the drop in height needed to move products under gravity. Sensors can also be fitted to start/stop the conveyor when a product gets to the end.
