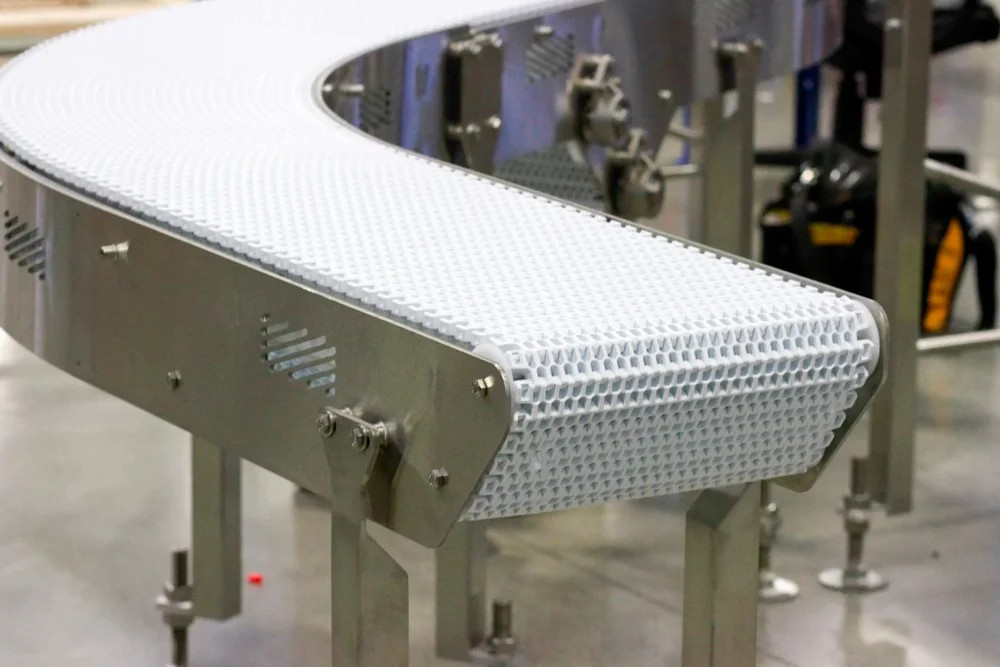

Turning Plastic Modular Belt Conveyor System

Short Description:

Modular belt conveyors are extremely stable and can be used for almost every transport application. The belts are wear resistant and can even be used to conveying product with sharp edges. The conveyor system offers various chain or belt materials to make it suitable for food, suitable for high temperatures or resistant to chemicals.

Send email to us

Product Detail

Product Tags

Parameter

Type of goods	Loose piece goods, boxes
Type of ways	Curve 45°, 90°, 135° und 180°
Length	individual 475-10000 mm
Width	164, 241, 317, 394, 470, 546, 623, 699, 776, 852, 928, 1005 mm
Speed	up to 30 m/min
Maximum load	up to 150 kg
Effective width	bis B = 394mm ist die Nutzbreite BN = B-30mm, ab B = 470mm ist BN = B-35mm
Course of curve	L, S und U
Drive versions	AC, AF, AS

Features of CSTRANS Modular Belt Conveyors

1.Wear and corrosion resistance.
2.Running smoothly.
3.Transportation planing.
4.Suitable for bottles,cans,carton etc for transportion.
5.Width of chain conveyor from 90mm to 2000mm(customize).
6.Frame material:stainless steel,carbon steel, Aluminum.

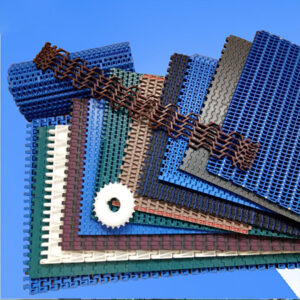

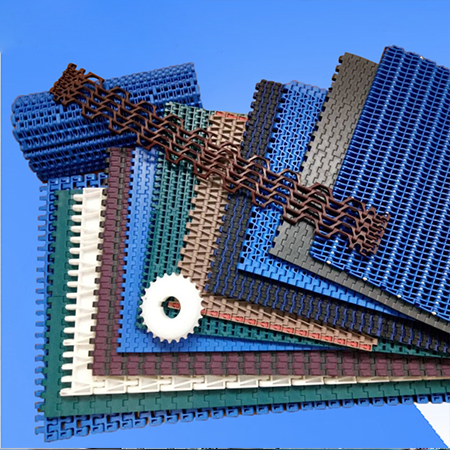

7.Chain material:POM,PP,stainless steel.
8.Less than 10 meter for one motor to drive(if you use one motor)
9.Less than 40 meter of conveyor length(General)

Application

CSTRANS Modular Belt Conveyors can be widely used in the field of

1.express 6.beverage

2.logistics 7.airport

3.industrial 8.car wash

4.medical 9.automobile manufacturing

5.food 10.other industries.

Advantages Of Our Company

Our team has extensive experience in design, manufacturing, sales, assembly and installation of modular conveyor systems. Our goal is to find the best solution for your conveyor application, and apply that solution in the most cost-effective way possible. Using specialized techniques of the trade, we can provide conveyors that are higher quality but less expensive than the other companies, without sacrificing attention to detail. Our conveyor systems are delivered on-time, within budget and with the highest quality solutions that exceed your expectations.

-17 years of manufacturing and R&D experience in the conveyor system

-10 Professional R&D Teams.

-100 Sets of Chains Molds

-12000 solutions

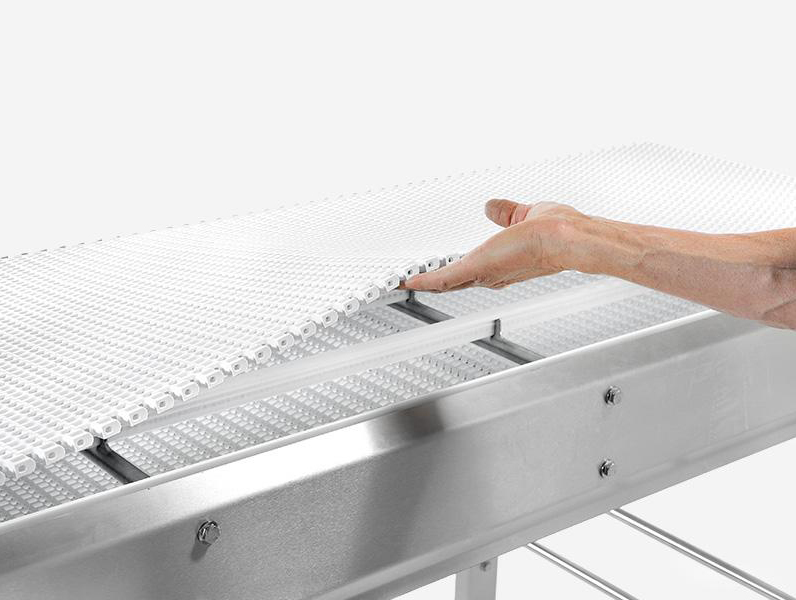

1.Chain can be opened for easy disassembly and for replacing/combining chain modules,
2.Very long conveying path for non-stop assembly
3.Interlinking stamped parts with spatial constraints
4.Incline version of the modular belt conveyor for mobile applications and vertical transport.
5.Straight version of the modular belt conveyor for flexible combination with curved and inclined track
