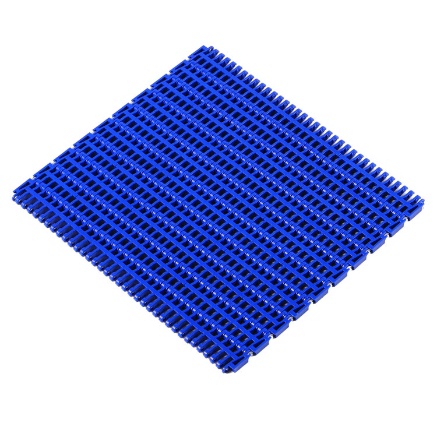

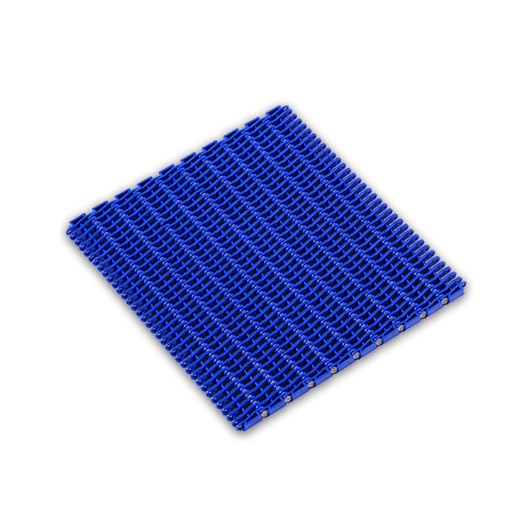

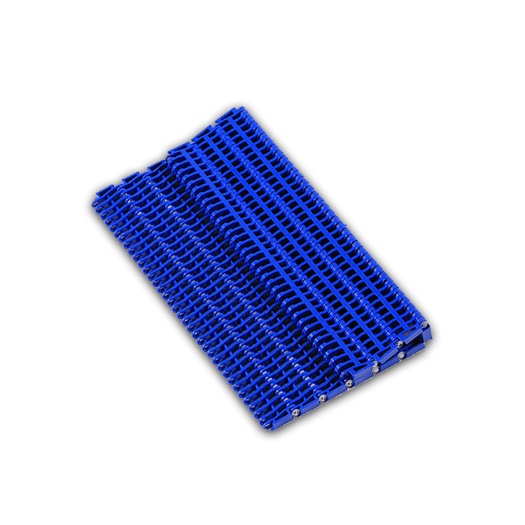

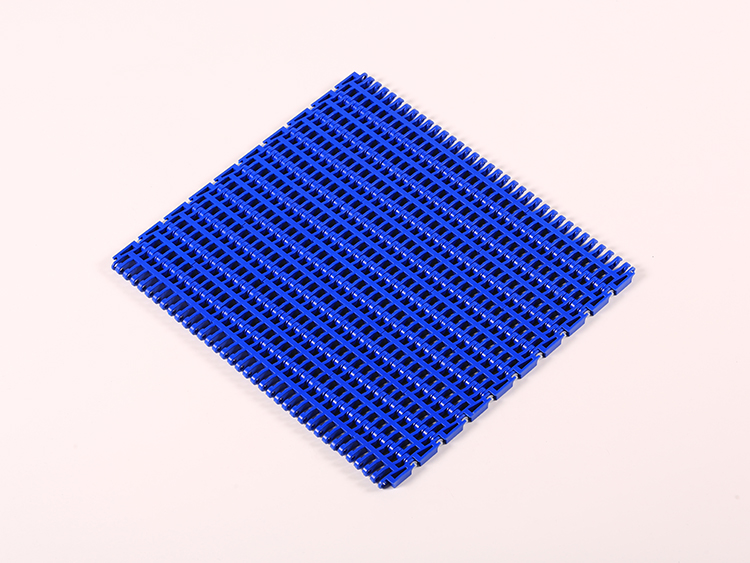

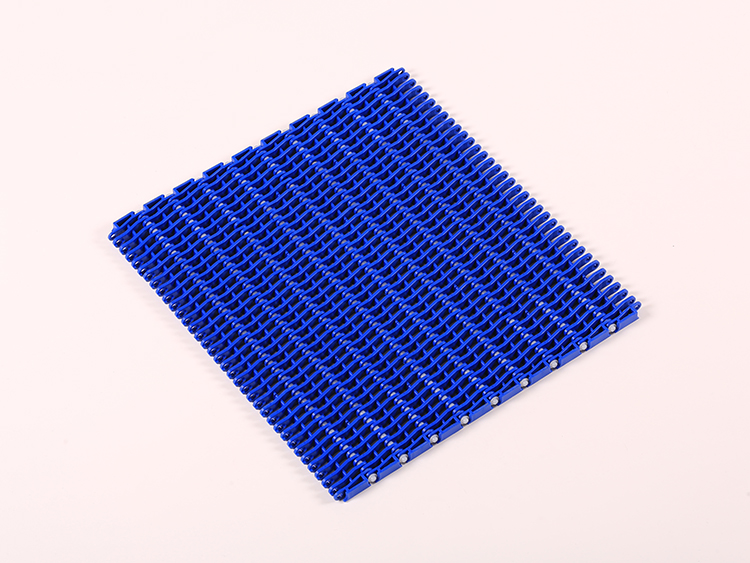

900 Flush Grid Modular Plastic Conveyor Belt
Short Description

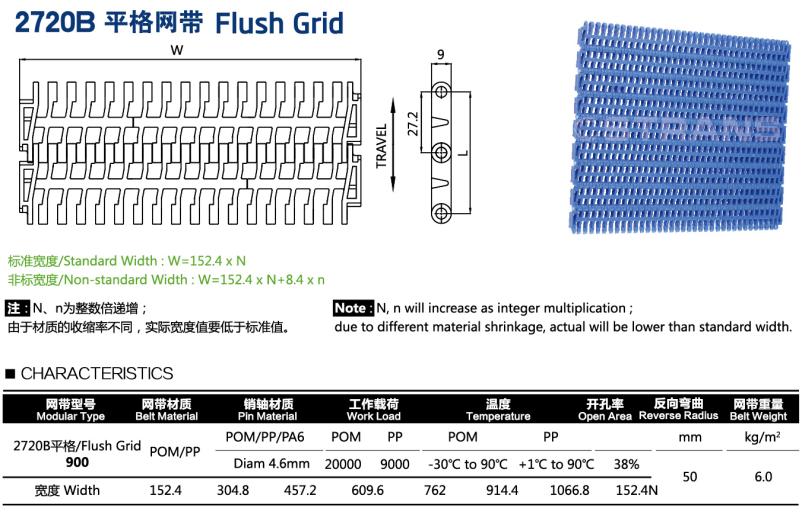

Parameter
| Modular Type | 900FG | |
| Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=152.4*N+8.4*n | |
| P it ch(mm) | 27.2 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 4.6mm | |
| Work Load | POM:20000 PP:9000 | |
| Temperature | POM:-30C°~ 90C° PP:+1C°~90C° | |
| Open Area | 38% | |
| Reverse Radius(mm) | 50 | |
| Belt Weight(kg/ ㎡ ) | 6.0 |
900 Injection Moulded Sprockets
| Model Number | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | |
| mm | Inch | m m | I nch | mm | Available on Request By Machined | |
| 3-2720-9T | 9 | 79.5 | 3.12 | 81 | 3.18 | 40*40 |
| 3-2720-12T | 12 | 105 | 4.13 | 107 | 4.21 | 30 40*40 |
| 3-2720-18T | 18 | 156.6 | 6.16 | 1 60 | 6.29 | 30 40 60 |
Application Industries
1. Canning industry 2. Beverage. 3. Storage battery 4. Food 5. Othere industries.
Advantage
1. Corrosion resistance, 2. Acid and alkali resistance, 3. High temperature resistance, 4. High strength, acid resistance, alkali resistance, salt water resistance, 5. Wide temperature range, 6. Good anti-viscosity, 7. Can add the gear plate, 8. Lifting Angle is large, 9. Easy to clean, simple maintenance
Physical and chemical properties
2720B flat grid belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic electricity: The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity. Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves.
Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Wear per unit area in unit time at a certain grinding speed under a certain load;
Corrosion resistance: The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
