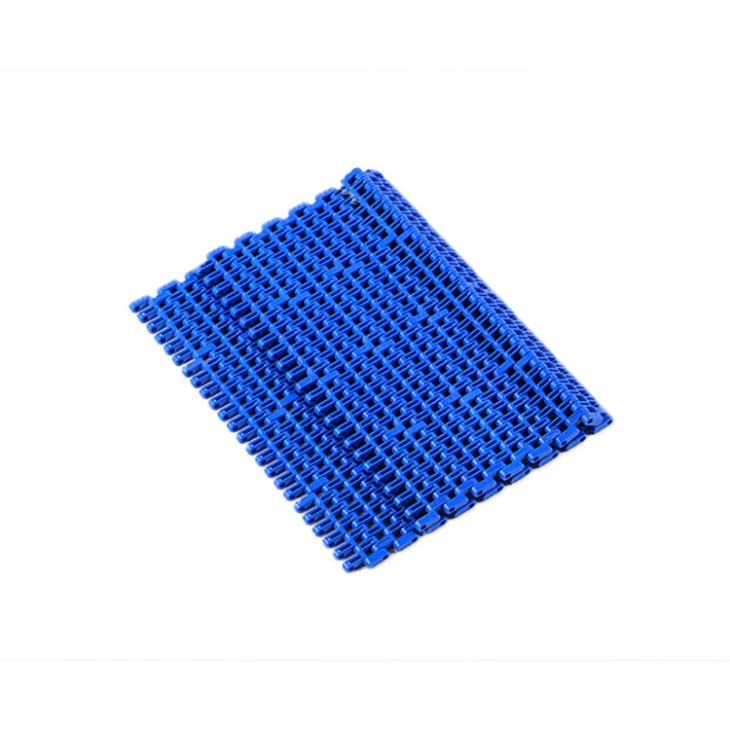

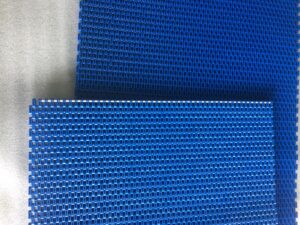

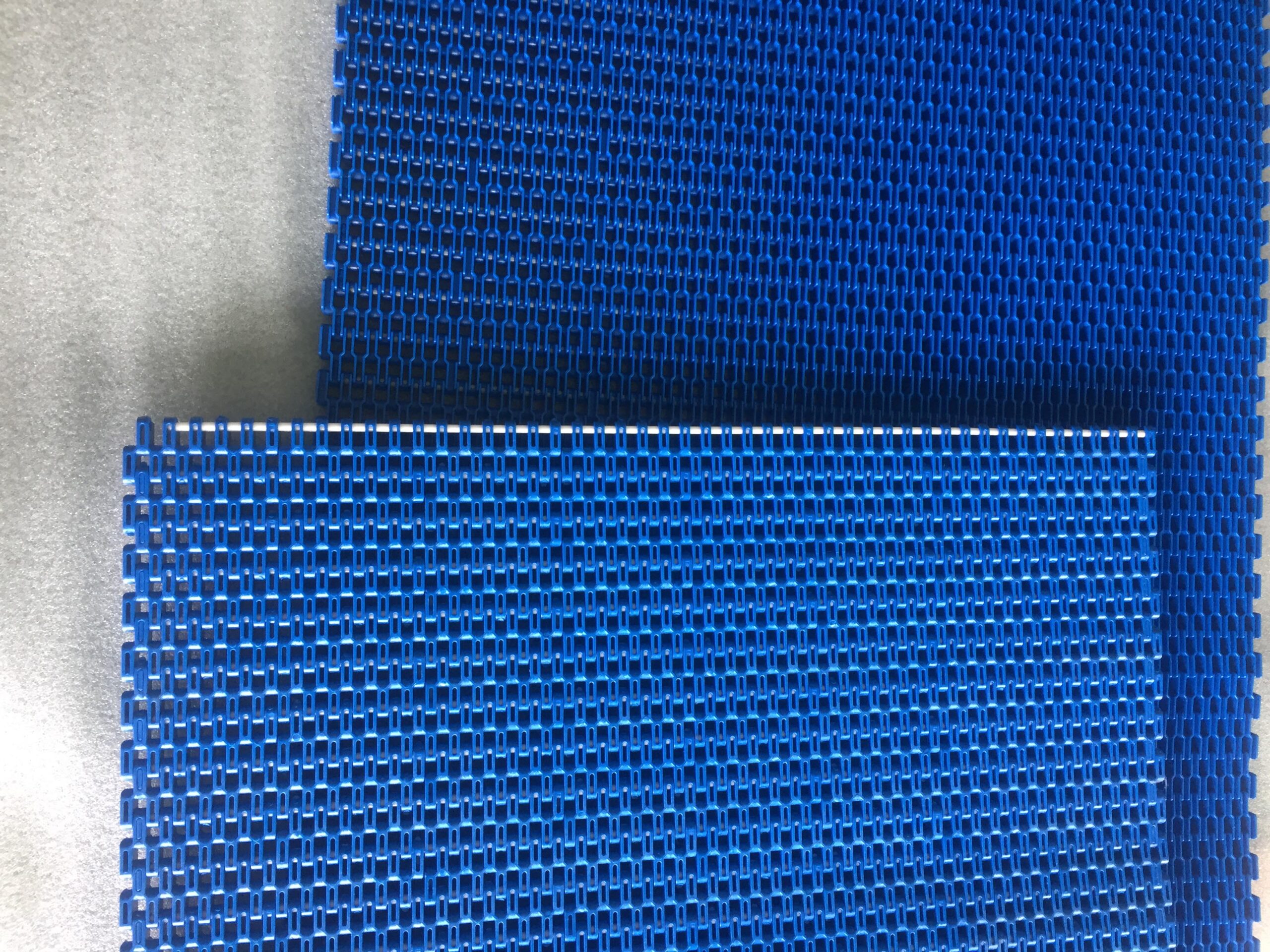

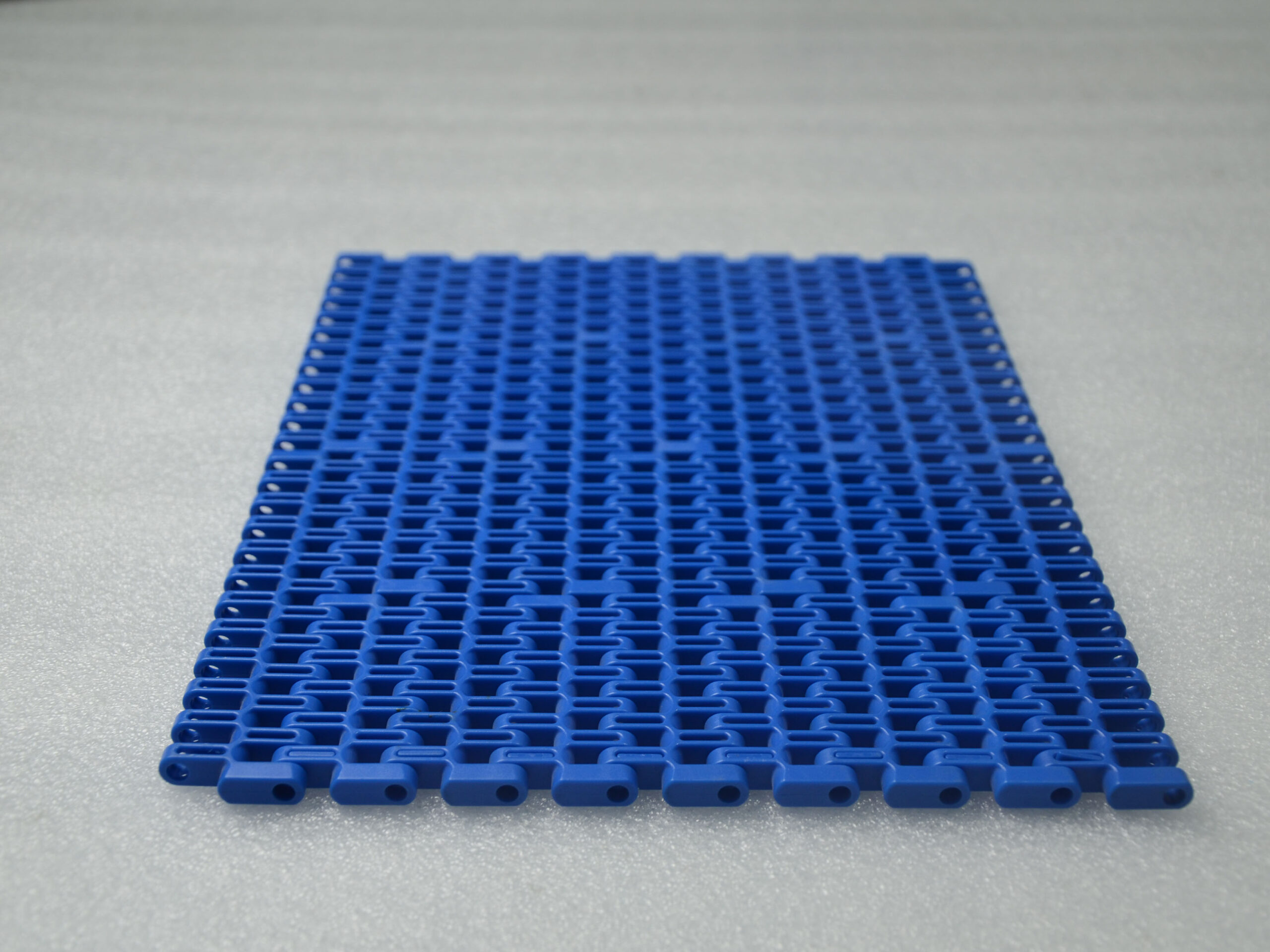

7300 Flat Top Modular Plastic Conveyor Belt
Short Description
Parameter
| Modular Type | 7300 Flush Grid | |
| Standard Width(mm) | 76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 76.2*N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | W=76.2*N+12.7*n | |
| P it ch(mm) | 25.4 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 5mm | |
| Work Load | POM:22000 PP:14000 | |
| Temperature | POM:-5C°~ 80C° PP:+5C°~104C° | |
| Open Area | 34% | |
| Reverse Radius(mm) | 30 | |
| Belt Weight(kg/㎡) | 6.9 |

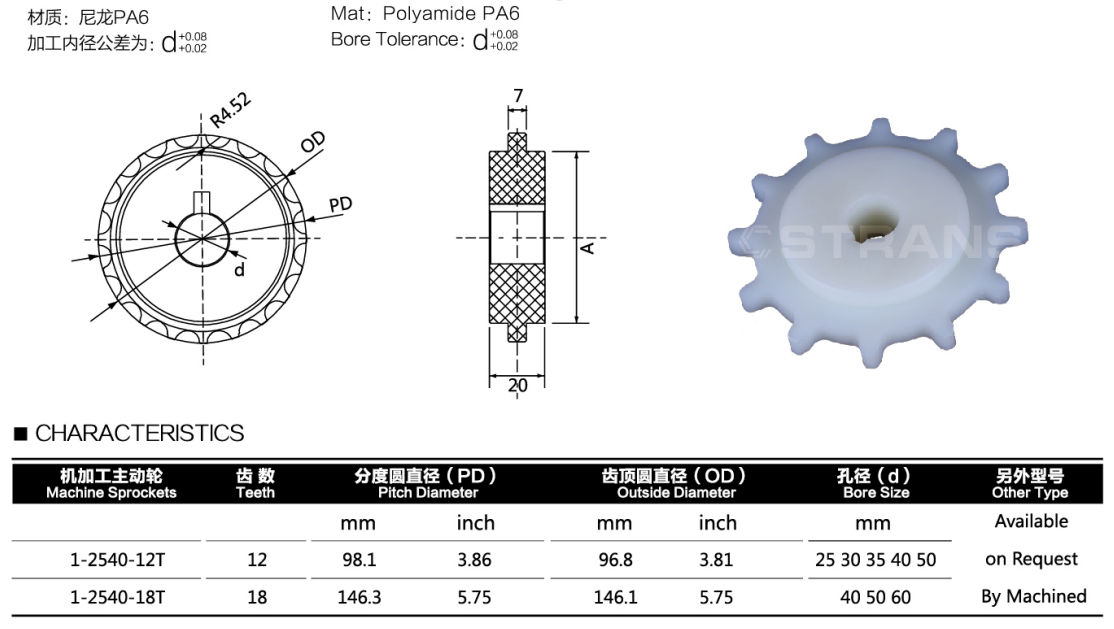

7300 Machined Sprockets
| Machined Sprockets | Teeth | Pitch Diametet(mm) | O utside Diameter | Bore Size | Other Type | |
| mm | Inch | m m | I nch | mm | Available On request By Machined | |
| 1-2540-12T | 12 | 98.1 | 3.86 | 96.8 | 3.81 | 25 30 35 40 50 |
| 1-2540-18T | 18 | 146.3 | 5.75 | 146.1 | 5.75 | 40 50 60 |
Application
1.Ready Meals
2.Fruits and vegetables
3.Packaging machine
4.labeling machine
5.Bakery
6.Dairy
7.Meat
8.poultry
9.seaf oo d
Advantage
1. Oil-Resistant
2. Acid And Alkali Resistant
3. Tear-Resistant
4. Heat-Resistant
5. Cold-Resistant
6. Wear-Resistant
7.Customization is avalaible
h.Color optional
8.Easy to assembly and maintain
9.High performance
10.Factory direct sale price
11.Reliable quality and after-sale service
Physical and chemical properties
Polyoxymethylene ( POM ) , also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers , it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.
POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene ( PP ) , also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene .
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar . Its properties are similar to polyethylene , but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.
Nylon 6 (PA6) or polycaprolactam is a polymer , in particular semicrystalline polyamide . Unlike most other nylons , nylon 6 is not a condensation polymer , but instead is formed by ring-opening polymerization ; this makes it a special case in the comparison between condensation and addition polymers .
