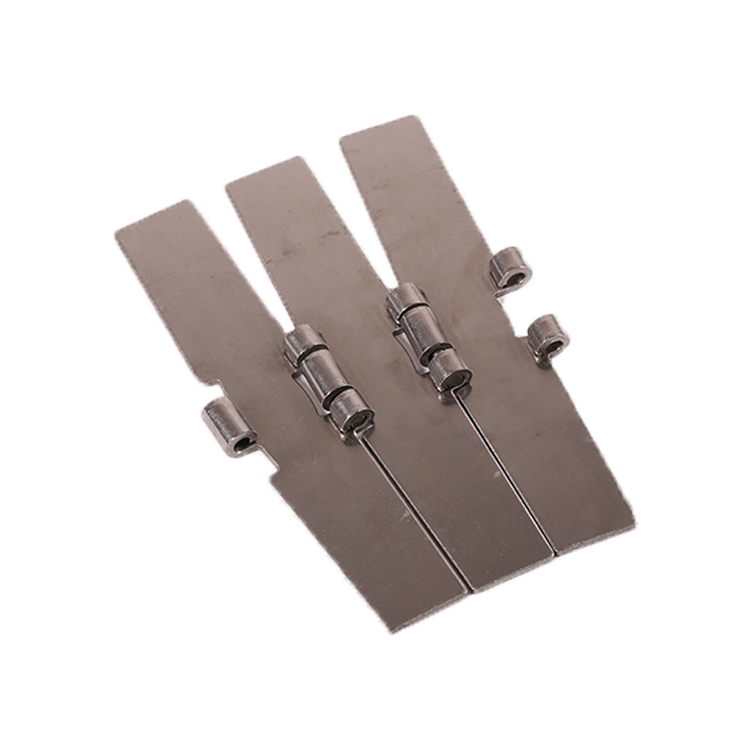

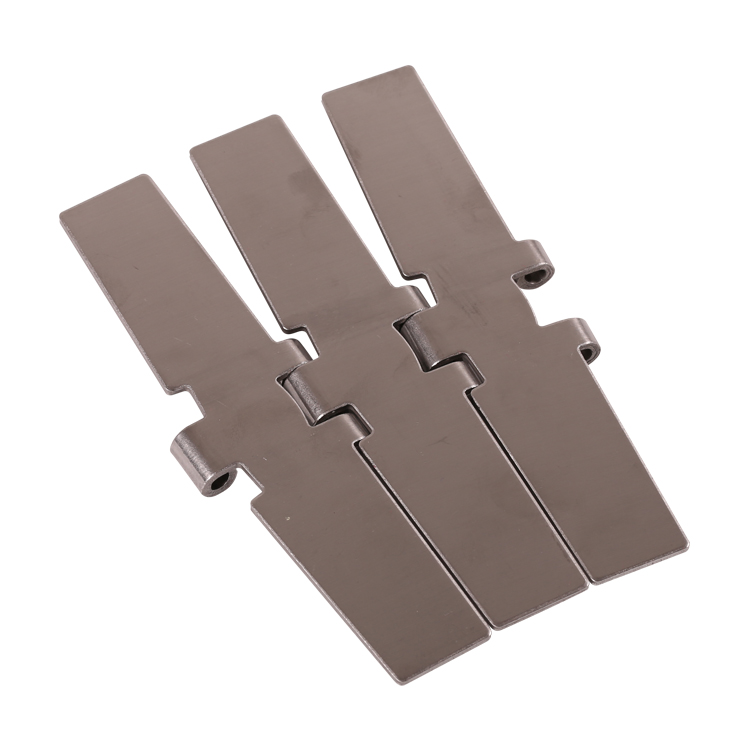

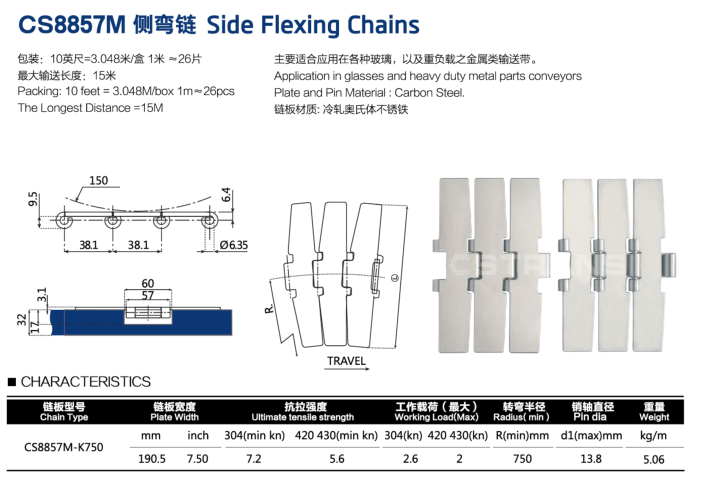

Conveyor Stainless Steel Magnetic Chains-SS8857M Side Flexing Chains
SS8857 Single Straight Chains
| Chain Type | Plate Width | Working load(Max) | Ultimate tensile strength | Weight | ||||
| mm | inch | 304（kn） | 420 430(kn) | 304(min kn) | 420 430(min kn) | Kg/m | ||
| SS8857M-K750 | 190.5 | 7.5 | 2.6 | 2 | 7.2 | 5.6 | 5.06 | |
| Pitch ：38.1mm | Thickness：9.5mm | Pin Dia(Max)：13.8mm | Radius(min): 750mm | |||||
| Material: ; ferritic stainless steel (magnetic)
Pin material：stainless steel. |
||||||||
| Maximum conveyor length: 15meters. | ||||||||
| Corner tracks or turning disks can be selected for curved transportation. | ||||||||

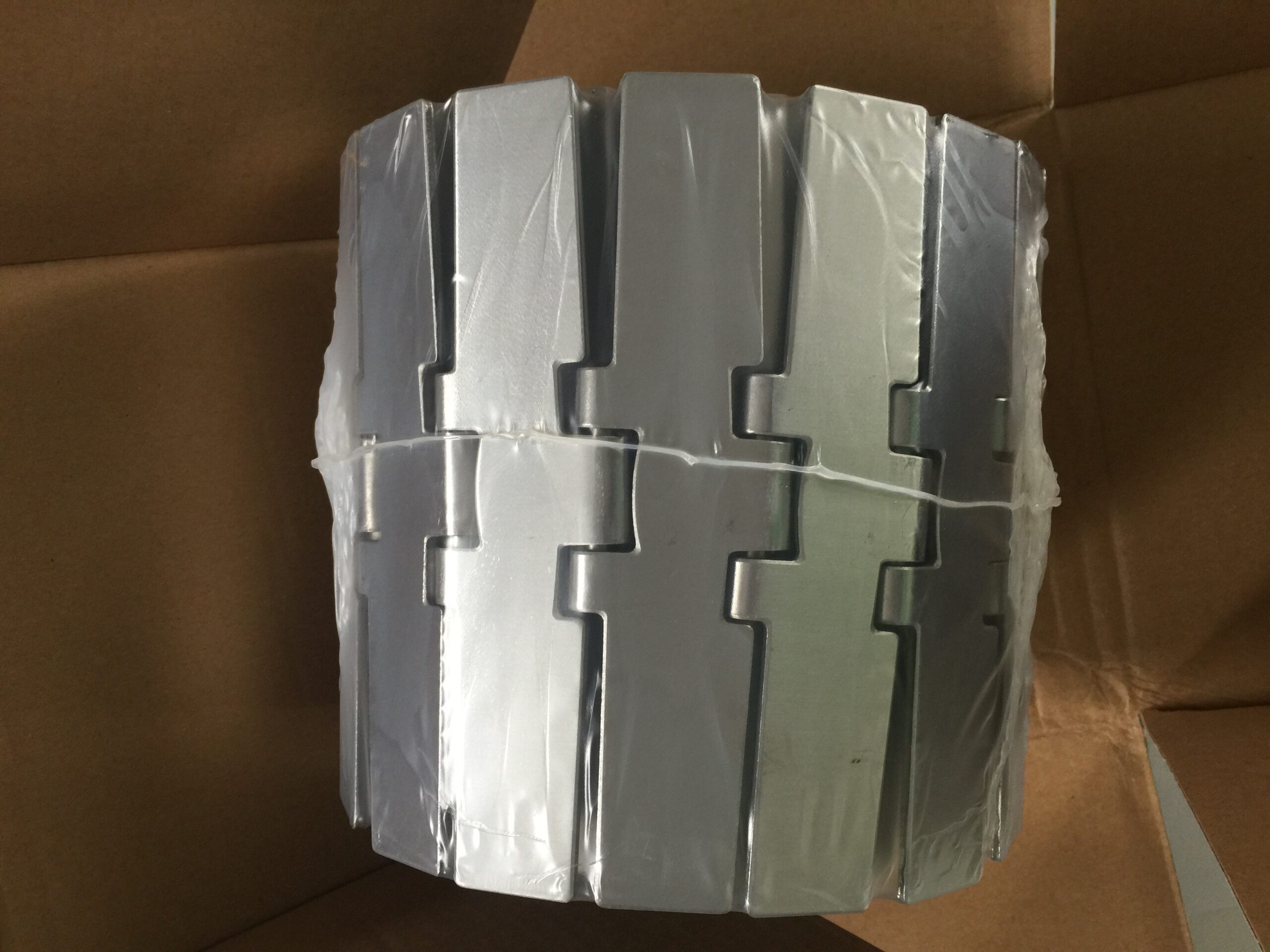

| Packing: 10 feet=3.048 M/box 26pcs/m | ||||||||
Application
widely used in all kinds of conveyor of bottle and heavy load such as metal.
Especially applied to beer industry.
Suggestion: lubricant.
Advantages
Steel and Stainless Steel Flat Top Chains are produced in straight running and side flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
Widely used in all kinds of conveyor of the bottle and heavy load such as metal. Especially applied to the beer industry.
