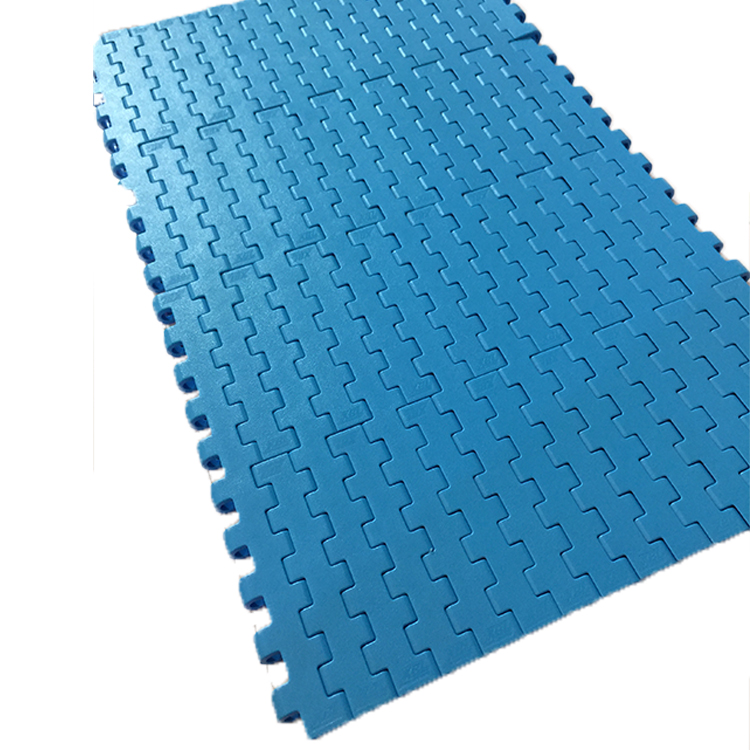

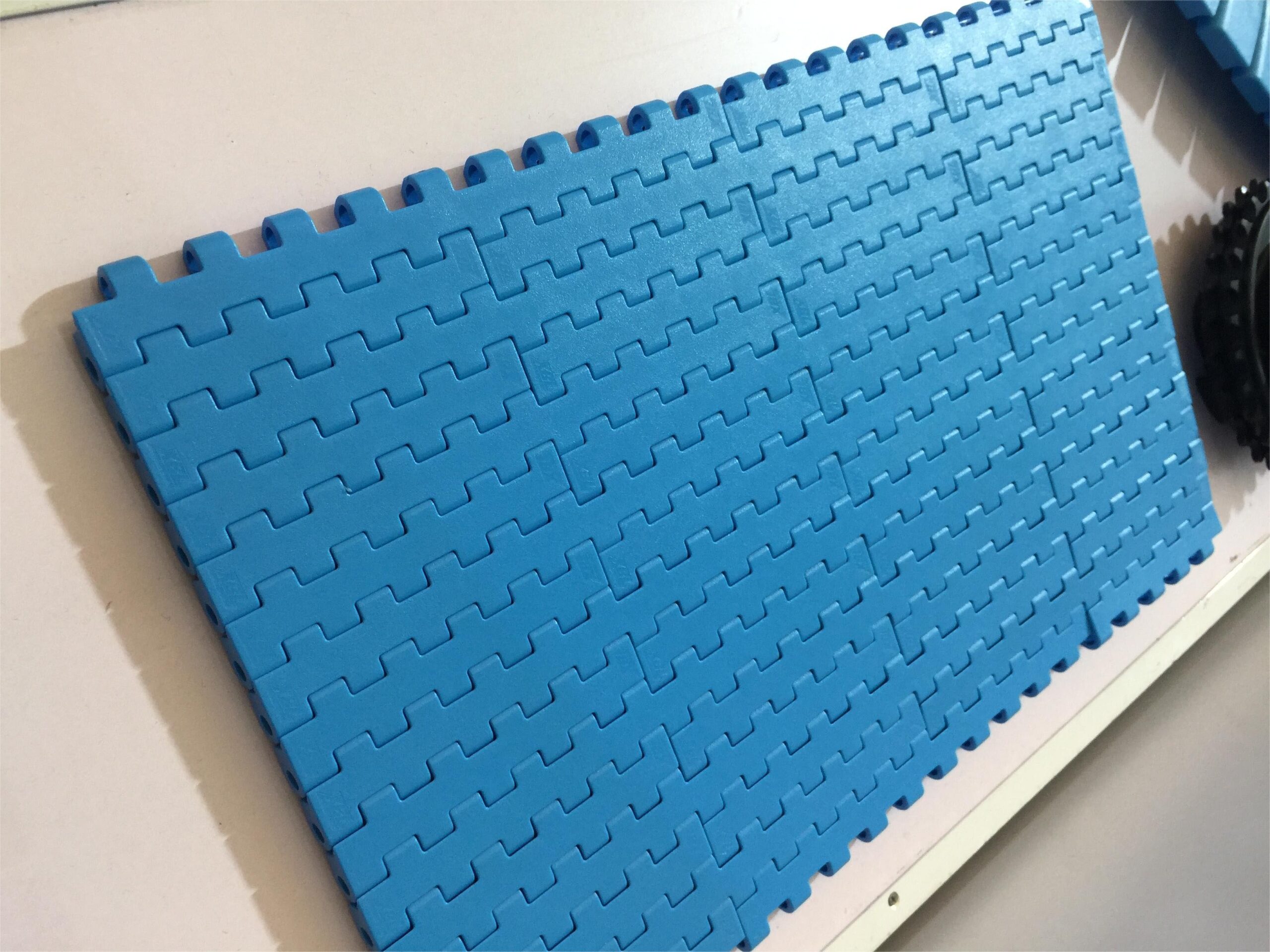

QNB-C Flat Top Modular Plastic Conveyor Belt

Short Description:

QNB-C flat top modular plastic conveyor belt mainly suitable for all kinds of glass bottles ,plastic bottles, carton and packaging conveying.

Product Detail

Product Tags

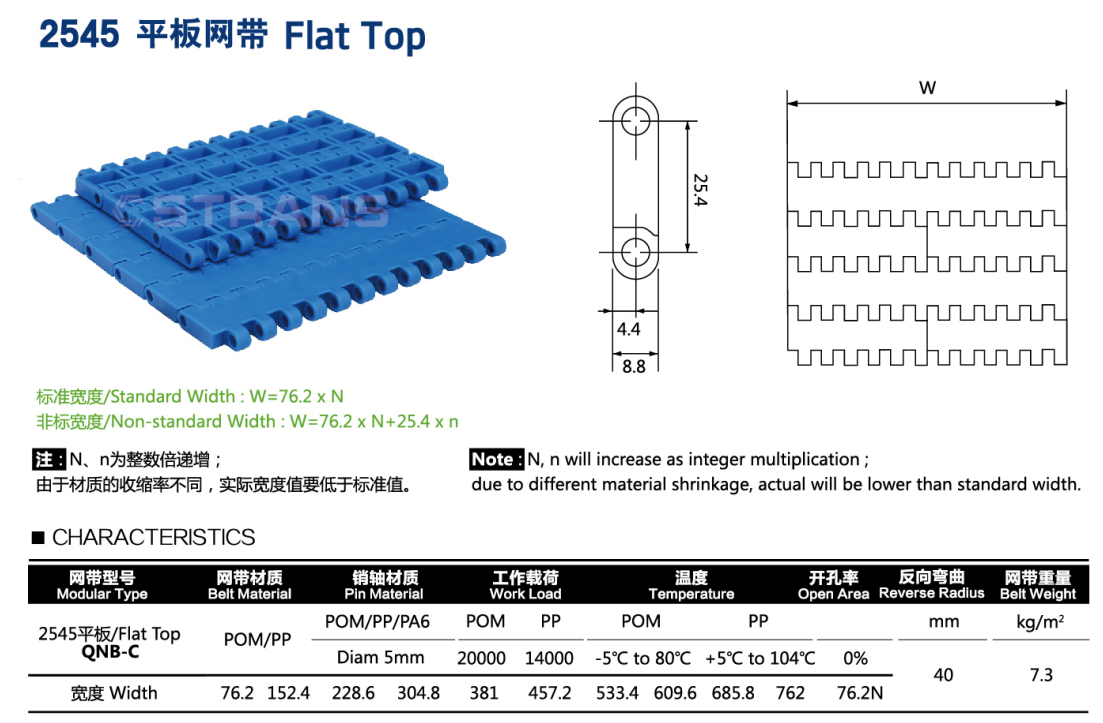

Parameter

图片1-1

Modular Type

QNB-C Flat Top

Standard Width(mm)

76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2N

(N,n will increase as integer multiplication;

due to different material shrinkage,Actual will be lower than standard width)

Non-standard Width

W=76.2*N+25.4*n

Pitch

25.4

Belt Material

POM/PP

Pin Material

POM/PP/PA6

Pin Diameter

5mm

Work Load

POM:20000 PP:14000

Temperature

POM:-5C°~ 80C° PP:+5C°~104C°

Open Area

0%

Reverse Radius(mm)

40

Belt Weight(kg/㎡)

7.3

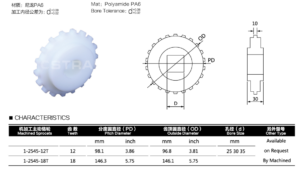

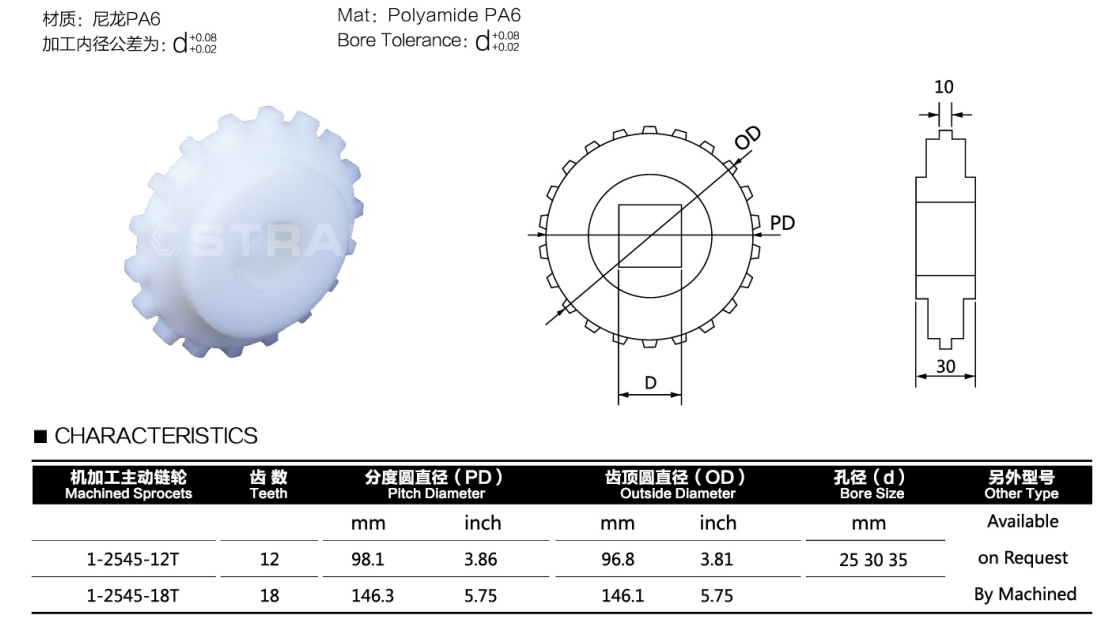

63 Machined Sprockets

图片1-2
Machine

Sprockets

Teeth

Pitch Diametet(mm)

Outside Diameter

Bore Size

Other Type

mm Inch mm Inch mm

Available

on Request

By Machined

1-2545-12T

12

98.1

3.86

96.8 3.81 25 30 35
1-2545-18T

18

146.3

5.75

146.1 5.75 25 30 35

Application

1.Glass bottles

2.Plastic bottles

3.Carton

4.Packing

5.Food

6.Other Industries

2545C

Advantage

1.Easy to assembly and maintain

2.Wear resistance and Oil Resistant

3.Can bear High mechanical strength

4.Hight quality and performance

5.Good after-sale service.

6.Customization is available.

7.Plant direct sale
