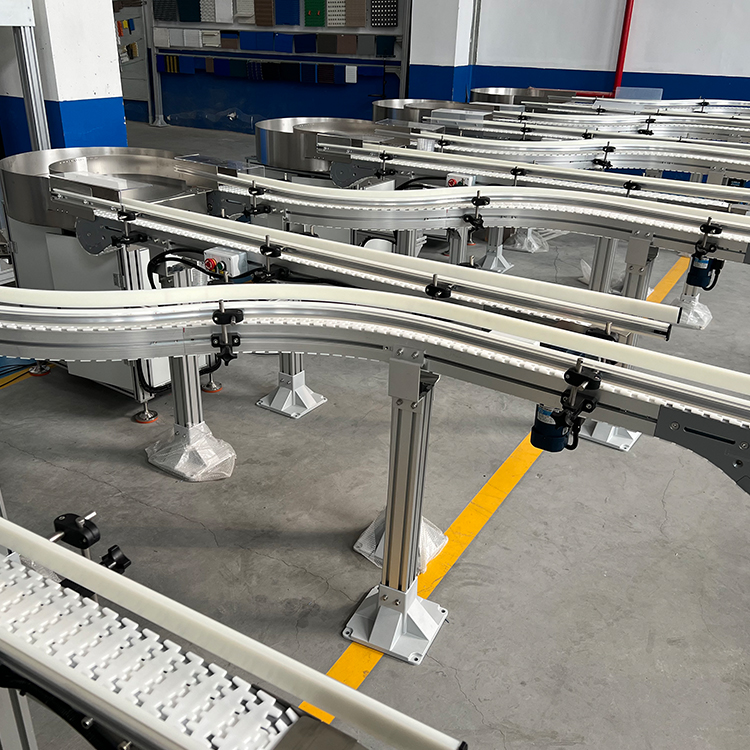

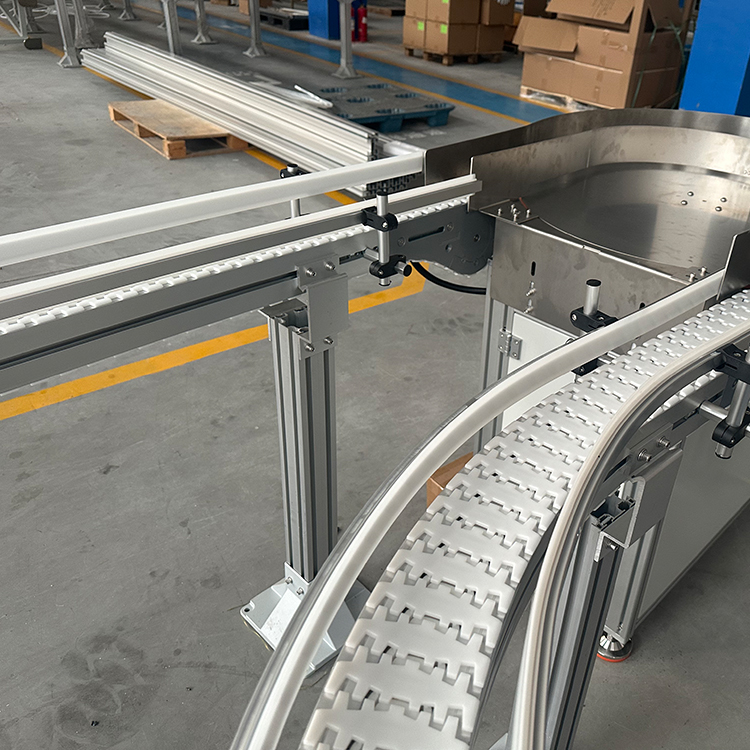

Customized disposable plastic cup turning transition conveyor line
Our disposable plastic cup corner transition conveyor line is specifically designed for the food packaging industry, aiming to solve the problem of smooth direction change in the disposable plastic cup production line. It realizes seamless connection between straight conveyor sections, effectively saves workshop space, and ensures stable, scratch-free transportation of plastic cups. With food-grade materials and intelligent control design, it is widely applicable to the production scenarios of aviation cups, milk tea cups, coffee cups, and other disposable plastic tableware, greatly improving production efficiency and reducing manual intervention risks.
- Smooth Corner Transition, No Cup Jam: Adopts modular belt design with precise angle calibration (90°/180° optional), which can realize stable direction change of plastic cups at high speed. The belt surface is designed with special anti-slip texture, ensuring that the distance between cups is controlled at 3-5mm during transportation, avoiding collision and jamming. The minimum turning radius can be customized according to the cup size, fully adapting to the narrow space layout of the workshop .
-
- Food-Grade Material, Safe & Hygienic: The conveyor belt is made of food-grade PU/PVC material that meets FDA and EU standards, non-toxic, odorless, and resistant to oil and corrosion. The frame is made of 304 stainless steel, which is easy to clean and can withstand high-temperature steam disinfection, completely avoiding secondary pollution of plastic cups during transportation .
- Intelligent Control, Stable Operation: Equipped with PLC control system and photoelectric detection device, it can automatically match the conveying speed with the front and rear equipment (such as cup making machine, packaging machine), with adjustable speed range of 0.5-2m/s. The servo motor drive ensures low noise (≤65dB) and low energy consumption, and the failure rate is less than 0.5% under continuous operation .
- Strong Adaptability, Customizable: It can be customized according to the specifications of disposable plastic cups (caliber 50-150mm, height 50-200mm). The conveying width, turning angle, and height can be adjusted to perfectly match different production lines. It is compatible with various cup types such as round cups, square cups, and tapered cups .
- Easy Maintenance, Long Service Life: The modular belt can be disassembled and replaced individually, reducing maintenance cost and time. The stainless steel frame is treated with anti-rust and anti-corrosion, and the service life of the whole machine is more than 5 years under normal use .
